Note:
Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
Description:

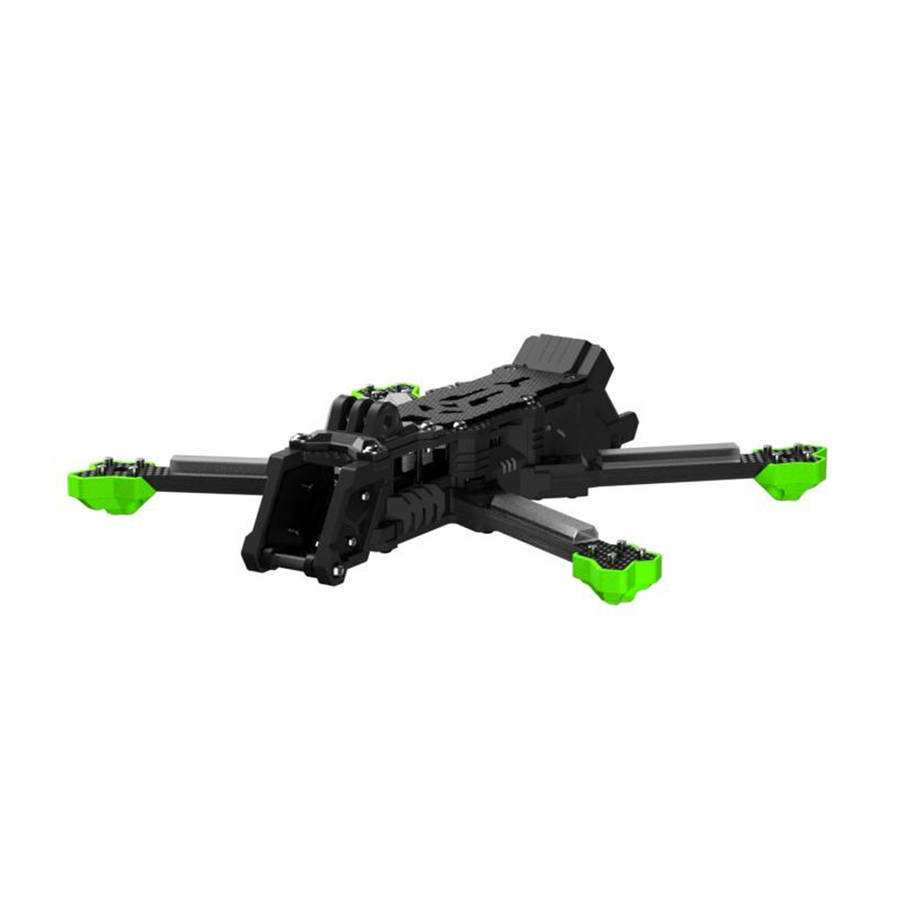

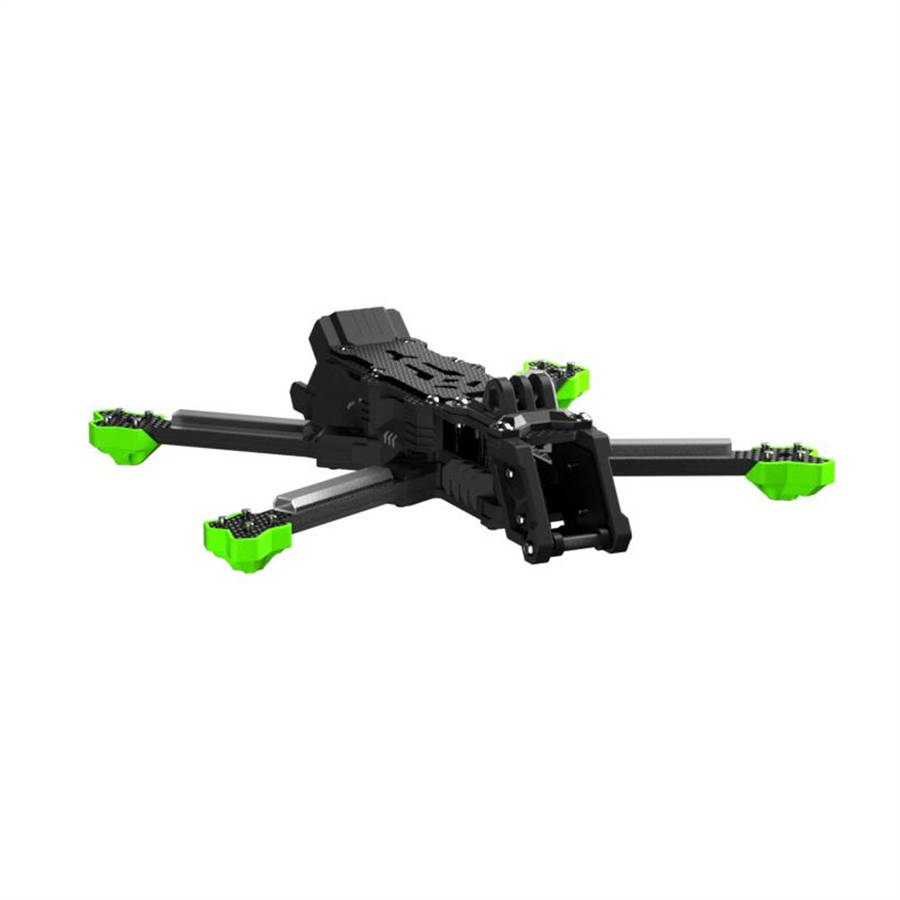

Every upgrade of the Nazgul Evoque F5 V3 is engineered to elevate your flight experience to new heights, featuring six core enhancements that redefine versatility and performance for drone enthusiasts. At its core, the innovative switchable DC/X-frame design stands out as a game-changer—seamlessly adapting to every flight scenario you demand. Opt for the DC geometry when capturing stunning cinematic shots, ensuring zero propeller obstruction for crystal-clear footage, or switch to the agile X geometry to unlock dynamic, high-speed freestyle maneuvers, making it a versatile companion for both creative filming and adrenaline-fueled flights.
Feature:
- DC /X Dual Geometry Flexible Switching
The innovative switchable DC/X-frame design offers unparalleled versatility. Whether you prefer the DC geometry for cinematic shots with no prop in view, or switch to the agile X geometry for dynamic freestyle maneuvers, Nazgul Evoque F5 V3 adapts to all flight scenarios.
- Upgraded Appearance Style Meets Performance
Innovative Fin-Shaped Cooling Channel significantly enhances heat dissipation. Even in hot weather, it quickly disperses heat to ensure stable flight performance.
- Refined Injection-Molded Construction Upgraded Quality
Upgraded from TPU printed parts to full injection-molded components, delivering superior material integrity and refined tactile smoothness.
Specification:
Brand: iFlight
Model: Nazgul Evoque F5 V3
Item Name: 5 Inch 6S DC / X-type Dual Geometry Frame Kit
Frame Wheelbase: 236mm (DeadCat-default) / 239mm (True X-switchable)
Frame Dimension(LxWxH): 230*207*54 mm(DeadCat) / 207*199*54mm(True X)
Arm Thickness: 6mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 3mm
Maximum Flight Stack Height: 25mm
Maximum VTX Height: 13mm
Motor Mounting: 16x16mm /3mm
Flight Stack Mounting: 20*20/3mm
VTX Mounting: 25.5*25.5/2mm
Weight: 256g±10g
Compatibility: DJI O4 Air Unit Pro/ BLITZ Whoop 1.6W VTX/ BLITZ Mini Force 600mW VTX
Recommanded parts:(Not Included):
FC&ESC: Borg Mini F7 60A Stack
VTX&Camera: DJI O4 Pro Air Unit
Motor: XING 2207 motors
Propeller: Nazgul F5 propellers
Battery: 1480mAh 6S LiPo Battery
Package Included:
1 x Evoque F5 V3 Frame Kit
1 x Injection-Molded Set
1 x Screw Bag
2x IPEX to RP-SMA Antenna Pigtails
2 x Anti-slip Battery Pad
2 x Battery Strap
