Vehicle Fitment & Part Details

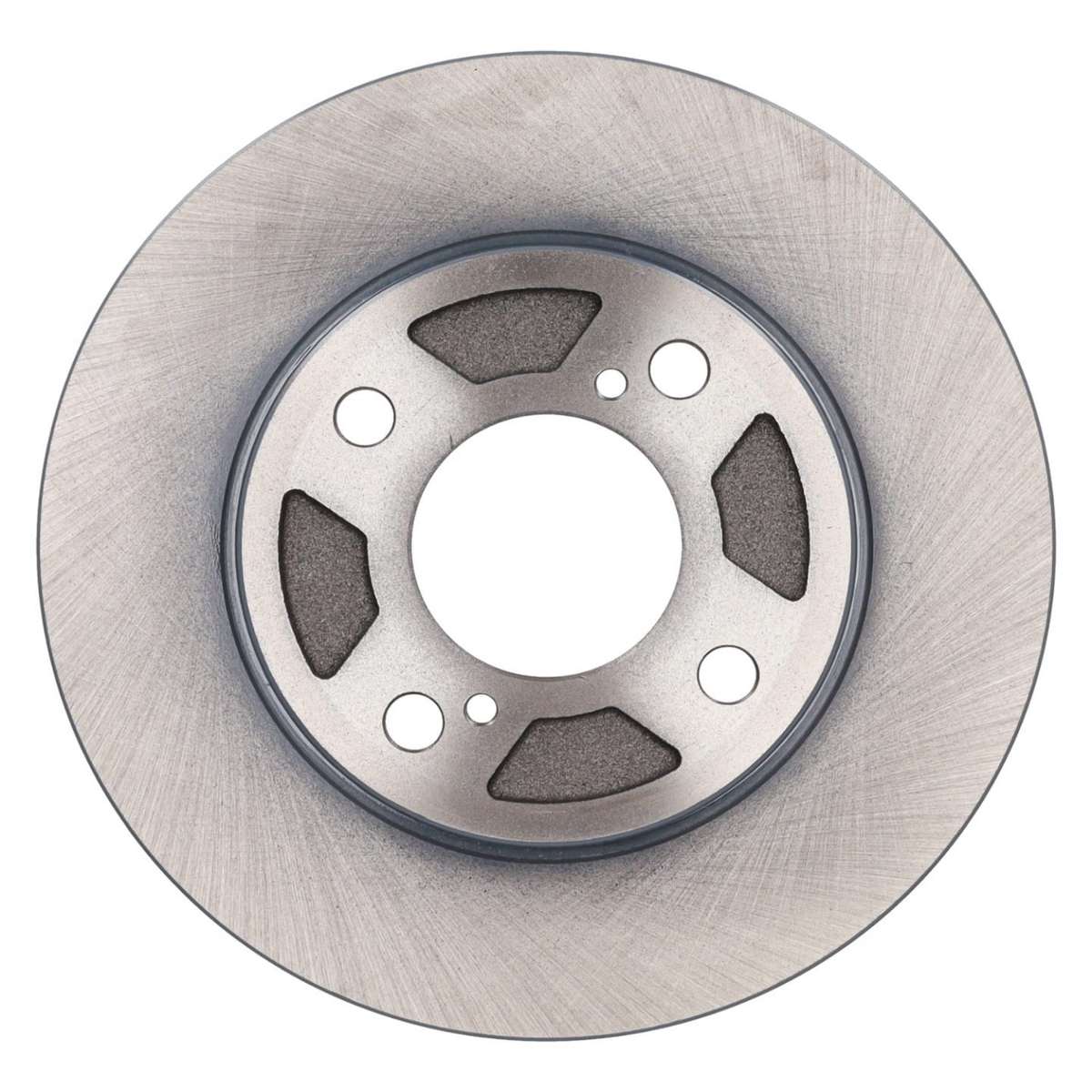

This front brake disc is listed for the Suzuki Swift and carries OE reference 55311 52R00. It is a 231mm internally vented front disc. Confirm compatibility by matching the listed fitment details and any OEM reference numbers supplied. Verify VIN/engine.
Key Details
- SKU
- MAP-100680
- Component
- Brake Disc
- Position
- Front
- OEM References
-
- Alternate OEM Search References
- 5531152R00
- Primary Fitment
- Suzuki Swift V (AZ) 2017 onwards
- Specs
- 231mm outer diameter, 17mm thickness (15mm min), internally vented, 4 x 100mm PCD, 60mm centre bore, coated
Product Specifications
| Specification | Value |
|---|
| Outer Diameter | 231 mm |
|---|
| Disc Thickness (new) | 17 mm |
|---|
| Minimum Thickness | 15 mm |
|---|
| Height | 40 mm |
|---|
| Number of Holes | 4 |
|---|
| Bolt Hole Circle (PCD) | 100 mm |
|---|
| Centre Bore | 60 mm |
|---|
| Disc Type | Internally Vented |
|---|
| Surface | Coated |
|---|
Vehicle Fitment
This front brake disc is listed for 9 applications across the Suzuki Swift V (AZ) range from 2017 onwards, covering the 1.0 and 1.2 petrol variants along with the SHVS and Hybrid mild-hybrid variants, including AllGrip. Use the full table below to confirm model, engine and year range before ordering.
View Full Vehicle Fitment (9 applications)
| Model | Chassis | Engine | Years | Power |
|---|
| Swift 1.0 | A2L310 | K10C-T | 04/2017 onwards | 82kW/111PS |
|---|
| Swift 1.2 | A2L412, ZC83S | K12C | 04/2017 onwards | 66kW/90PS |
|---|
| Swift 1.2 AllGrip | A2L412 | K12C | 04/2017 onwards | 66kW/90PS |
|---|
| Swift 1.0 SHVS | A2L310 | K10C-T | 04/2017 onwards | 82kW/111PS |
|---|
| Swift 1.2 SHVS | A2L412 | K12CS | 04/2017 onwards | 66kW/90PS |
|---|
| Swift 1.2 SHVS AllGrip | A2L412 | K12CS | 04/2017 onwards | 66kW/90PS |
|---|
| Swift 1.2 Hybrid (Mild Hybrid) | A2L412 | K12D | 06/2020 onwards | 61kW/83PS |
|---|
| Swift 1.2 Hybrid (Mild Hybrid) AllGrip | A2L412 | K12D | 06/2020 onwards | 61kW/83PS |
|---|
| Swift 1.2 | ZC83S | K12C | 01/2017 onwards | 67kW/91PS |
|---|
Fitment Notes
- Always match OEM reference number(s) and vehicle details before ordering. Verify VIN/engine.
- This disc is listed for the Suzuki Swift V (AZ) front axle, including the 1.0, 1.2, SHVS and Hybrid variants. It is not listed for earlier Swift generations.
Compatibility Verification Notes
- Confirm the fitted front disc diameter is 231mm before ordering.
- Compare OE reference 55311 52R00 with the number on your original disc.
- Match the model, engine and year range shown in the fitment table using your VIN or engine code.
- This listing is for a single disc; confirm the quantity you require.
Common Questions
Will this front brake disc fit my Suzuki Swift?
This part (MAP-100680) is listed for the fitments shown on this page. Confirm by matching the fitment details. Verify VIN/engine.
What OE reference does this disc cross to?
It is listed against OE reference 55311 52R00. Compare this with your original part before ordering.
How do I confirm fitment if there are multiple variants?
Compare the supplied fitment details, OE reference numbers, original part details and any listed variant information before ordering. Verify VIN/engine.
