Vehicle Fitment & Part Details

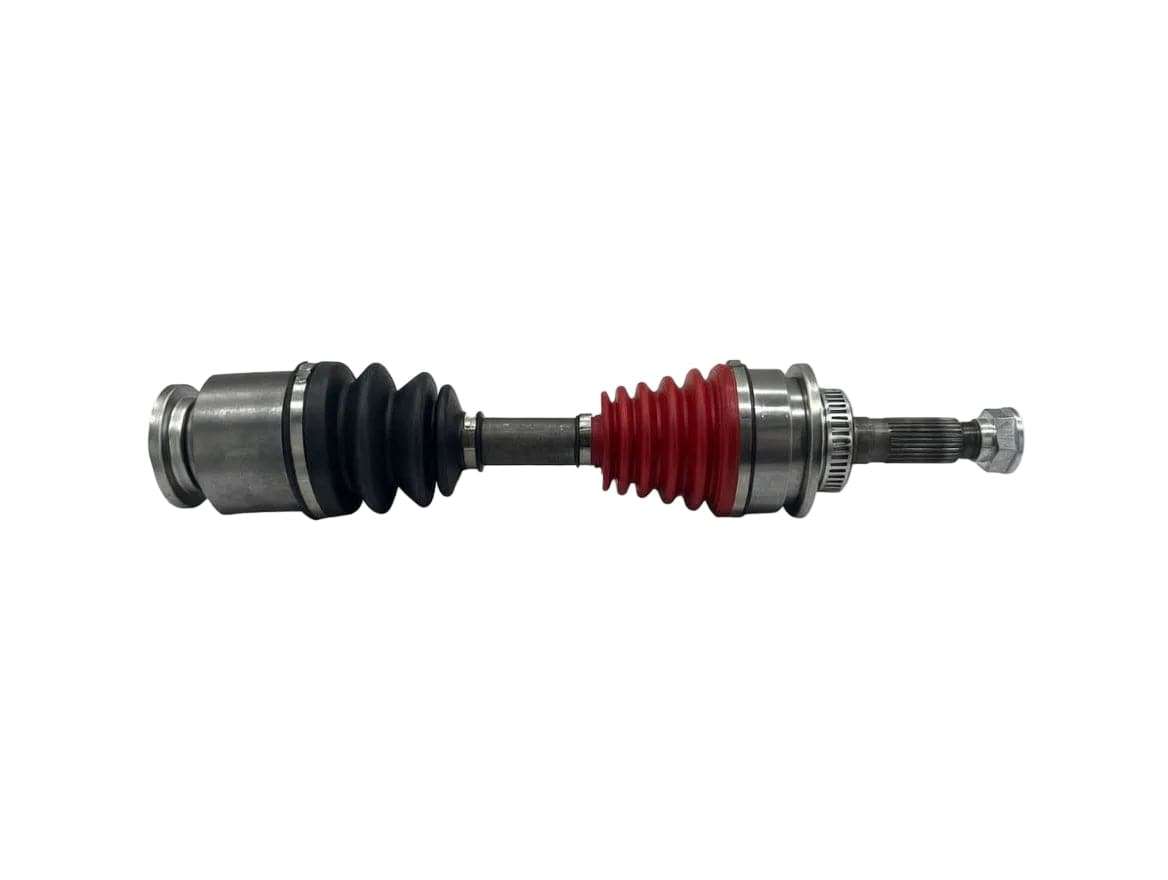

This front left complete driveshaft for the Ford Ranger (ET) is listed under OE reference PP042560X. The driveshaft measures 492 mm in length with 28-tooth external toothing on both the wheel and differential sides. Confirm compatibility by matching the listed fitment details, any OEM reference numbers supplied, and VIN/engine/chassis information where variants exist.
Key Details
- SKU
- DMA612
- Component
- Front Left Complete Driveshaft
- OEM References
- Mazda: PP042560X
- Ford: 6M343B437CA, 1454573, PP042560XA, 6M343B436DA, 1447139, 6M343B437BA, 1447140
- Primary Fitment
- Ford Ranger ET WLAA 2.5 TDCi 4x4 (05/200607/2012)
- Specs
- 492 mm length, 28-tooth wheel side, 28-tooth differential side, 44-tooth ABS ring
Key Benefits
- Cross-references OE numbers for both Mazda (PP042560X) and Ford (6M343B437CA, 1454573, and others) for verification before ordering.
- 492 mm overall length with 28-tooth external toothing on both wheel and differential sides, and a 44-tooth ABS ring.
OEM Reference Numbers
- Mazda: PP042560X
- Ford: 6M343B437CA, 1454573, PP042560XA, 6M343B436DA, 1447139, 6M343B437BA, 1447140
Product Specifications
| Specification | Details |
|---|
| Position | Front Left |
|---|
| Length | 492 mm |
|---|
| External Toothing (Wheel Side) | 28 |
|---|
| External Toothing (Differential Side) | 28 |
|---|
| Number of Teeth, ABS Ring | 44 |
|---|
Vehicle Fitment
| Make | Model | Chassis | Engine | Power | Years |
|---|
| Ford | Ranger | ET | WLAA 2.5 TDCi 4x4 | 105kW / 143PS | 05/200607/2012 |
| Ford | Ranger | ET | WEC; MD30DITC 3.0 TDCi 4x4 | 115kW / 156PS | 05/200607/2012 |
| Mazda | BT-50 Pickup | CD, UN | WLAA 2.5 MRZ-CD 4x4 | 105kW / 143PS | 12/200612/2015 |
| Mazda | BT-50 Pickup | CD, UN | WEAT 3.0 CDVi 4x4 | 115kW / 156PS | 10/200612/2015 |
Fitment Notes
- Always match OEM reference number(s) and vehicle details before ordering. Confirm exact fitment using VIN, engine code, or chassis number if multiple variants exist.
Installation & Maintenance Tips
- Compare the new driveshaft to the removed unit before installation to confirm overall length, spline count, and ABS ring tooth count match.
- Inspect the hub bearing, differential seal, and related boots or clamps before fitting the new driveshaft.
- Clean the differential seal bore and hub spline area before installation.
- Replace one-time-use circlips, retainers, or hub nuts where applicable.
- After installation, torque the hub nut to specification and confirm smooth rotation and ABS sensor operation.
Common Questions
Does this front left complete driveshaft fit my Ford Ranger?
This part (DMA612) is listed for the fitments shown on this page. Confirm by matching the fitment details and verifying VIN/engine/chassis information where variants exist.
What OEM part numbers does this cross-reference?
Listed cross-references: PP042560X, 6M343B437CA, 1454573, PP042560XA, 6M343B436DA, 1447139, 6M343B437BA, 1447140. Match at least one OEM reference to your original part before ordering.
How do I confirm fitment if there are multiple variants?
Use VIN, engine code, and chassis/platform details and compare them to the fitment section above. If unsure, request fitment assistance before ordering.
