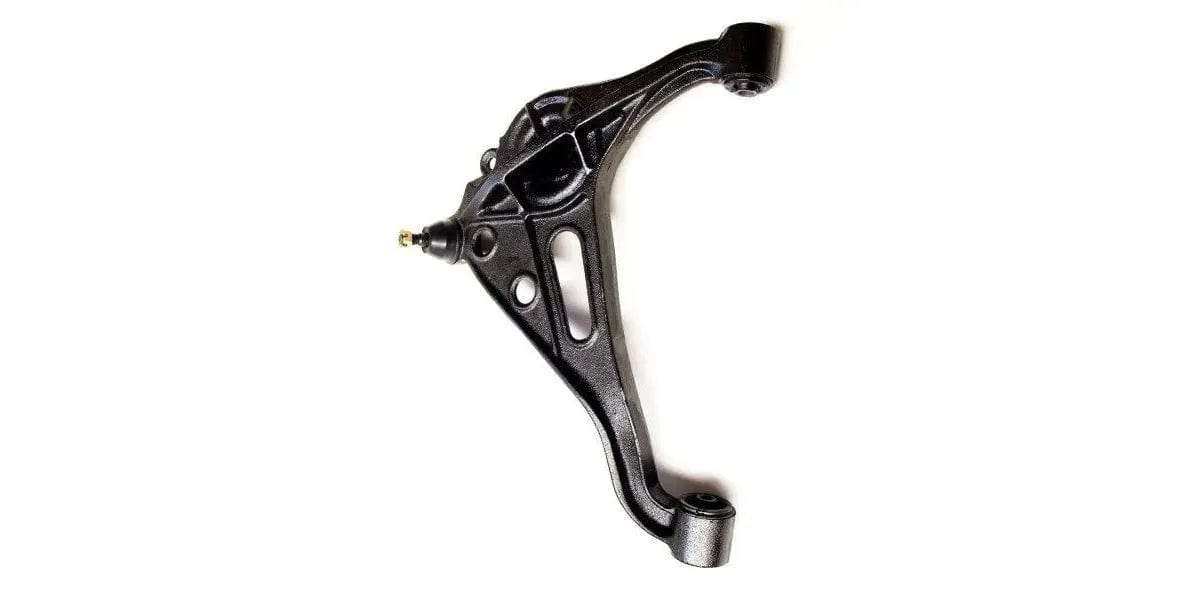

Front Left Lower Control Arm for Suzuki Grand Vitara I - MAP-100032

Front Left Lower Control Arm for Suzuki Grand Vitara I - MAP-100032

New 10 available
R2,649.00
Shipping
This product qualifies for free shipping in South Africa, using one of our trusted couriers.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 4 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
MAP-100032
Bob Shop ID
675936250

Vehicle Fitment & Part Details

This front left lower control arm is listed for the Suzuki Grand Vitara I (FT, HT) with OE reference 45202-65D00. 100 mm overall height, 16 mm fitted diameter, M14x1.5 external thread. Confirm compatibility by matching the listed fitment details, OEM reference numbers, and VIN/engine/chassis information where variants exist.

Key Details

SKU
MAP-100032
Component
Lower Control Arm
Position
Front Left
Primary Fitment
Suzuki Grand Vitara I (FT, HT) G16B Petrol 1.6 4x4 (1998-2003)
Specs
100 mm overall height, 16 mm fitted diameter, M14x1.5 thread, 12 / 14 mm inner diameters

OEM Reference Numbers

  • Suzuki: 41601-75F50, 41602-65D00, 41602-65D10, 41602-67D00, 41602-68D00, 41602-75F50, 45200-60860, 45202-65D00, 45202-65D01, 45202-65L01, 45202-67D00, 45202-67D01

Product Specifications

SpecificationValue
Overall Height100 mm
Fitted Diameter16 mm
External ThreadM14x1.5
Inner Diameter12 mm
Inner Diameter 114 mm

Vehicle Fitment

Includes 18 supplied applications.

View Full Vehicle Fitment (18 applications)
ModelChassisVariantEngine CodePowerYears
Grand Vitara IFT, HT1.6 4x4 (SQ416)G16B69kW/94PS1998-2003
Grand Vitara IFT, HT1.6 4x4 (SQ416)G16B71kW/97PS2003-2005
Grand Vitara IFT, HT1.6 4x4 (SQ416)G16B73kW/99PS2000-2002
Grand Vitara IFT, HT2.0 4x4 (TA52, TL52, SQ420)J20A94kW/128PS1998-2003
Grand Vitara IFT, HT2.0 4x4 (SQ 420)J20A103kW/140PS1998-2005
Grand Vitara IFT, HT2.0 4x4 (SQ 420)J20A97kW/132PS1998-2000
Grand Vitara IFT, HT2.5 V6 24V 4x4 (TD62, SQ625)H 25 A106kW/144PS1998-2003
Grand Vitara IFT, HT2.5 V6 24V 4x4 (SQ625)H 25 A116kW/158PS2001-2003
Grand Vitara IFT, HT2.7 4x4 (JA627, SQ627W2)H 27 A127kW/173PS2001-2003
Grand Vitara IFT, HT2.7 4x4 (TX92, JA627)H 27 A135kW/184PS2003
Grand Vitara IFT, HT2.0 TD 4x4 (SQ420D)RF64kW/87PS1998-2003
Grand Vitara IFT, HT2.0 HDI 110 16V 4x4RHW80kW/109PS2001-2005
Grand Vitara IFT, HT2.0 TD 4x4 (SQ 420D)RFM63kW/86PS2000-2005
Grand Vitara IFT, HT2.0 HDI 110 4x4RHZ80kW/109PS2001-2003
Grand Vitara IFT, HT2.7 (JA 627)H 27 A127kW/173PS2001-2003
Grand Vitara IFT, HT2.7 (JA 627)H 27 A135kW/184PS2003-2006
Grand Vitara I Open Off-RoadGT1.6 4x4 (SQ416)G16B69kW/94PS1998-2003
Grand Vitara I Open Off-RoadGT2.0 4x4 (SQ420)J20A94kW/128PS1998-2003

Fitment Notes

  • Always match OEM reference number(s) and vehicle details before ordering. Confirm exact fitment using VIN, engine code, or chassis number if multiple variants exist.

Installation / Use / Maintenance Tips

  • Compare the new control arm to the removed unit before installation to confirm mounting geometry, bush diameters, and ball joint thread match.
  • Inspect related bushes, ball joints, and fasteners for wear before fitting the new arm.
  • Tighten all fasteners to the vehicle manufacturer's specified torque values with the suspension loaded.
  • Check wheel alignment after installation where suspension geometry may be affected.

Common Questions

Will this front left lower control arm fit my Suzuki Grand Vitara?
This part (MAP-100032) is listed for the fitments shown on this page. Confirm by matching the fitmen...
