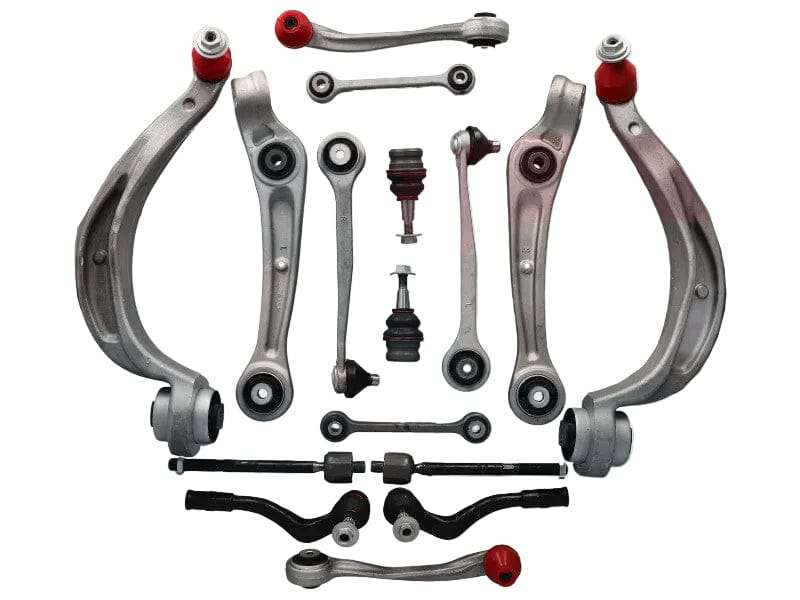

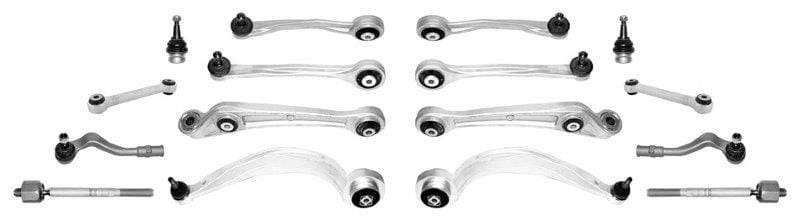

Front Suspension Kit for Audi A4 B8/B9 2008-on - MAP-100049 Front Suspension Kit for Audi A4 B8/B9 2008-on - MAP-100049
Front Suspension Kit for Audi A4 B8/B9 2008-on - MAP-100049 Front Suspension Kit for Audi A4 B8/B9 2008-on - MAP-100049

Front Suspension Kit for Audi A4 B8/B9 2008-on - MAP-100049

New 10 available
R9,479.00
Shipping
This product qualifies for free shipping in South Africa, using one of our trusted couriers.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 4 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Modern Auto Parts3372
98.16 % Positive ratings
Buyer protection
How you're covered
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
MAP-100049
Bob Shop ID
669249908

Vehicle Fitment & Part Details

This complete front suspension kit (MAP-100049) is listed for the Audi A4 B8 / B9 (2008-onward), covering 1.4 / 1.8 / 2.0 TFSI petrol, 2.0 / 3.0 TDI diesel, and RS4 / Allroad variants, with kit-level VAG OE reference 8K0407505A-P. The kit contains 13 components for a complete front-end rebuild including rack ends, tie rod ends, ball joints, upper and lower control arms, and stabiliser links. OEM-level quality, guaranteed for 12 months. Confirm compatibility by matching the listed OEM reference numbers, engine code, model year, and VIN/chassis information where variants exist.

Key Details

SKU
MAP-100049
Component
Front Suspension Kit
Position
Front Axle
Configuration
Kit (13 pieces)
Quality
OEM-level quality, 12-month guarantee
Primary Fitment
Audi A4 B8 / B9 (2008-onward)

Kit Component Breakdown

ComponentQtyPositionSpecs
Rack End2At Tie Rod243mm length, M16x1.5 / M16x1.5
Tie Rod End Set1 setFront Axle Outer206mm length, ball pin M12x1.5, housing M16x1.5, cone Ø14.7mm / Ø19mm
Ball Joint2Front Axle LowerCone 21.8mm / 13.8mm, M12x1.5 thread
Upper Control Arm (Front)2Front Axle Left & Right268mm length, ball pin Ø16, bush 40mm length, inner bush Ø10.2mm
Upper Control Arm (Rear)2Front Axle Left & Right235.6mm length, ball pin Ø16, bush 40mm length, inner bush Ø10.2mm
Lower Control Arm (Front)2Front Axle Left & Right360.7mm length, cone Ø13.8mm / Ø20.8mm, bush 54.9mm length, inner bush Ø12.2mm
Lower Control Arm (Rear)2Front Axle Left & Right420.7mm length, ball pin M14x1.5, cone Ø16.9mm / Ø21.5mm, bush 80mm length, inner bush Ø12.2mm
Stabiliser Link2Front Axle Left & Right170mm length, bush 32mm length, inner bush Ø10.9mm

OEM Reference Numbers

Kit-level OEM reference: VAG 8K0407505A-P

This kit cross-references the following VAG component-level OEM numbers:

BrandOEM Numbers
VAG8K0407505A, 8K0407505AP, 8K0407505N, 8KD407505, 8K0407506A, 8K0407506N, 8KD407506, 8K0407509A, 8K0407509N, 8KD407509, 8K0407510A, 8K0407510N, 8KD407510, 8K0407151B, 8K0407151C, 8K0407151D, 8K0407152B, 8K0407152C, 8K0407152D, 8K0407693T, 8K0407694T, 8K0407689D, 8K0407689E, 8K0407689F, 8K0407689G, 8K0411317A, 8K0411317C, 8K0411317E, 4H0411317A, 4H0411317C, 8K0422817A, 8K0422817B, 8K0422818A, 8K0422818B, 4H0422810, 4H0422810A, 8J0423810

Vehicle Fitment

ModelVariantEngine CodeYears
Audi A41.4 TFSICVNA2015-
Audi A41.8 TFSICABB / CDHB2008-2012
Audi A42.0 TDICAGB / CJCB2008-2012
Audi A42.0 TDICAGA / CJCA2008-2015
Audi A42.0 TDICAHA2008-2012
Audi A4 Allroad2.0 TDICGLC2012-2016
Audi A42.0 TDIDESA / DETA2016-
Audi A42.0 TFSICAEA / CDNB2008-2012
Audi A42.0 TFSICVKB / DBPA2015-
Audi A42.0 TFSICDNC / CAEB2008-2012
Audi A42.0 TFSICNCD2013-2015
Audi A4 Allroad2.0 TFSICNCD2013-2016
Audi A43.0 TDI V6CCWA / CAPA2008-2012
Audi A43.2 FSI Quattro V6CALA2008
Audi A4 Avant RS4 QuattroRS4CFSA2012-2015

Fitment Notes

  • Always match OEM reference number(s), engine code, and vehicle details before ordering. Confirm exact fitment using VIN, engine code, or chassis number if multiple variants exist.
  • This kit covers the Audi A4 B8 / B9 platforms including saloon, Avant, Allroad, and RS4 variants from 2008 onward.
  • OEM-level quality kit, guaranteed for 12 months from date of purchase.

Installation / Use / Maintenance Tips

  • Support the front of the vehicle securely on jack stands and remove both front wheels before starting work.
  • Label each arm position carefully during removal this multi-link front end has distinct left/right and upper/lower arms.
  • Inspect related bushes, ball joint boots, and mounting hardware before fitting the new components.
  • Replace all arms at the same time for balanced handling and even tyre wear.
  • Torque all fasteners to manufacturer specifications. A full four-wheel alignment is essential after fitting.

Common Questions

Will this front suspension kit fit my Audi A4?
This kit (MAP-100049) is listed for the fitments shown on this page. Confirm by matching the OEM reference numbers, engine code, model year, and verifying VIN/chassis information where variants exist.

How many pieces are in this kit?
13 components in total: 2 rack ends, a tie rod end set, 2 lower ball joints, 2 upper control arms (front position), 2 upper control arms (re...
