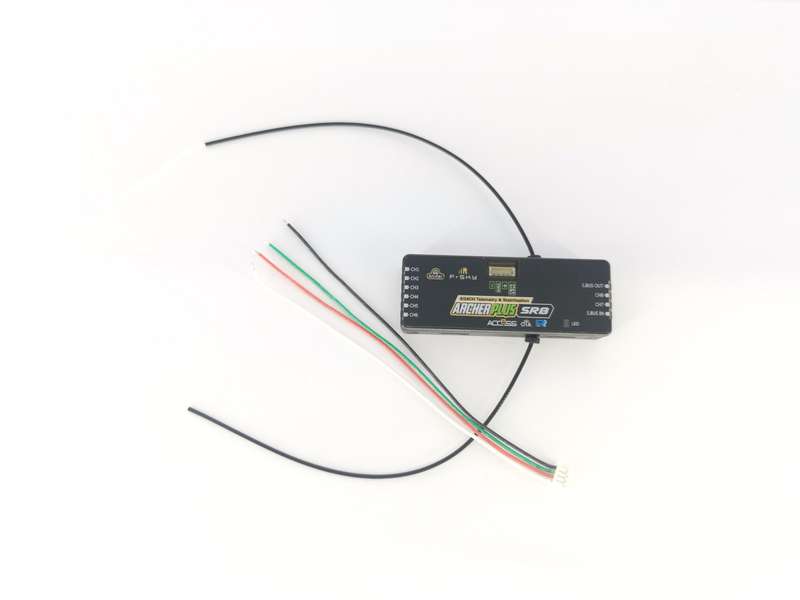

FrSky 2.4GHz Archer Plus SR8

The Archer SR8 PRO are gyro-stabilized receivers with a built-in 3-axis gyroscope and 3-axis accelerometer, they have 8 high-precision PWM channel outputs and features multiple flight modes and configuration methods. They support full-range signal strength with dual detachable antennas it guarantees optimal antenna-reception and maximum range. In addition to all this, the SR8 PRO can also be used as a redundancy receiver along with any other FrSky ACCESS capable receiver equipped with an SBUS port.

All of the Archer receivers are hyper-matched with the ACCESS protocol. They not only feature wireless firmware upgrades and increased range and telemetry performance, the SR8 Pro now supports more functions like configurable telemetry power, S.Port/F.Port switching and FLR output. Additional valuable features are under development to unlock the true potential of the ACCESS protocol.

Download Manual & Firmware Here: https://www.frsky-rc.com/product/archer-sr8-pro/

FEATURES

• ACCESS protocol with Over The Air (OTA)
• Built-in 3-axis gyroscope and 3-axis accelerometer sensor
• Multiple flight modes and configuration methods (LUA & Freelink)
• Supports signal redundancy (SBUS In)
• * Different from ACCST SXR receivers, the SBUS IN signal can be adjusted through the STAB module of SR8 PRO when the STAB function is enabled.
• Full control range with telemetry
• S.Port / F.Port / F.Port 2.0
• Anti-interference in spark-ignition
• External battery / device voltage detection

SPECIFICATIONS

• Dimension: 47*26*15mm (L*W*H)
• Weight: 15g
• 16/24 Configurable SBUS Channels
• 8 High-precision PWM Channels
• Operating Voltage Range: 3.5 -10V
• Operating Current: 55mA@5V
• Control Range: Full range* with telemetry
• (*Full Range: ＞2km, range may vary based on local conditions.)
• Voltage Measurement Range via AIN2 (External device): 0-36V
• Compatibility: All FrSky ACCESS transmitters
