FrSky R9 MM-FC-OTA 16CH ACCESS 900MHz Long Range RC Mini Receiver Support Wire... (VERSION1: 915MHZ)

SELECTED OPTION:
VERSION1: 915MHZ

FrSky R9 MM-FC-OTA 16CH ACCESS 900MHz Long Range RC Mini Receiver Support Wireless Upgrade Firmware Inverted S.Port RSSI Output?

Overview:

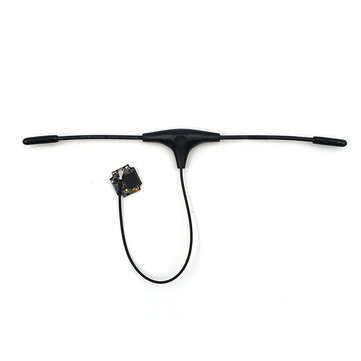

FrSky R9 MM-FC-OTA is the ultra mini 900MHz receiver which can be easily connected with our dedicated FrSky flight controller boards using a flexible flat cable. The R9 MM-FC-OTA supports wireless over the air firmware updates, and features an inverted S.Port output that makes it compatible with more devices. In addition, it can also be used as a standalone receiver.

This receiver works compatible with the new release R9M Lite Pro module,and the other 900MHz modules will also be supported when the ACCESS firmware is available.

Specification:
Brand:?FrSky
Item Name: R9 MM-FC-OTA Receiver
Dimension: 12.4*12.8*3mm (L??W??H)
Weight: 0.6g (without antenna)
Number of channels:
--Non-LBT Version: 16CH (Telemetry)
--LBT-8CH Version: 8CH (Telemetry)
--LBT-16CH Version: 16CH (Telemetry) / 16CH (No Telemetry)
Operating Voltage Range: DC 4V~6V
Operating Current: 100mA@5V
Operating Range: Up to 10km or above
Compatibility: R9 series module (ACCESS protocol)

Feature :
915MHz (Non-LBT Version) / 868MHz (LBT Version)
Mini size and super lightweight
Supports OTA firmware update
Supports firmware version check
F.Port enabled and supported telemetry data transmission
Battery voltage detection supported
Low latency and high precision

Package Included:
1 x R9 MM-FC-OTA Receiver
