FrSky R9M 2019 900MHz Long Range Transmitter Module and R9 SX OTA ACCESS 6/16CH Long Range Enhanced Receiver Combo with Mounted Super 8 and T antenna
Specifications:
Brand Name: FrSky
Item Name: R9M Module and R9 SX Receiver
Weight: 100g
Version: FCC/LBT Version (Optional)

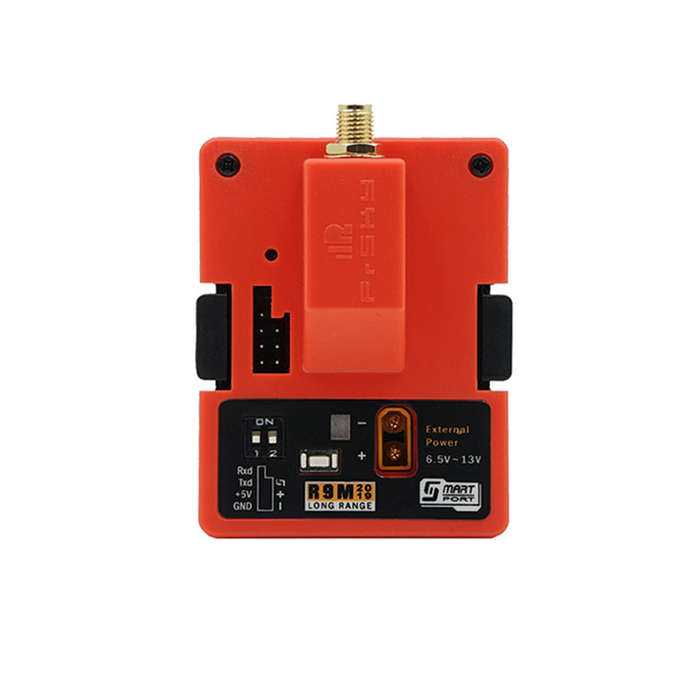

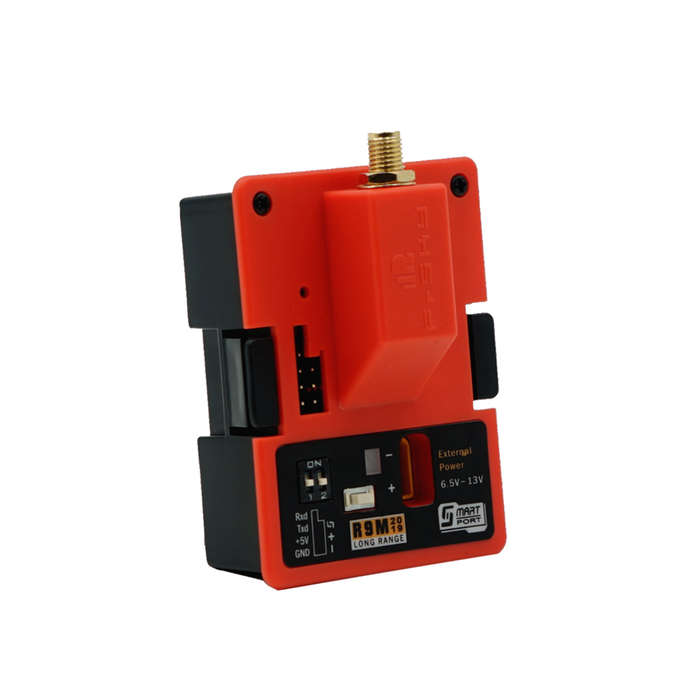

FrSky 900MHz R9M 2019 Long Range Module System
OVERVIEW:
FrSky R9 and R9M radio control system is the first FrSky long-range system that works in the frequency of 900MHz. The R9M module offers 4 switchable RF power outputs so you can choose the appropriate power for different flight situations. Compared to another FrSky 2.4GHz long range receiver like the L9R, the R9 receiver has a longer operating range up to 10KM and above. Moreover, the R9 is also a redundancy receiver that can connect to another receiver to ensure the security of your aircraft.
Description: Compatibility: R9 series Vin Voltage Range: 6.5V-13V External Power Supply: 6.5V~13V? Telemetry Interface: Smart Port Upgrade Interface: Smart Port Modulations: PXX or CPPM (auto-detected)
Features: - 900MHz/868MHz working mode - Long-range, low latency and high precision RC system - 4 Optional RF power (Non-EU Version) - Telemetry mode???25mW???/non-telemetry mode???200mW / 500mW??? (EU Version) - RF Power (Flex): 10mW/ 100mW/ 500mW/ 1W (telemetry supported for all levels) - Smart Port enabled and support telemetry data transmission

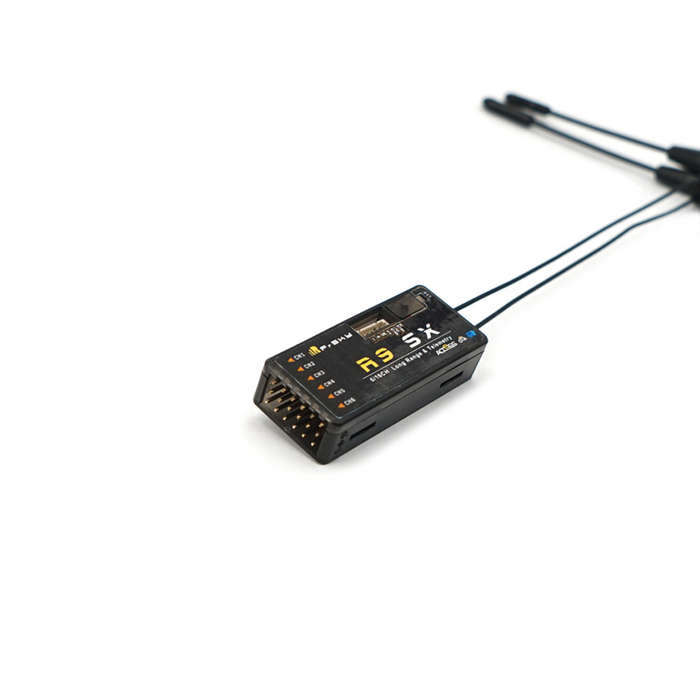

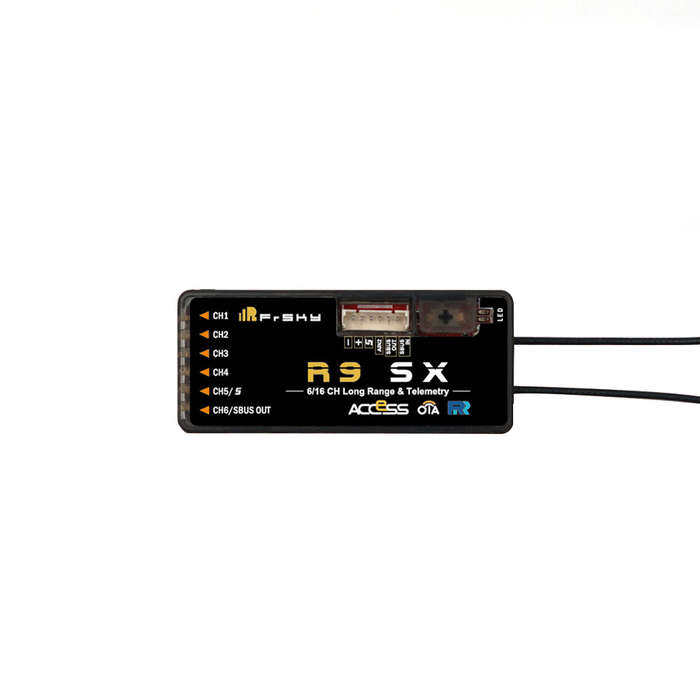

Description: Frequency: 868MHz / 915MHz Dimension: 36*17*7mm / 47.5*20.5*11mm (including case and pins) Weight: 8.8g / 13g (including case and pins) Numbers of Channel: 6 PWM / 16 SBUS (CH16 outputs RSSI) Operating Voltage: DC 3.5V~12.6V Operating Current: 100mA@5V Compatibility: R9M Lite/ R9M Lite Pro / R9M 2019 with ACCESS firmware
Features: - ACCESS protocol and supports OTA functions - 900MHz/868MHz long-range with low latency - Enhanced and durable design - 6 standard servo connectors (default PWM channel) - Switchable CH5/CH6 into S.Port/SBUS Output channels - Support S.Port / F.Port (Configurable in OpenTX / FrOS menu) - Signal redundancy function - External battery detection - Detachable Ipex1 connector antenna

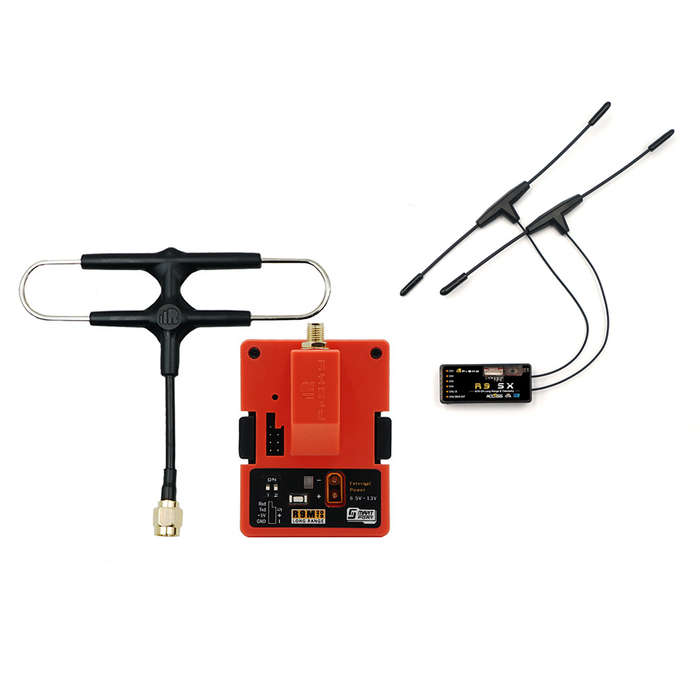

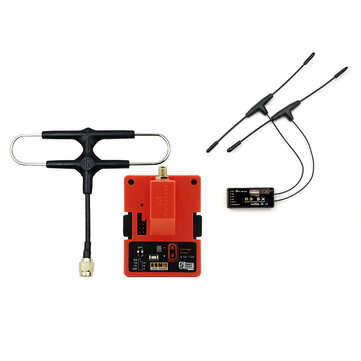

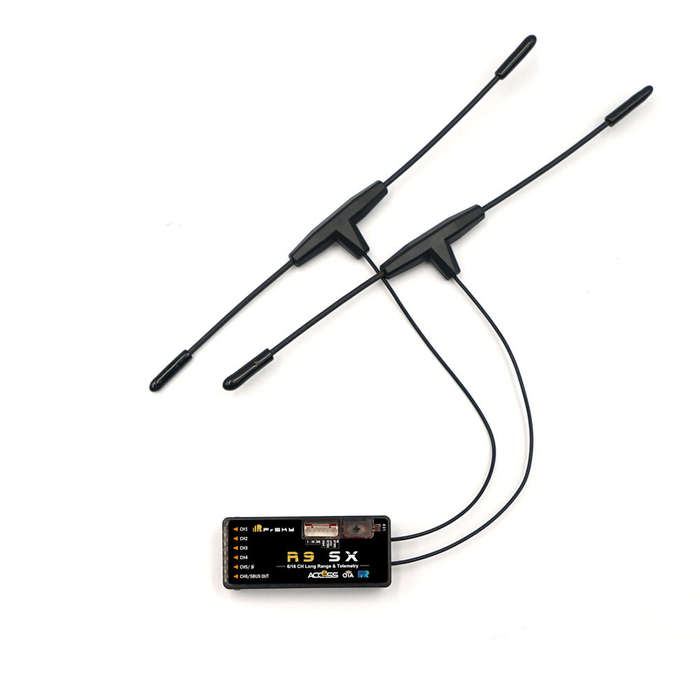

Package Included: 1 x? R9M 2019 Module with mounted Super 8 antenna 1 x? R9 SX OTA with mounted Ipex4 T antenna
