FrSky S6R 2.4G 6CH ACCST Receiver With 3-Axis Stabilization And Smart Port TelemetryFrSky has combined the popular FrSky receiver technology with a super stable 3-axis system for fixed wing aircraft. The S6R is based on the STM32 platform, with both receiver and flight control functions. The S6R includes a three-axis gyroscope and three-axis accelerometer sensor module, with settings that are programmable via FrSky radios or the PC configuration tool (with FrSky STK). Besides six-channel receiver function, the S6R also has stability augmentation, automatic level, crane, sideward flight, and shutdown functions of conventional airfoils. Delta wing (flying wing) and V-tail models only support stability augmentation, automatic level and shutdown functions.
Description:
Brand Name: FrSky
Item Name: S6R 2.4G 6CH ACCST ReceiverCompatibility :
FrSky Taranis X9D Plus/X9E/Horus X12S/XJT in D16 mode
S6R-EU only works with FrSky Taranis X9D Plus-EU/X9E-EU/Horus X12S-EU/XJT-EU in D16 mode
Model: 6CH receiver with buil-in 3-axis gyro and 3-axis acceleration
Dimension: 47.42*23.84*14.7mm(L*W*H)
Weight : 12.1g
Operating Range: full range
Operating Voltage Range: 4.0~10V
Operating Current : 100mA@5V
Number of Channels : 6CH (1~6CH from conventional channel outputs)
Measurement Range: ±4gFeatures:
* Built-in 3-axis gyro and 3-axis accelerometer sensor module
* Has RSSI PWM output (0~3.3V) onboard
* Built-in battery voltage sensor
* Smart Port enabled* Fail safe
* Small and lightweight (only 12.1g)
* Wide voltage range (4~10V)
* Firmware upgradeable
FrSky S6R 2.4G 6CH ACCST Receiver Manual, Click Here Package Included:

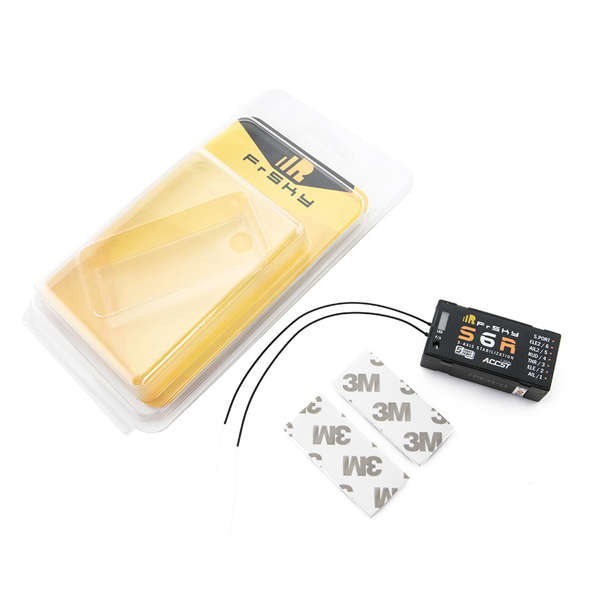

1X FrSky S6R 2.4G 6CH ACCST Receiver
