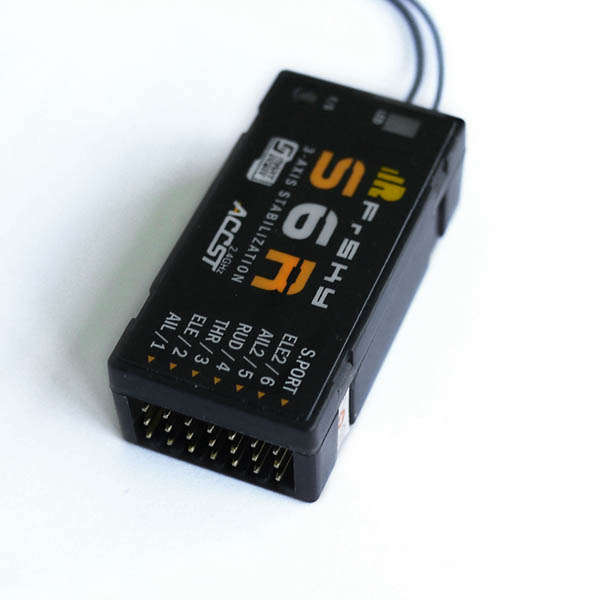

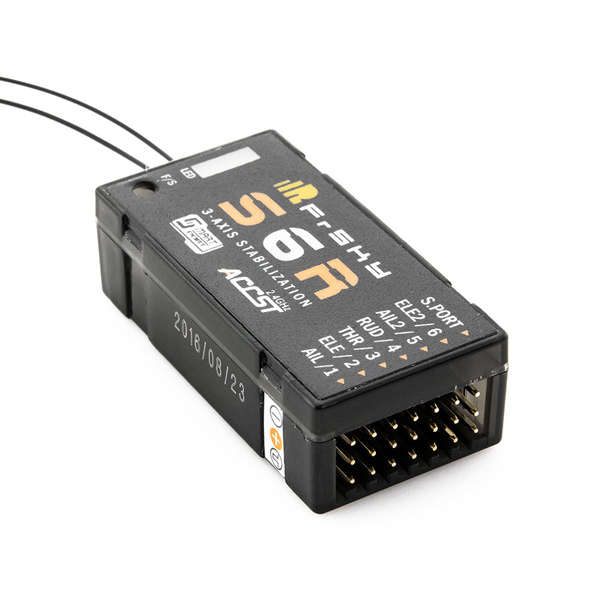

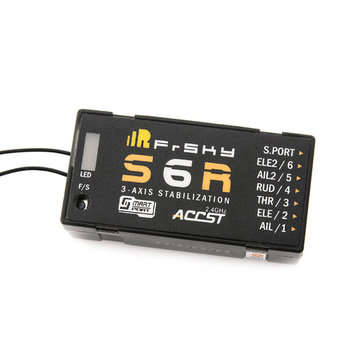

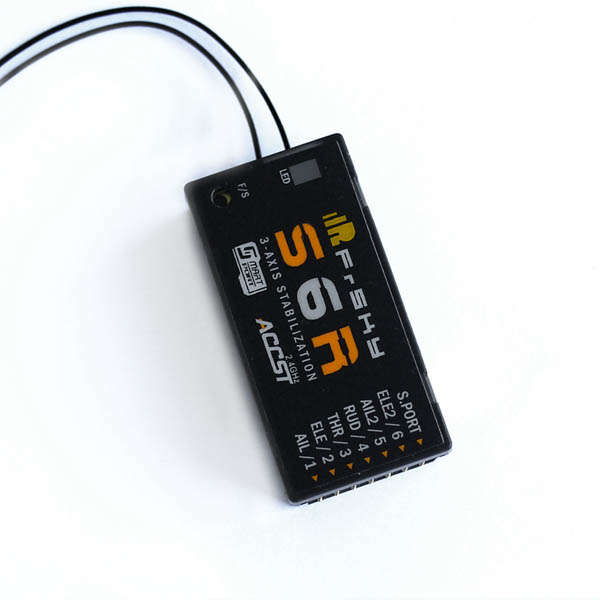

FrSky S6R 2.4G 6CH ACCST Receiver With 3-Axis Stabilization And Smart Port Telemetry FrSky has combined the popular FrSky receiver technology with a super stable 3-axis system for fixed wing aircraft. The S6R is based on the STM32 platform, with both receiver and flight control functions. The S6R includes a three-axis gyroscope and three-axis accelerometer sensor module, with settings that are programmable via FrSky radios or the PC configuration tool (with FrSky STK). Besides six-channel receiver function, the S6R also has stability augmentation, automatic level, crane, sideward flight, and shutdown functions of conventional airfoils. Flying wing and V-tail models only support stability augmentation, automatic level and shutdown functions.?
Description: Brand Name: FrSky
Item Name:?S6R 2.4G 6CH ACCST Receiver
Compatibility :? FrSky Taranis X9D Plus/X9E/Horus X12S/XJT in D16 mode S6R-EU only works with FrSky Taranis X9D Plus-EU/X9E-EU/Horus X12S-EU/XJT-EU in D16 mode Model:?6CH receiver with buil-in 3-axis gyro and 3-axis acceleration Dimension:?47.42*23.84*14.7mm(L*W*H) Weight :?12.1g Operating Range:?full range Operating Voltage Range:?4.0~10V Operating Current :?100mA@5V Number of Channels :?6CH (1~6CH from conventional channel outputs) Measurement Range:?±4g
Features: * Built-in 3-axis gyro and 3-axis accelerometer sensor module. * Built-in battery voltage sensor. * Smart Port enabled. * Fail safe. * Small and lightweight (only 12.1g). * Wide voltage range (4~10V). * Firmware upgradeable.
FrSky S6R 2.4G 6CH ACCST Receiver Manual,

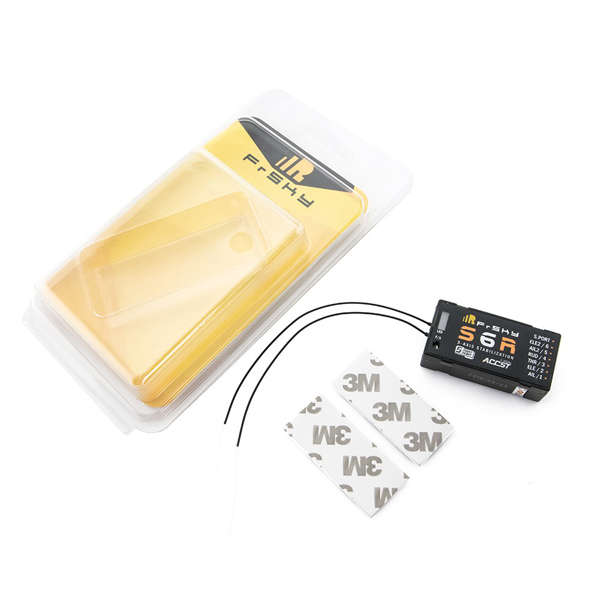

Package Included: 1X?FrSky S6R 2.4G 6CH ACCST Receiver

,

,

,

,

,
