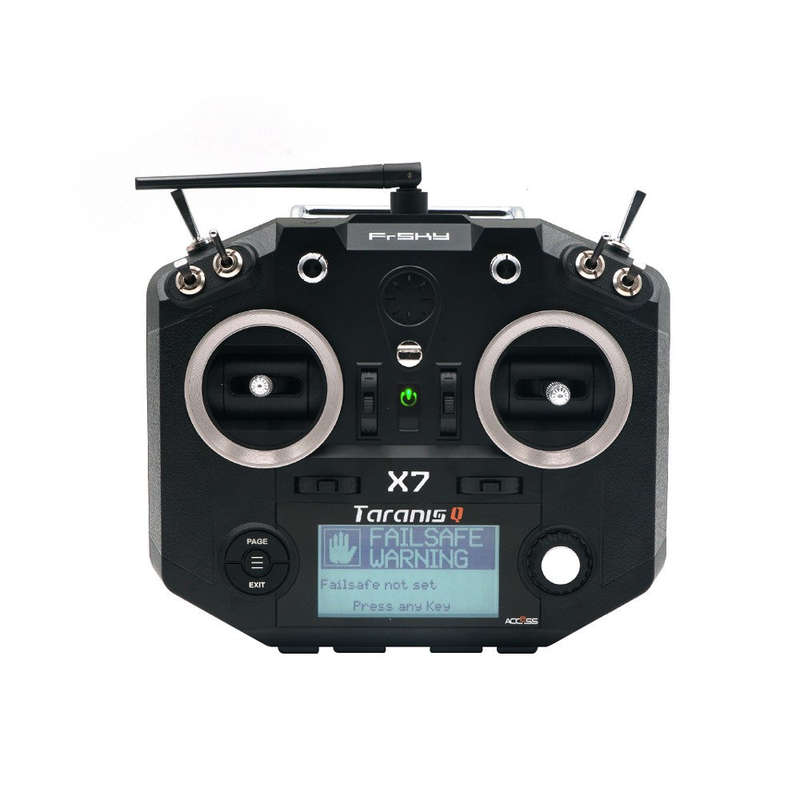

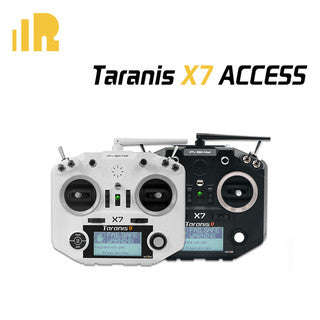

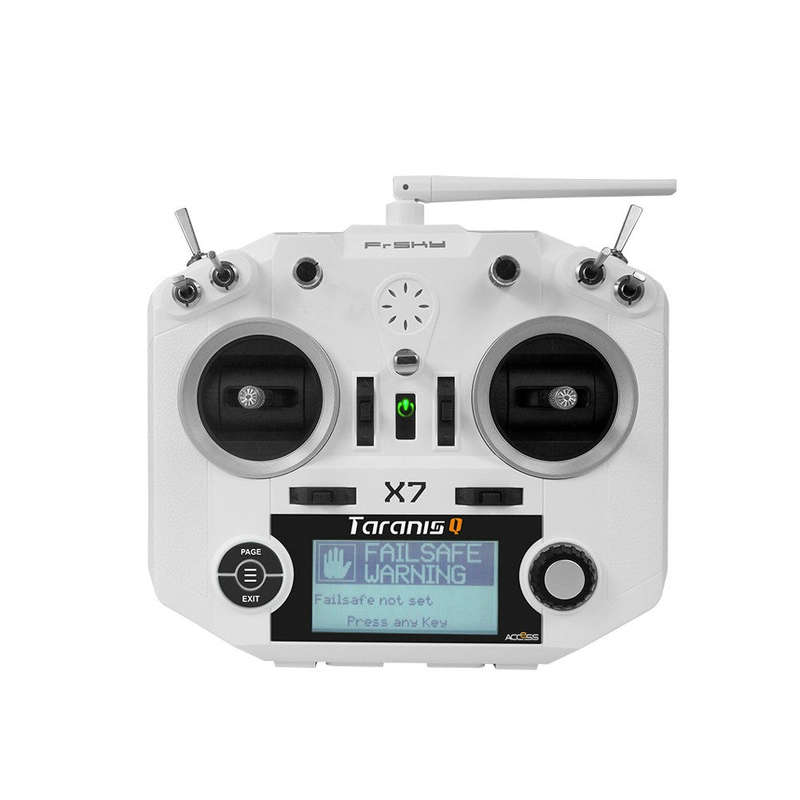

FrSky Taranis Q X7 ACCESS

This transmitter is ICASA type approved

The Taranis Q X7 ACCESS features 24 channels with a faster baud rate and lower latency, thanks to its high-speed module digital interface. Just like the rest of the ACCESS transmitters, the Q X7 provides a secure and reliable link, along with wireless firmware, making it compatible with the newest line of OTA receivers. The battery compartment uses two 18650 Li-Ion batteries and can be balance charged via the Mini USB interface.

Note: Batteries not included.

Note: Please be aware of ACCESS protocol's new features, benefits, and requirements. You can learn all about it on FrSky's official ACCESS page.

• FrSky's official ACCESS page

Flying D8 Receivers?

Pair the FrSky XJT Lite Transmitter Module with ACCESS Radios like this one in order to fly quads with D8 receivers, common in many micro quads.

Features

• Ergonomic and compact design
• Open-source operating system
• Installed with ACCESS protocol
• Supports spectrum analyzer function
• High-speed module digital interface
• Supports wired training function
• Haptic vibration alerts and voice speech outputs
• Easily accessible battery compartment (*Batteries not included, compatible with replaceable 18650 button top Li-ion batteries)

Specifications

• Dimension: 202.2mm*189.4mm*96mm
• Weight: 613g (without battery)
• Number of channels: 16 (ACCST D16) / 24 (ACCESS) channels
• Internal RF module: ISRM-N
• Operating Voltage Range: 6.5V~8.4V
• Operating Current: 160mA@7.2V typ
• Operating Temperature: -10~60 (14~140)
• Backlight LCD resolution: 128*64
• Smart Port, Micro SD card slot, Mini USB Port and DSC Port

Manual

Includes

• 1 x FrSky Taranis Q X7 ACCESS 2.4GHz 24CH Radio Transmitter

Downloads:

• https://www.frsky-rc.com/taranis-q-x7-3/
• FrSky's official ACCESS page

Does NOT include the 18650 batteries.
