FrSky XSR 2.4GHz 16CH ACCST Recevier w/S-Bus & CPPM

1 was available / new
R328.90
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Customer ratings:
Product code
FRS228
Bob Shop ID
596958711

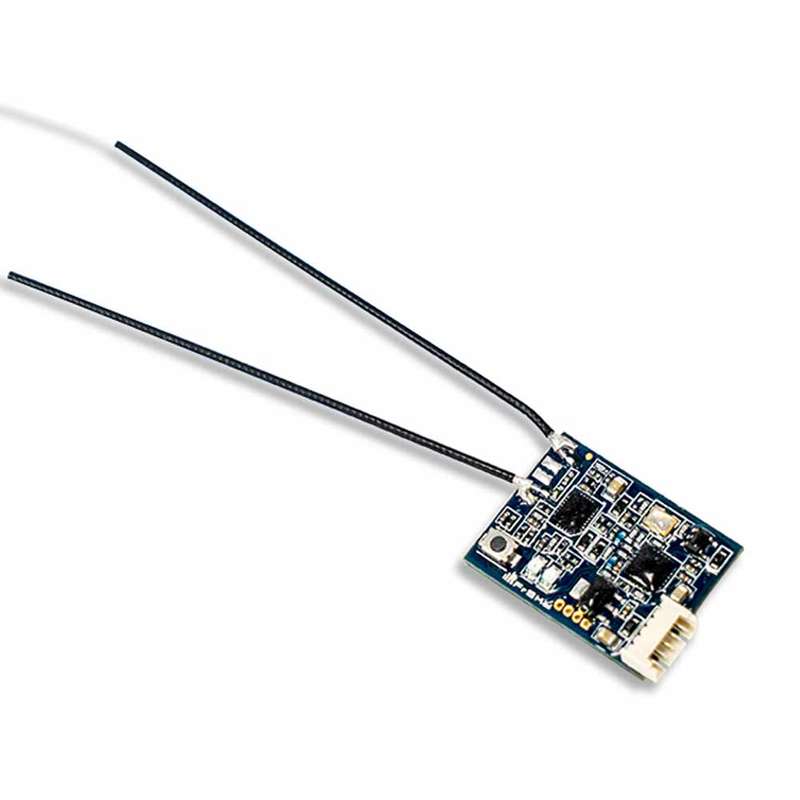

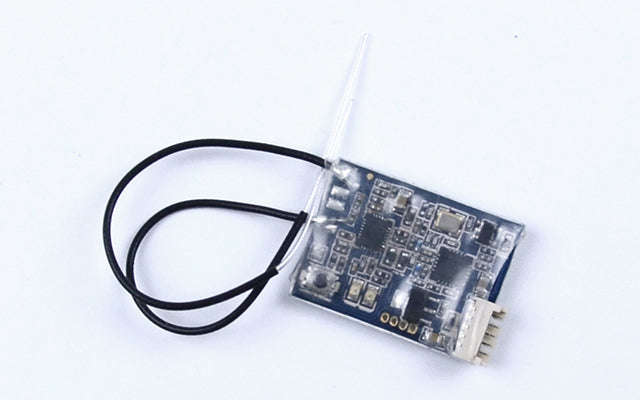

Weighing in at 4.3 grams (including connection cable) and smaller than the X4R, this little receiver is a great choice for micro multirotors. The XSR is SmartPort enabled and has S-bus as well as CPPM outputs. However we needed to give some things up so it could be smaller. The XSR does not support FBVS nor PWM and the antennas are soldered on instead of utilizing IPX connectors.

Features:

  • Smart Port enabled,realizing two-way full duplex transmission.
  • S-BUS output.
  • CPPM output.
  • Lighter weight and physically smaller than X4R.
  • More number of channels:1~16ch from SBUS channel,1~8ch from CPPM Channel.

Specifications:

CompatibilityFrSky Taranis  X9D/ X9DP /X9E / X7/ X7S/Horus X12S/X10 /X10S/ XJT  in D16 mode.


XSR is not worked with D-series Module

The LBT version of XSR receiver only works with FrSky D16-LBT Mode.

Dimension26*19.2*5mm(L x W x H)
Weight3.8g
Operating Voltage Range4.0~10V
Operating Current100mA@5V
Number of ChannelsXSR 16Ch(1~16ch from SBUS Channel,1~8ch from CPPM Channal)
Firmware Upgradable
