Features
1. Portable and compact design
2. 300mm long sealing element
3. Labor-saving design with long handle
4. Auto LED shut-off indicator light
5. Adjustable timer creates perfect seals for varying bag thickness
6. Low power consumption
7. It is great for sealing plastic films to sealing bags in household, supermarkets, kitchen or stores, such as cafe shop, candy store, snack booth, medicine shops, small factories etc
8. This machine is ideal sealing machine, can be easily used to encapsulate each with candy, food, general merchandise, stationery and medicines.
9. The machine increases the round electric wire after overcast as heating elements, which can seal plastic bags, but they can cut to shape and improve the use of the laminator features, giving users a great deal of text will be.
Specifications
Specification:
1. Impulse power: 400W
2. Voltage: AC 220V
3. Heat Time: 0.2 a?? 1.5S
4. Sealing length: 300mm
5. Sealing width: 3mm
6. Sealing thickness: 0.4mm
7. Dimension: 440mm x 85mm x 255mm
Package Includes:
1. Impulse bag sealer x 1
2. Free sealing elements x 2
3. Free Teflon sheets x 2
4. Instruction manual x 1
Usage:
The machine without the power switch, plugged into an AC power outlet, according to the thickness of the sealing material, high-speed heating time. The bag on the sealing surface, press the handle, the circuit automatically controls the heating time. When the light is off, the power supply is automatically disconnected. After about 1-2 seconds, release the handle, the seal better.
Operating Instructions:
1. To plug into external power.

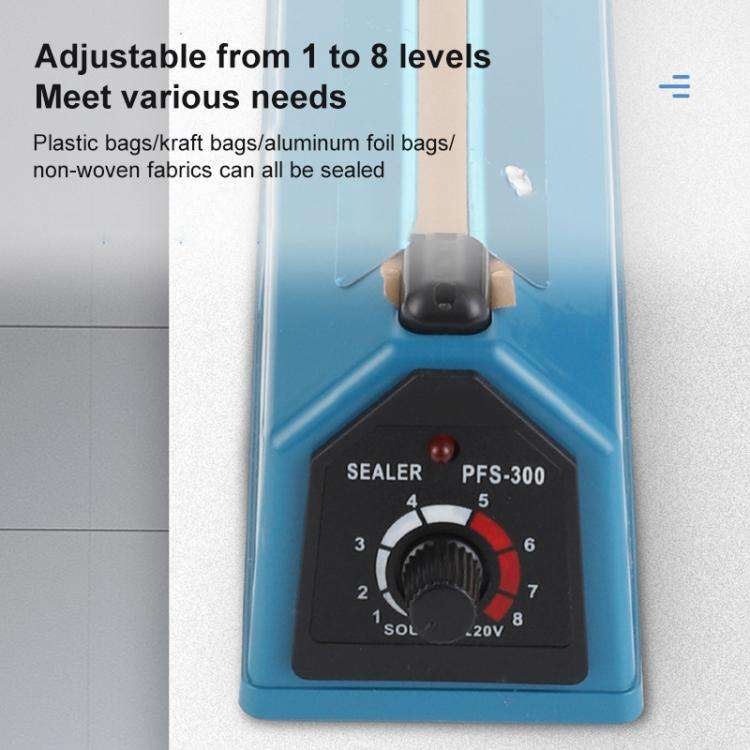

2. According to the thickness of the bag, is positioned the sealing time from 1 to 8.
3. When the indicator is eliminated, approximately one second release handle.
4. Adjust the heating time later, in use should remain unchanged. When used continuously having to make any adjustments.
5. If a plastic bag stuck to the rubber plate, indicating that the cooling time is not enough, we must extend the light is off cool down. Please release the handle a little bit late.
6. If the seal is not strong, it is because the heating time is too short. Keep the knob counter-clockwise to shorten the heating time.
Notes:
1. Should always be kept clean sealing surface, avoid sealing surface residues reduce oxidation and thermal cloth band life.
2. Do not rub the sealing surface with a damp cloth.
3. If the band below the liner is damaged, it will cause a short road damage band. So every time you replace the band, check the gasket in good condition. If damaged, it should be replaced with new.
4. Should be required for selection and want to change the band has the same specifications as the original band.
5. Check the rubber after prolonged use of the platen. Because if the rubber platen damage will affect the sealing quality.
