FSP new PSU-AURUM PT series has 80+ Platinum certification, and features full industrial-grade Japanese capacitors and full modular. It is the ultimate design for gaming enthusiast and overclocker ever.
Specification

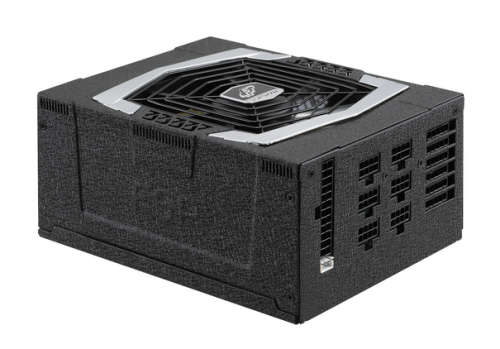

FSP AURUM PT 1200W PSU
Complies with ATX12 v2.4 & EPS12 v2.92
High efficiency >92%
Active PFC >99%
High Wattages with 80+ Platinum Certification
+12V Single-Rail Design
Full Modular with Soft Cables
Full Japanese Capacitors
8 x 6+2 pin PCI-Express Connectors
Quiet and Long-Lasting 135mm FDB Fan
Complete Protections: OCP, OVP, SCP, OPP, UVP, OTP
Global Satety Approved
Specifications:
Model: PT-1200FM
Rated Output Power: 1200W
Form Factor: ATX12V V2.4 & EPS12V V2.92
80 PLUS Certification: PLATINUM
Input Voltage: 110-240Vac (Full Range)
Input Current: 9-15A
Input Frequency: 50¬60Hz
PFC: Active PFC (>0.9 typical)
Efficiency: >92%@ Typical Load
Fan Type: 135mm FDB Fan
Noise: < 21 dBA
Dimensions: 190 x 150 x 86mm
weight: 3480g
Operation Temp.: 0¬40C / 32 F¬104 F
Protection: OCP/OVP/SCP/OPP/UVP/OTP
Safety Approval: CE/TUV/FCC/EAC/CCC/BSMI/RCM/KC
Connectors:
ATX 20+4 x1
4+4Pin x2
PCI-e 6+2 x8
SATA x13
Molex (PERIPHERAL) x6
Floppy x1
