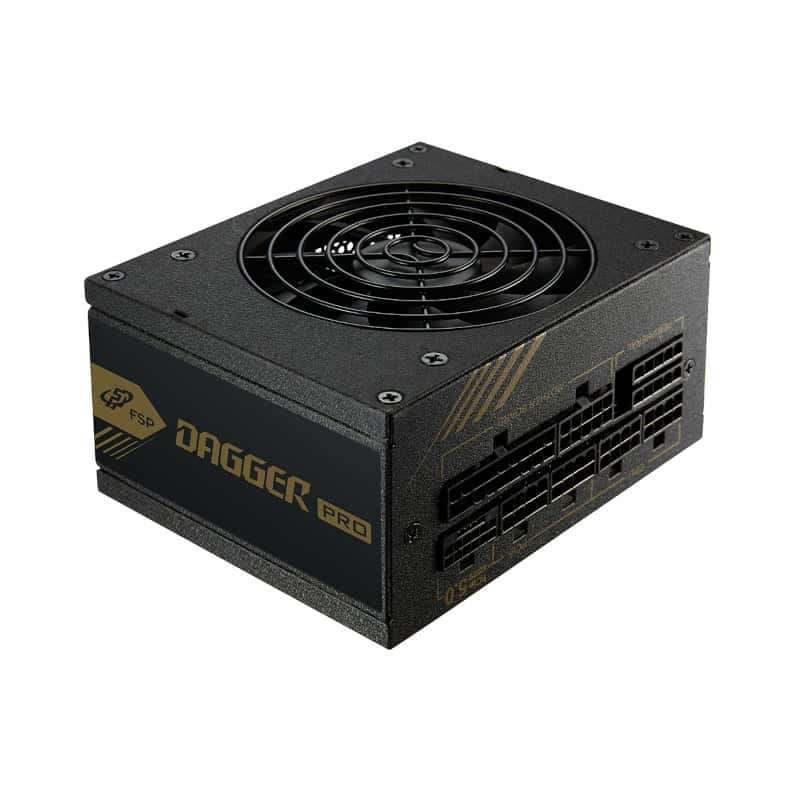

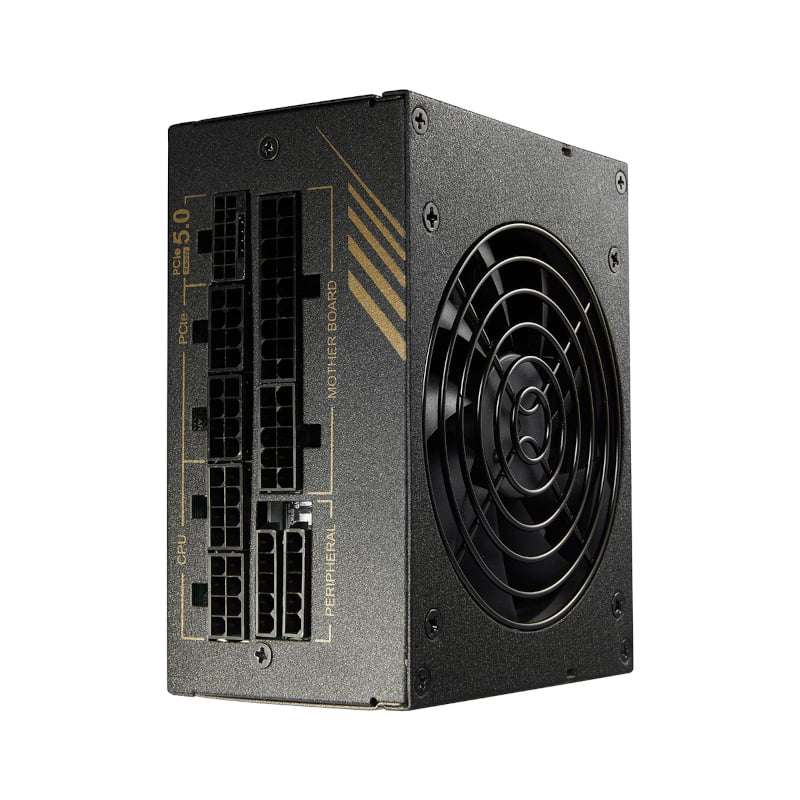

The FSP DAGGER PRO ATX3.0 750W is a power supply with 80 PLUS® Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU-rated power and as a result, reduces lots of electricity cost. The Fully-modular design and flat ribbon cables provide easier installation. An ideal solution for applications with space constraints, enhancing overall airflow efficiency and cable management.
The DAGGER PRO 750W comes with a native PCIe 5.0 connector for the latest graphic cards and features dual CPU power connectors to support high-end motherboards for gaming enthusiasts. The VGA card is a component which needs greedy and stable power support most. The compact-sized DAGGER PRO ATX3.0 750W comes with a single +12V rail design that offers VGA cards full power individually and to avoid any overloading conditions.
It is compatible with most Mini-ITX and Micro ATX small form factor PCs. It is ideal for home computer rigs but a great alternative for mini-PC enthusiasts. It Adapts to your individual requirements, not only does it fit into cases with the SFX form factor but can also be installed easily into normal ATX, Micro-ATX or Mini-ITX cases.
FEATURES:
Compliance with ATX12V V3.0
Compliance with PCIe 5.0
Efficiency 90% at typical load
MIA IC (Multiple Intelligence Ability) chipset inside
Semi-Fanless design for silent operation
Quiet and long-lasting 92mm ball bearing fan
Ribbon cables for the need of enthusiasts
Powerful single +12V rail design
Intel's Latest CPU ready
Japanese electrolytic capacitors
Full protections with OCP, OVP, SCP, OPP, OTP
SPECIFICATIONS:
Rated Output Power: 750W
Form Factor: SFX
80 PLUS Certification: Gold
Input Voltage: 100-240V
Input Current: 12-6A
Input Frequency: 50-60Hz
PFC: Active PFC
Efficiency: 90%
Fan Type: ball bearing fan,92mm
Operation Temp: 200,000 Hrs
Protection: OCP, OVP, SCP, OPP, OTP
AC Input: 100-240Vac~ 12-6A 50-60Hz
DC Output: +3.3V(20A), +5V(20A), +12V(70.83A), -12V(0.3A), +5Vsb(2.5A)

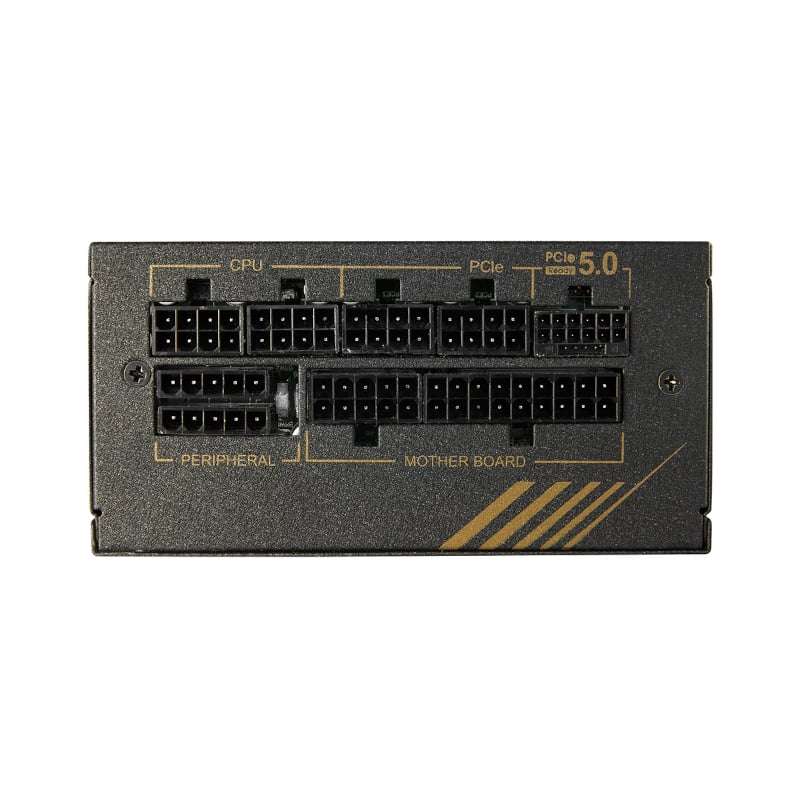

Connectors:
ATX 20+4 x1
4+4 PIN x2
PCIe 6+2 x4
12VHPWR x1
SATA x6
Molex (peripheral) x2
Product Dimensions: 12.5 × 10 × 6.4 cm
WHAT'S IN THE BOX:

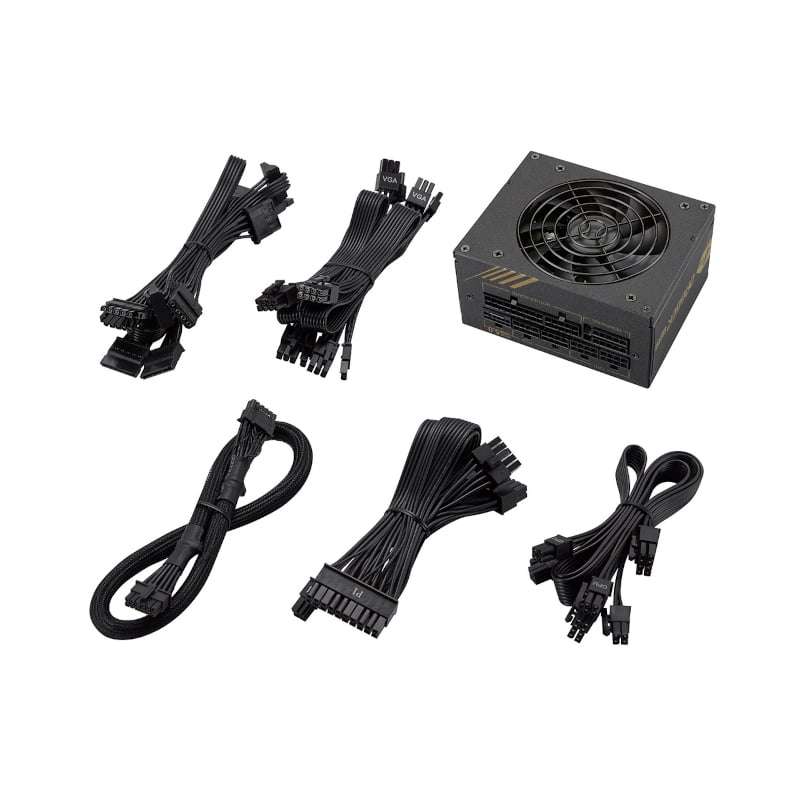

FSP DAGGER PRO 750W Modular PSU x1
Modular Cables Set x1
