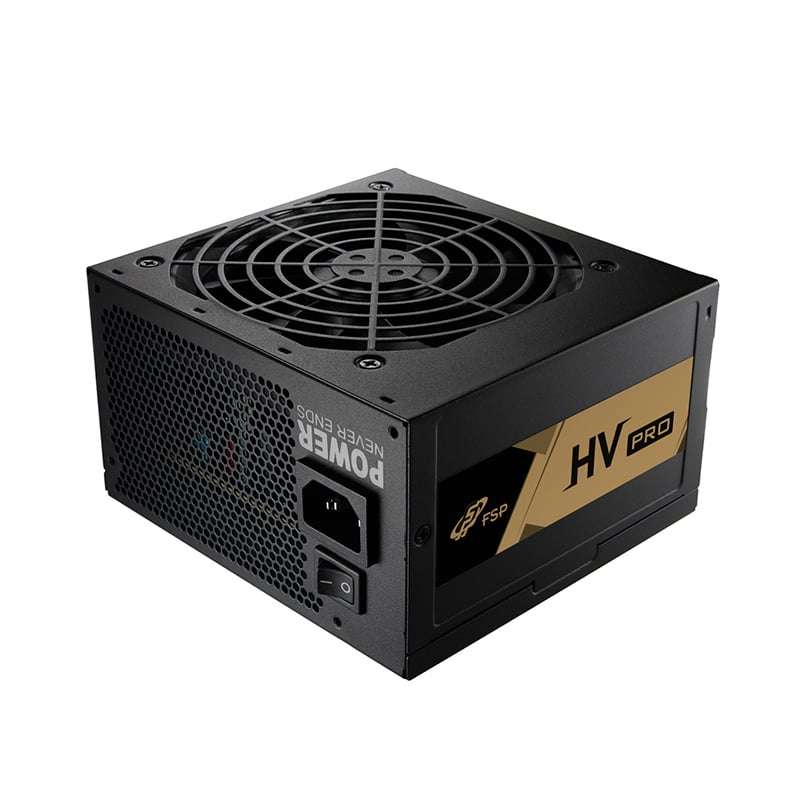

FSP HV Pro 550W Plus Non-Modular Power Supply Unit

The FSP HV PRO 550W 80Plus PSU is a gaming PSU that features 550W of power for more high end hardware. With its 85% efficiency this PSU is perfect for enthusiasts or just for someone who needs more power for their gaming rigs.

The FSP HV PRO 550W 80Plus PSU features a custom DC-DC design which provides more safety and power efficiency. With a 230V 80 Plus rating, this model delivers over 85% high efficiency and low noise levels thanks to its thermal control fan design, where a large 120mm fan takes care of cooling duties when required, making it excellent for situations that are sensitive to size and noise.

FEATURES:

• Complies with ATX12 v2.52 & EPS12 v2.92
• Efficiency 85% @ typical Load
• Active PFC 0.9
• Hold up time > 17ms @80% Load
• +12V Single-Rail Design
• +5V &3.3V DC to DC Module Design
• 120mm Silent & long life Fan
• Complete Protections: OCP/OVP/OPP/SCP

SPECIFICATIONS:

• Rated Output Power: 550W
• Form Factor: ATX 12V V2.4 & EPS 12V V2.92
• 80 PLUS Certification: 230V EU Standard
• Input Voltage: 200-240V
• Input Current: 4A
• Input Frequency: 50-60Hz
• PFC: Active PFC
• Efficiency: 85%
• Fan Type: 120mm Sleeved Fan
• Connectors:
  • 1 x 24(20+4)pin MB
  • 2 x 8(4+4)pin CPU
  • 2 x 8(6+2) Pin PCI-E
  • 4 x SATA
  • 2 x Molex
  • 1 x Floppy
• Dimensions: 150 x 140 x 86 mm
• Weight: 1854g
• Protection: OCP, OVP, OPP, SCP

WHAT'S IN THE BOX:

• FSP HV PRO 550W 80Plus PSU - Black x1
• Power cable x1
