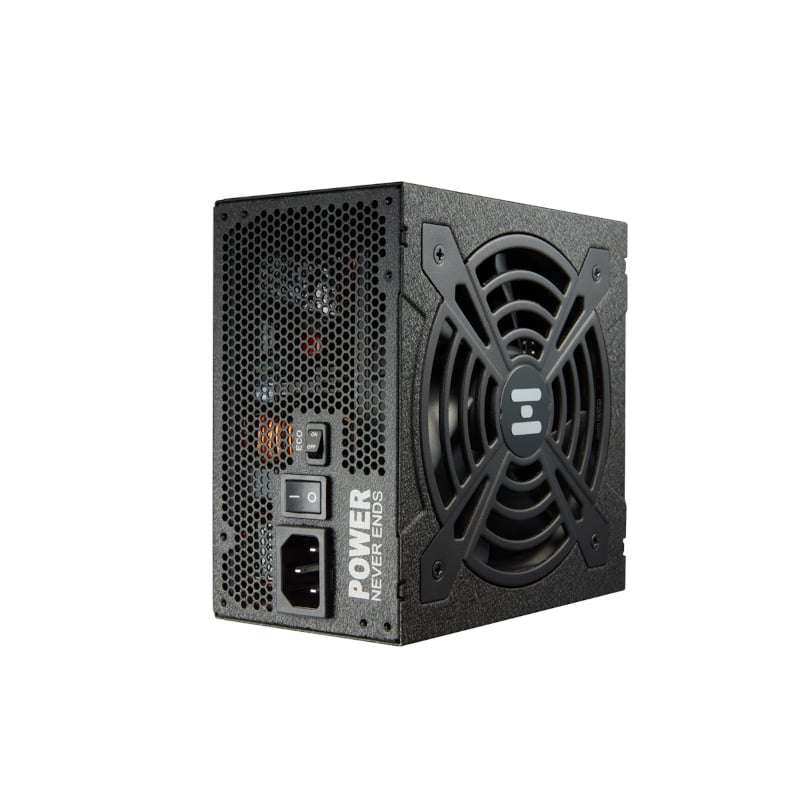

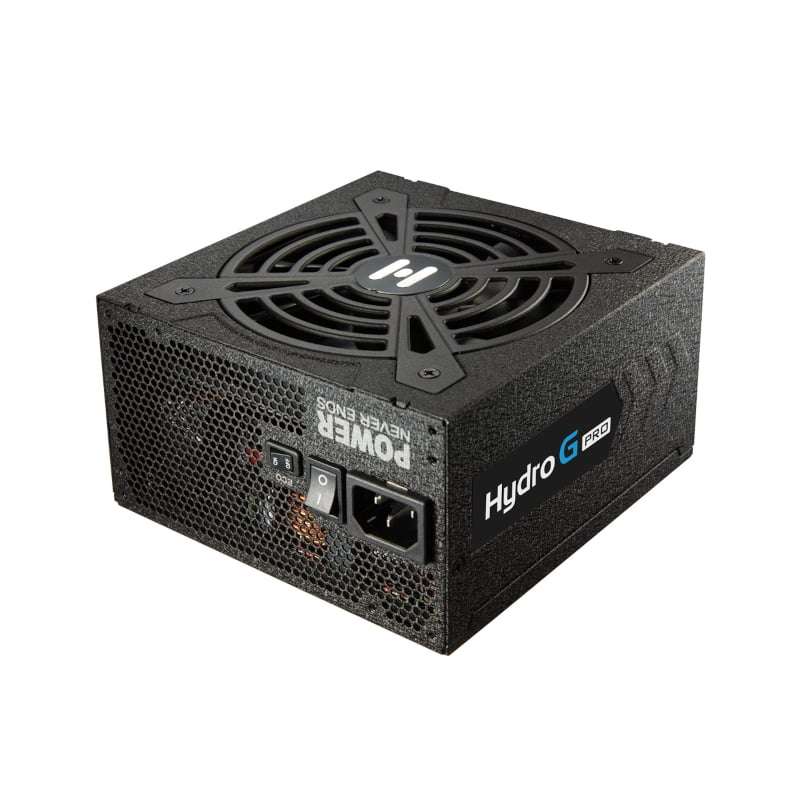

FSP Hydro G Pro 750W 80 Plus Gold Fully Modular PSU

Fsp Hydro G Pro 750W 80 Plus Gold Fully Modular Psu

10 YEAR WARRANTY

Get ultra-performance and powerful output in an even smaller size with the Hydro G Pro 750W modular PSU. Compatible with all the latest PC technology and makes sure the peak power in 12V supports the latest Intel and AMD platforms to deliver full power to your PC system.

The Fully modular design simplifies installation and allows you to use only the cables you need for a cleaner build. Hydro G Pro is covered with conformal coatings to guarantee reliable performance in a harsh environment. It can work perfectly with 95%RH while others cannot.

The Hydro Pro series features extremely tight voltage regulation to make the output voltage regulation under +/- 1% at any load change. It offers you supreme efficiency and voltage stability. Push the ECO Switch for quieter, longer-lasting fans to suit your specific needs. When the Eco button is switched on, the fan in the power supply will not operate when the power supply is under 30% load.

FEATURES:

• Compliance with ATX12V V2.52
• Conformal Coating Application
• Efficiency 90% at typical load
• Intelligent fan speed control
• Quiet and long-lasting 120mm FDB fan
• Ribbon cables designed for enthusiasts
• Powerful +12V single rail design
• 105°C Japanese electrolytic capacitors
• Full protections: OCP, OVP, SCP, OPP, OTP

SPECIFICATIONS:

• Model: HG2-750
• Rated Output Power: 750W
• Form Factor: ATX
• 80 PLUS Certification: Gold
• Input Voltage: 100-240Vac
• Input Current: 10-5A
• Input Frequency: 50-60Hz
• PFC: Active PFC
• Efficiency: 90%
• Fan Type: FDB Fan, 120mm
• Operation Temp: 0-50
• Protection: OCP, OVP, OPP, SCP, OTP
• DC Output/Max Output Current/Max Combined Power:
• +3.3V/20A/120W
• +5V/20A/120W
• +12V/62.5A/750W
• -12V/0.3A/3.6W
• +5Vsb/2.5A/12.5W
• Connectors:
• ATX 20+4 x1
• 4+4 PIN x2
• PCI-E 6+2 x4
• SATA x14
• Molex (PERIPHERAL) x5
• Floppy x1
• Product Dimensions: 15.0 x 15.0 x 8.6 cm

WHAT'S IN THE BOX:

• FSP Hydro G PRO 750W 80 PLUS Gold Modular Power Supply x1
• Modular Cables Set x1
