FEATURES:
Complies with ATX 12V V3.1 & EPS 12V V2.92
Efficiency 90% at typical load
80 PLUS ® gold certified
105°C Japanese bulk capacitor
120mm hydraulic bearing (HYB) fan
Fully modular cabling design
Complete protections: OCP, OVP, SCP, OPP, UVP, OTP
SPECIFICATIONS:

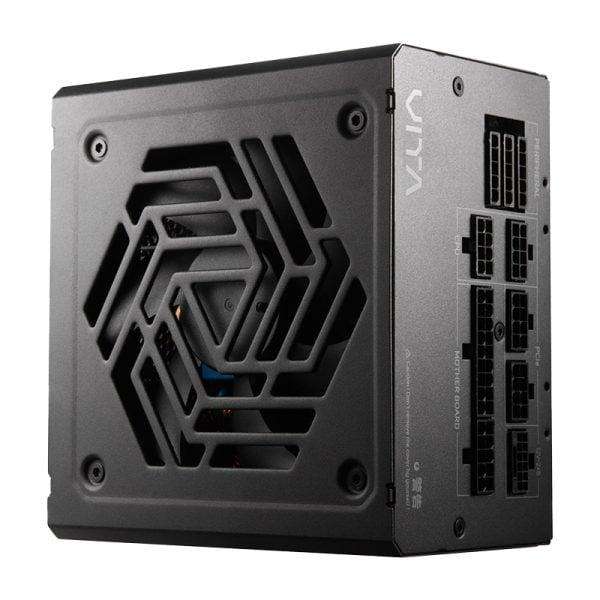

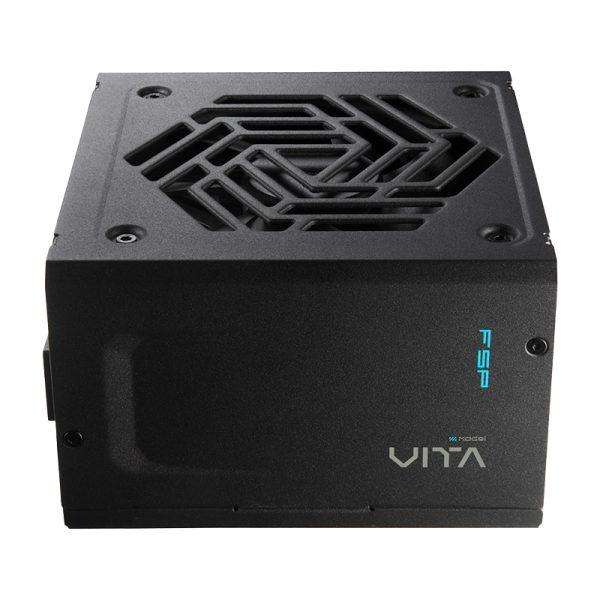

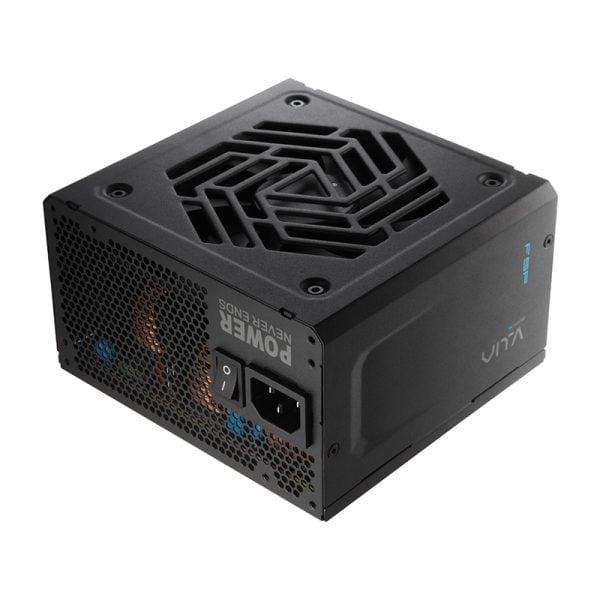

Model: VITA-750GM
Rated Output Power: 750W
Form Factor: ATX12V V3.1
80 PLUS Certification: Gold
Input Voltage: 100-240Vac
Input Current: 10-5A
Input Frequency: 50-60Hz
Efficiency: 90%
Fan Type: HYB fan, 120mm
Operation Temp: 40°C
Protection: OCP, OVP, SCP, OPP, UVP, OTP
DC Output/Max Output Current/Max Combined Power:
+3.3V/20A/100W
+5V/20A/100W
+12V/62.5A/750W
-12V/0.3A/3.6W
+5Vsb/3.6A/15W

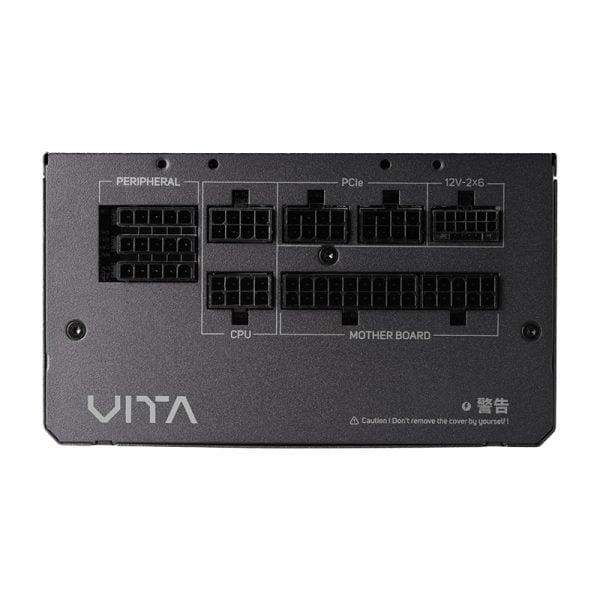

Connectors:
MB 20+4 x1
4+4 PIN x2
PCIe 12V-2×6 x1
PCI-E 6+2 x4
SATA x8
Molex (PERIPHERAL) x4
WHATS IN THE BOX:
FSP VITA GM 750W 80 PLUS Gold Modular Power Supply Black x1

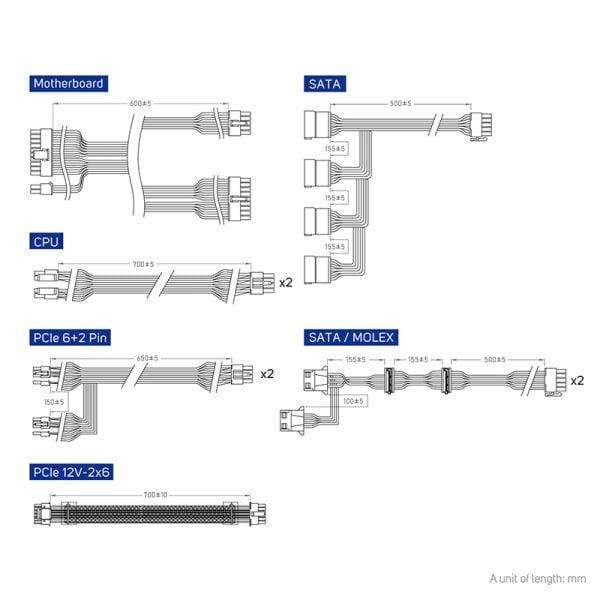

Modular Cables Set x1
Please note: This power supply does not come with a power cable
