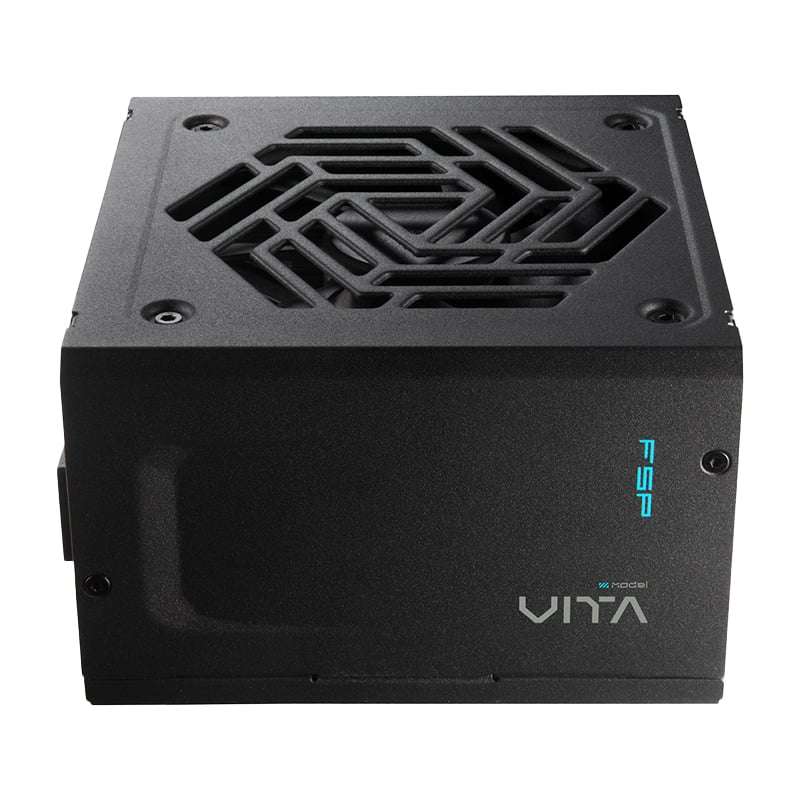

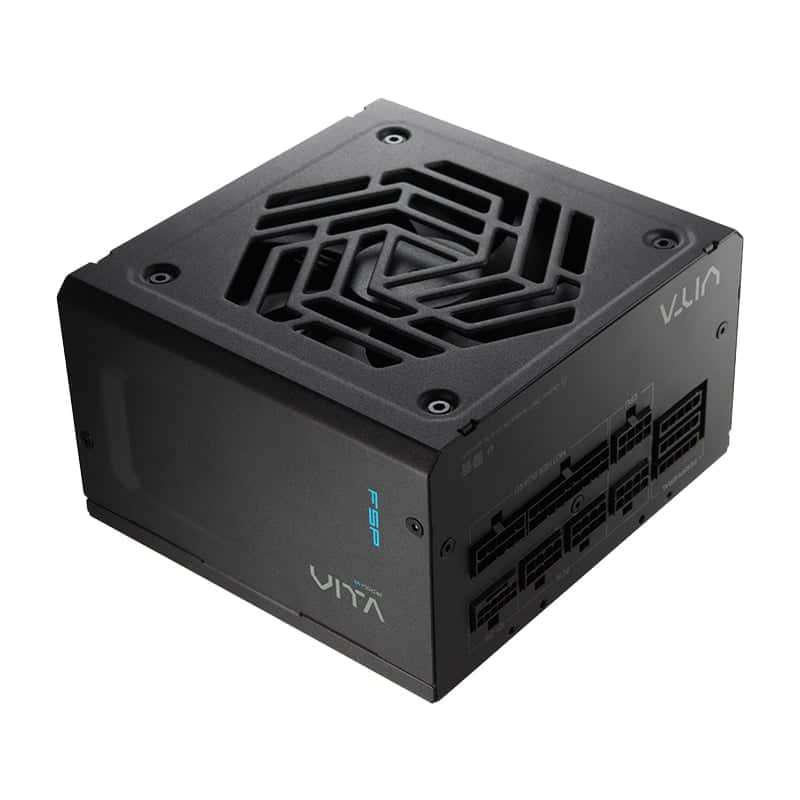

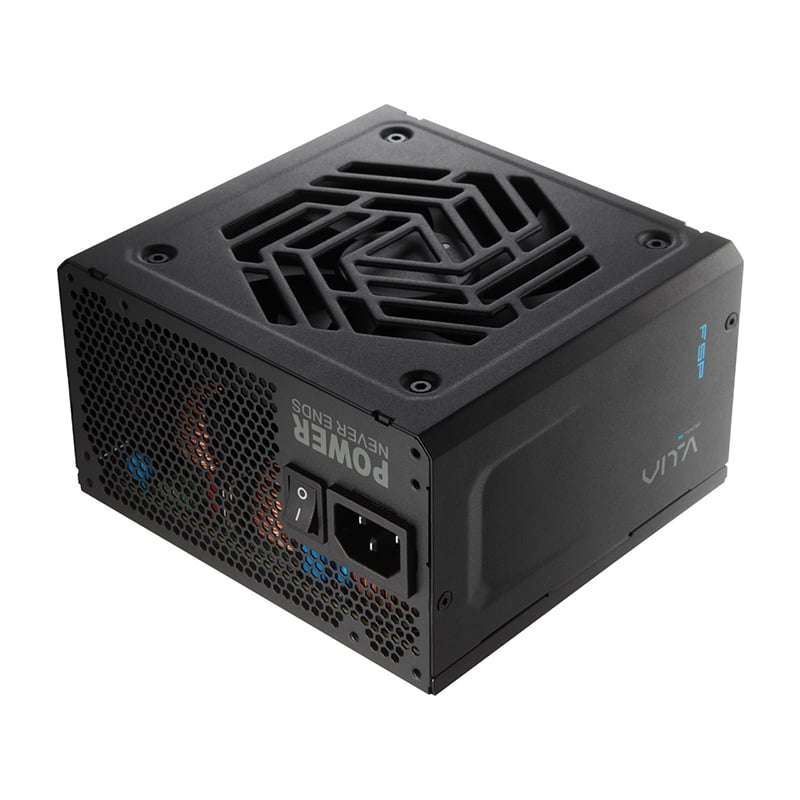

FSP VITA GM 850W Gold Fully Modular PSU

Built to handle the demanding power requirements of tomorrow, these PSUs support total power excursion as per ATX 3.1 and PCIe Gen 5.1 specifications, ensuring they deliver peak performance for future hardware upgrades. Certified with 80 PLUS® Gold efficiency and achieving platinum-level efficiency at typical loads, these power supplies minimise power loss, heat, and noise, offering a cooler and quieter operation.
The advanced LLC resonant-converter topology with synchronous rectification reduces switching losses and keeps the output voltage stable, even under heavy loads, maximising overall system efficiency. The +5V and 3.3V DC to DC circuit design ensures consistent voltage and system stability, while premium 105°C Japanese bulk capacitors provide top-tier reliability and longevity, making them the ideal choice for high-performance PCs. Whether you're a gamer or a power user, these PSUs deliver lasting power and performance you can count on.
FEATURES:

Complies with ATX 12V V3.1 & EPS 12V V2.92
Efficiency 90% at typical load
80 PLUS ® gold certified
105°C Japanese bulk capacitor
120mm hydraulic bearing (HYB) fan
Fully modular cabling design
Complete protections: OCP, OVP, SCP, OPP, UVP, OTP

SPECIFICATIONS:

Model: VITA-850GM
Rated Output Power: 850W
Form Factor: ATX12V V3.1
80 PLUS Certification: Gold
Input Voltage: 100-240Vac
Input Current: 11-5.5A
Input Frequency: 50-60Hz
Efficiency: 90%
Fan Type: HYB fan, 120mm
Operation Temp: 40°C
Protection: OCP, OVP, SCP, OPP, UVP, OTP
DC Output/Max Output Current/Max Combined Power:
+3.3V/20A/100W
+5V/20A/100W
+12V/70.83/850W
-12V/0.3A/3.6W
+5Vsb/3A/15W

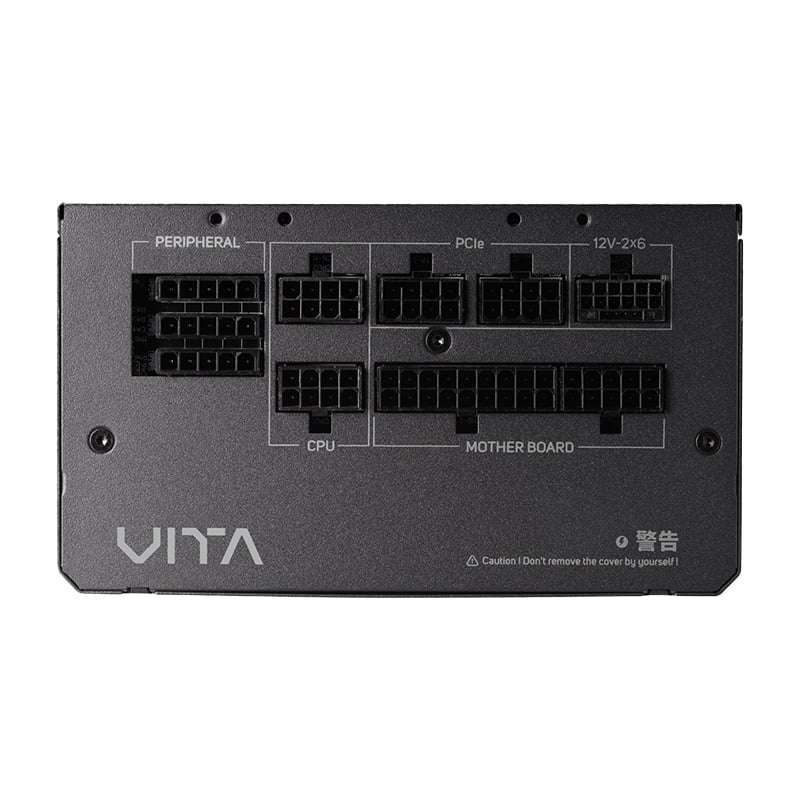

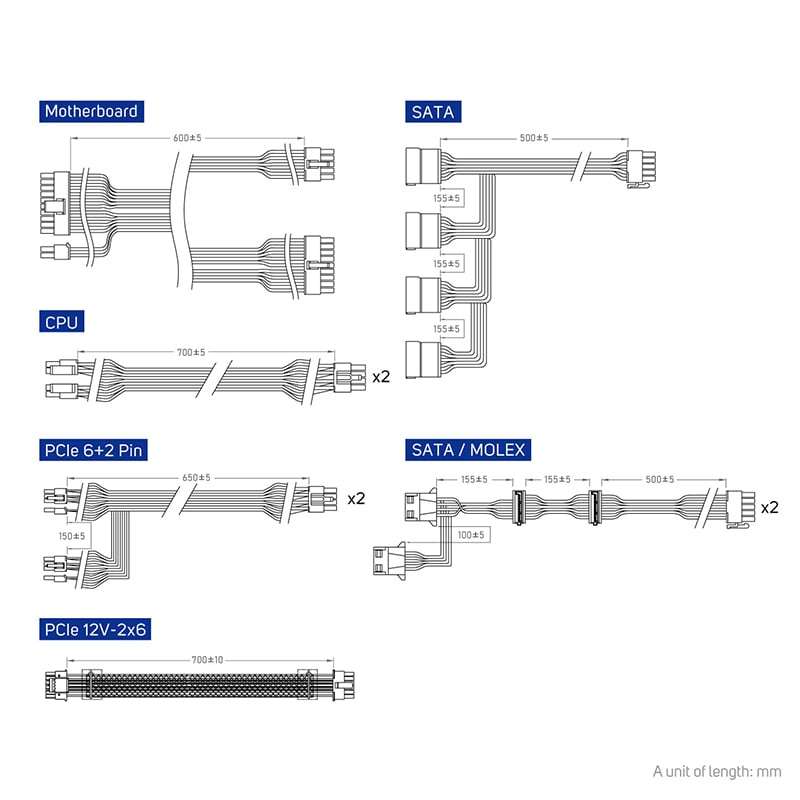

Connectors:
MB 20+4 x1
4+4 PIN x2
PCIe 12V-2×6 x1
PCI-E 6+2 x4
SATA x8
Molex (PERIPHERAL) x4

WHAT'S IN THE BOX:

FSP VITA GM 850W 80 PLUS Gold Modular Power Supply - Black x1
Modular Cables Set x1
