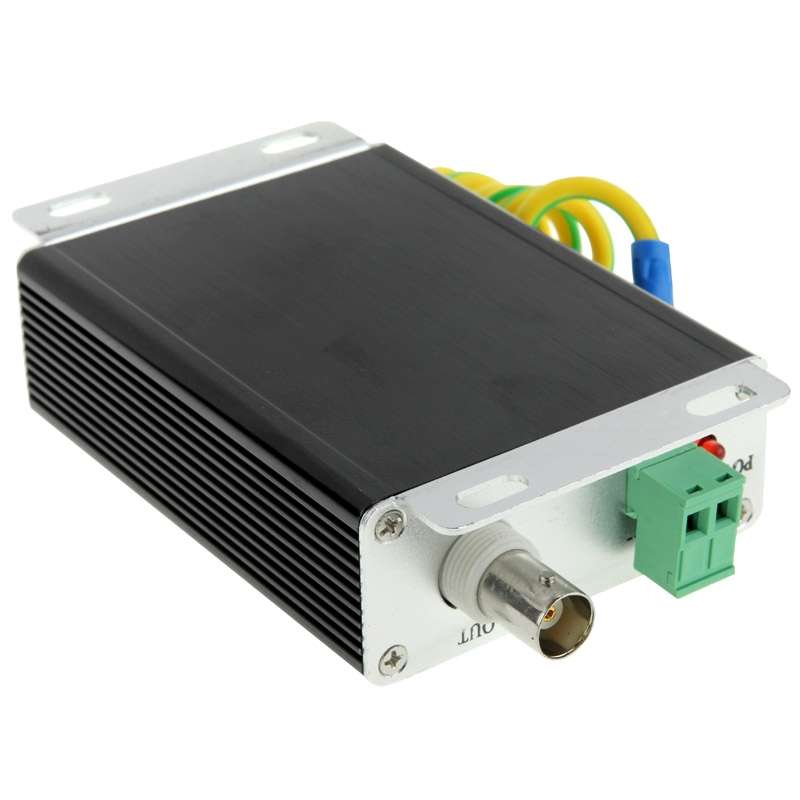

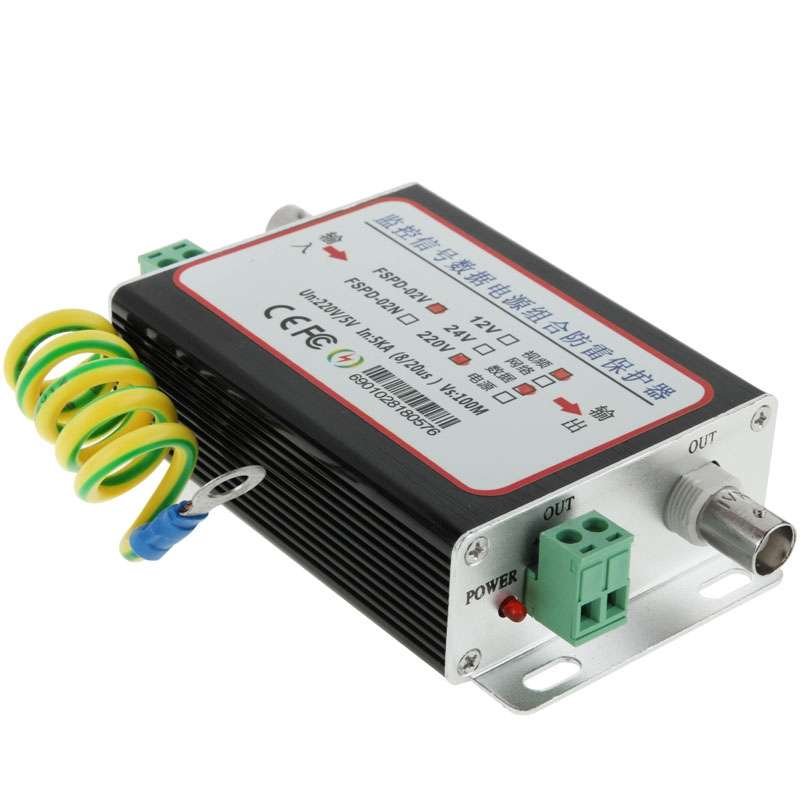

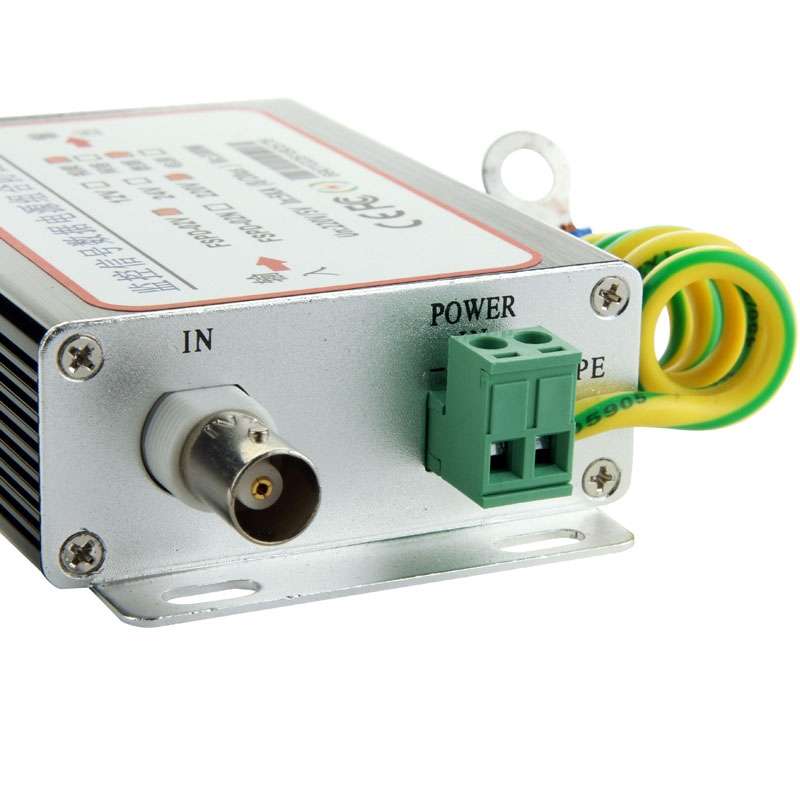

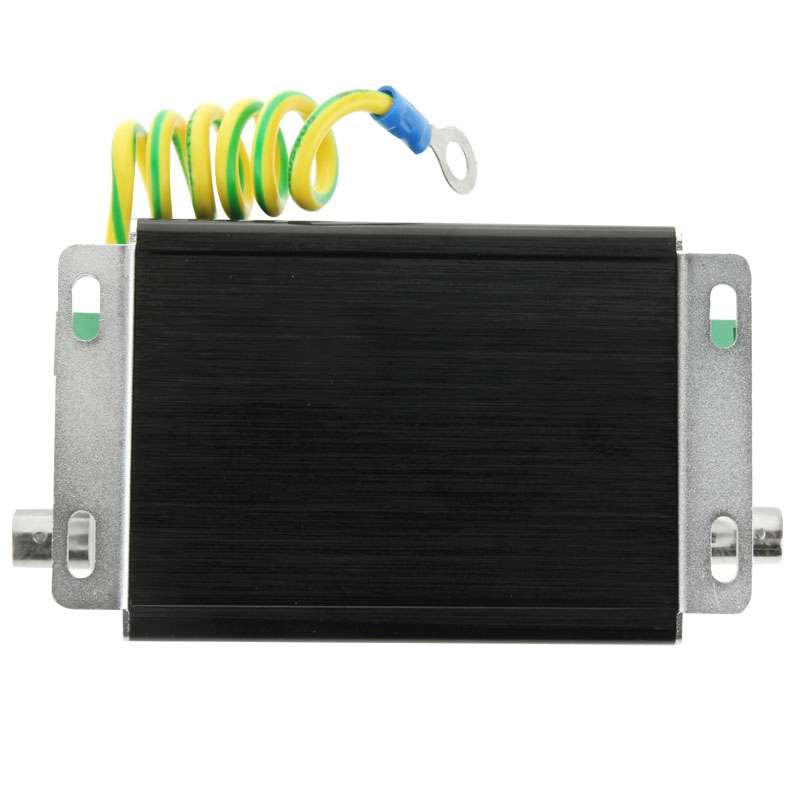

FSPD-02 2 in 1 CCTV Video Monitor Surge Arrester(Black)

1) 2 in 1 surge arrester features rail mounted signal, video and power protection modules in both the cabinet and lowering device provide the ultimate protection from lightning induced surges.

2) This CCTV Video surge arrester is designed to protect monitor equipments (power, Video), widely applied in bank monitor and safe guard system.

3) Monitor equipment for school, enterprise, road etc. Security and protection.

4) Large electric current support, mutiple level protection, quickly response, minor wastage.

5) Surge lightning arrester comes with an integrated braided ground lines to divert surge energy.

6) Coaxial lightning arrester standard BNC interface(male to female).

7) This Monitor Surge Arrester is simple to operate.

Technical parameter:

1) Model: FSPD-02V

2) Function: Video, Data

3) Insert loss: 0.3dB

4) corresponsive time: 1ns

5) Maximum flow-rate Imax: 10KA

6) Nominal discharging voltage: DC 5V

7) Size: 102mm x 64mm x 28mm

8) Weight: 136g
