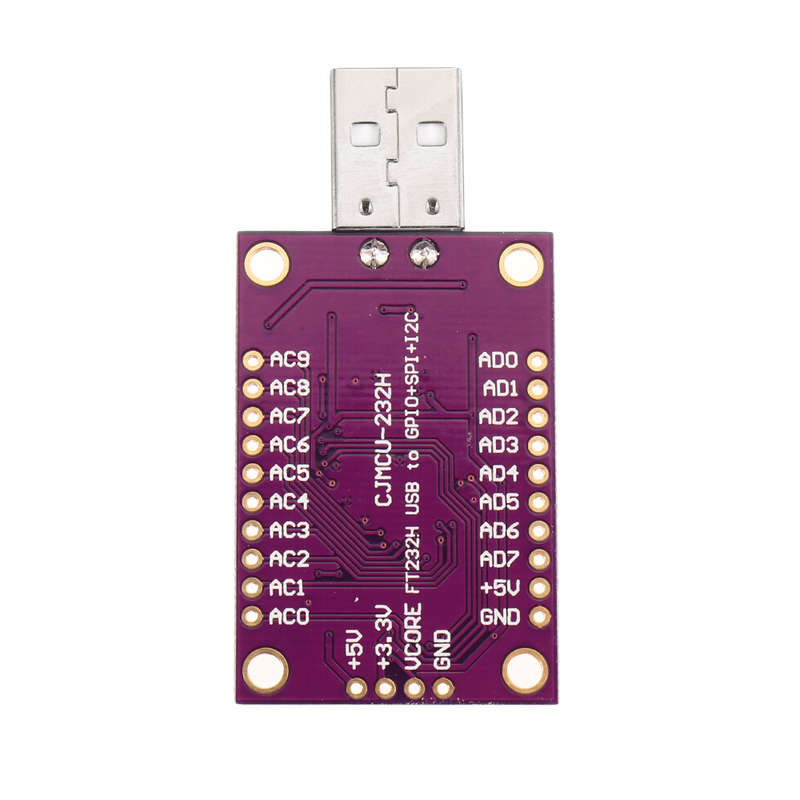

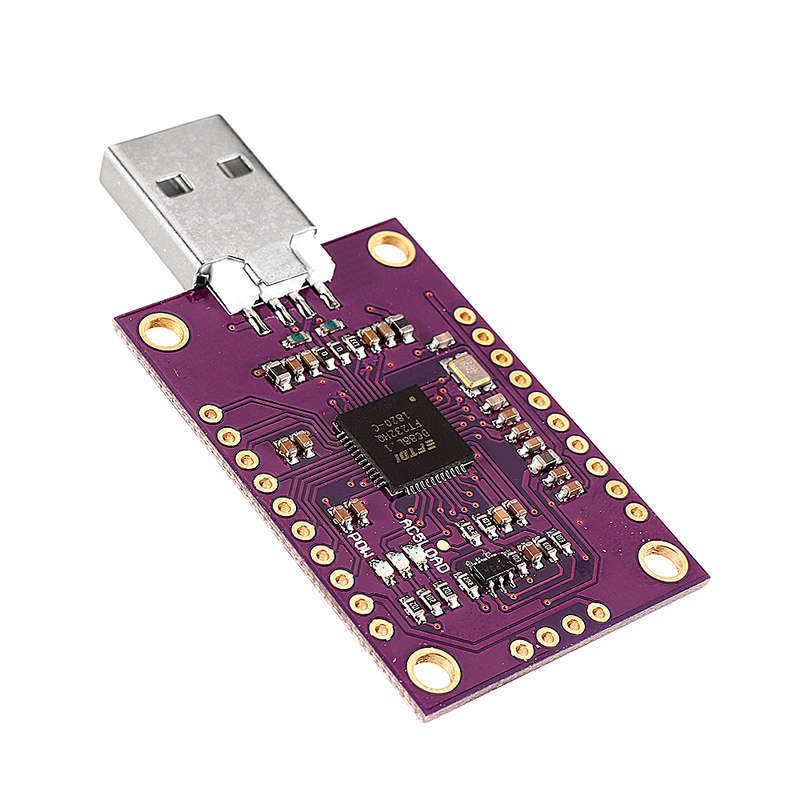

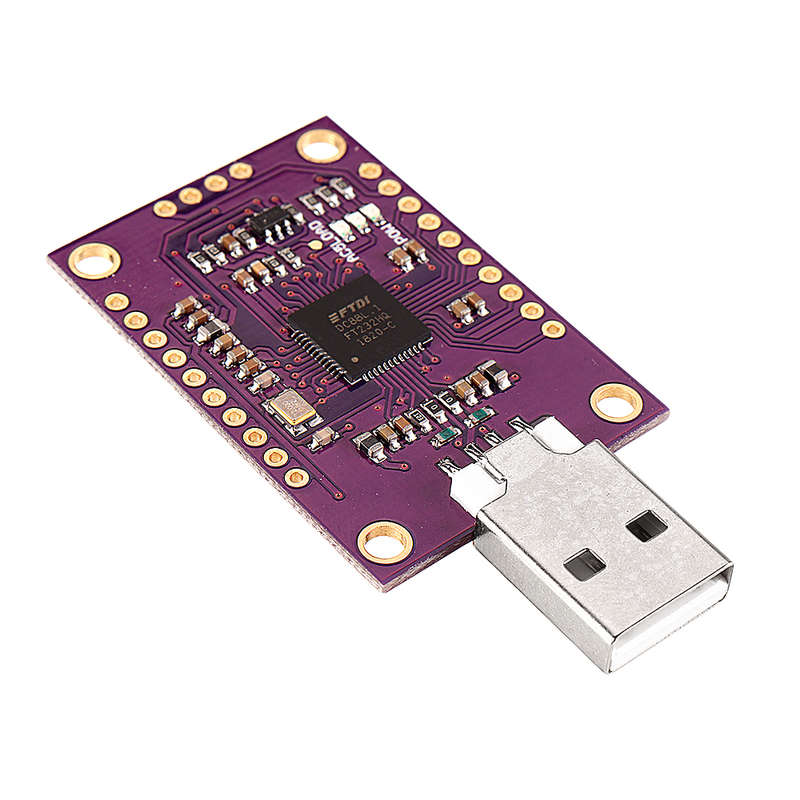

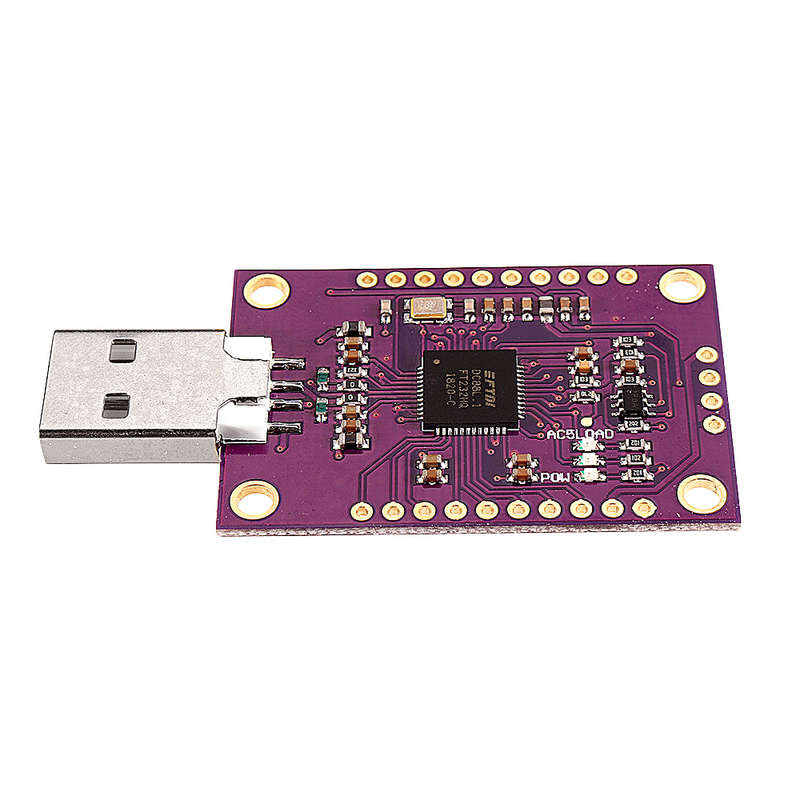

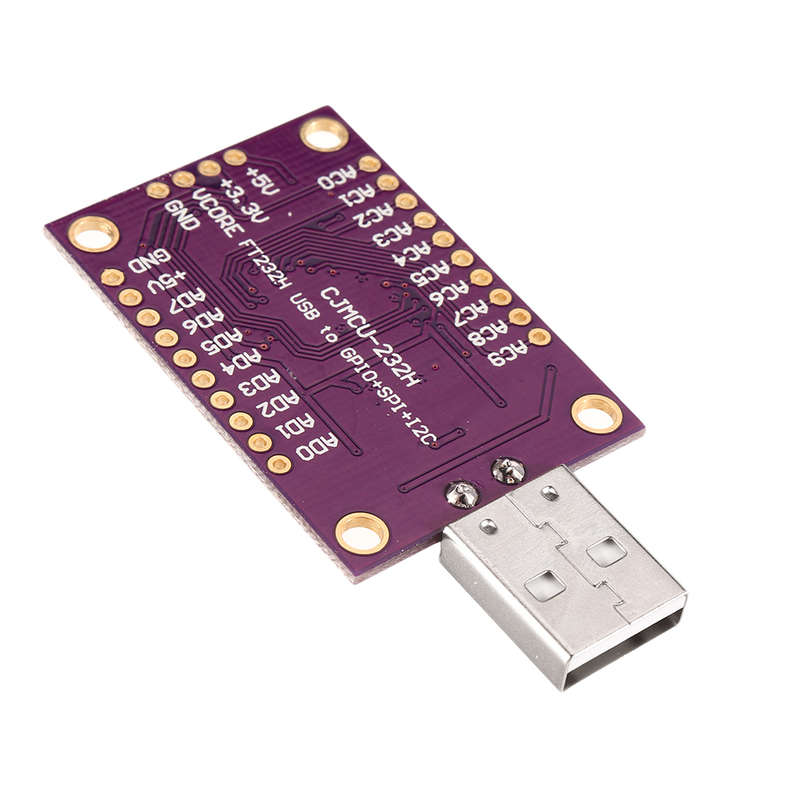

FT232H USB to Serial Port Module High-Speed Multifunction USB to JTAG UART FIFO SPI I2C

Applications: Single-chip USB to UART (RS232, RS422 or RS485) USB to FIFO USB to FT1 248 USB to JTAG USB to SPI USB to I2C USB to Bit-Bang USB to Fast Serial Interface USB to CPU target interface (as memory) CJMCU-FT232H is a single channel USB 2.0 Hi-Speed (480Mb/s) to UART/FIFO IC. It has the capability of being configured in a variety of industry-standard serial or parallel interfaces. The FT232H has the following advanced features: Single-channel USB to serial/parallel ports with a variety of configurations. Entire USB protocol handled on the chip. No USB specific firmware programming required. USB 2.0 Hi-Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible. Multi-Protocol Synchronous Serial Engine (MPSSE) to simplify synchronous serial protocol (USB to JTAG, I2C, SPI (MASTER) or bit-bang) design. UART transfer data rate up to 12Mbaud. (RS232 Data Rate limited by external level shifter). USB to asynchronous 245 FIFO mode for transfer data rate up to 8 Mbyte/Sec. USB to synchronous 245 parallel FIFO mode for transfers up to 40 Mbytes/Sec Supports a proprietary half duplex FT1248 interface with a configurable width, bi-directional data bus (1, 2, 4 or 8 bits wide). CPU-style FIFO interface mode simplifies CPU interface design. Fast serial interface option. FTDI's royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases. Adjustable receive buffer timeout.

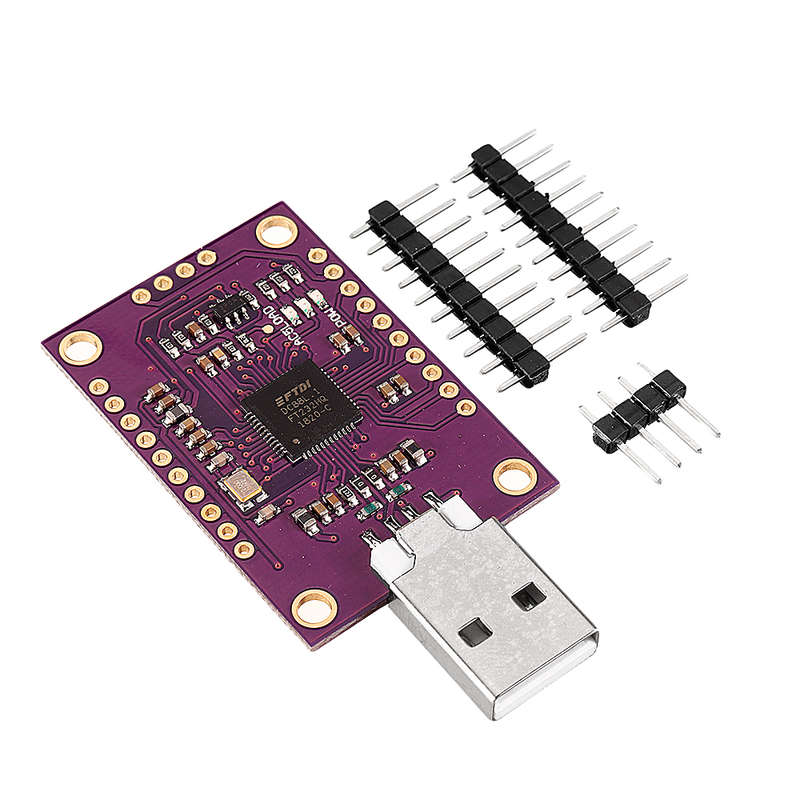

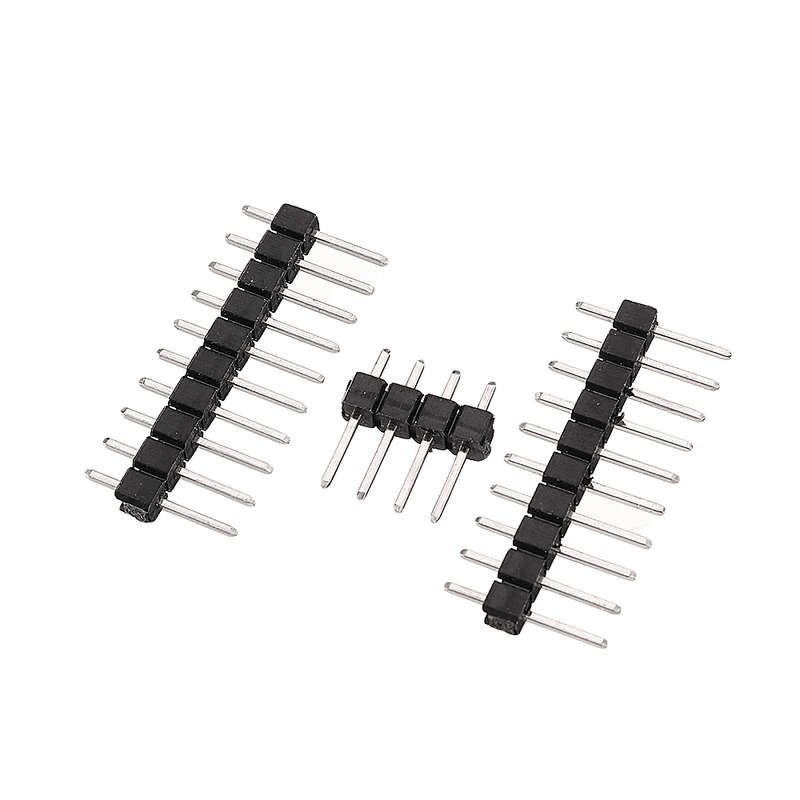

Package includes:

1 xFT232H USB to Serial Port Module
