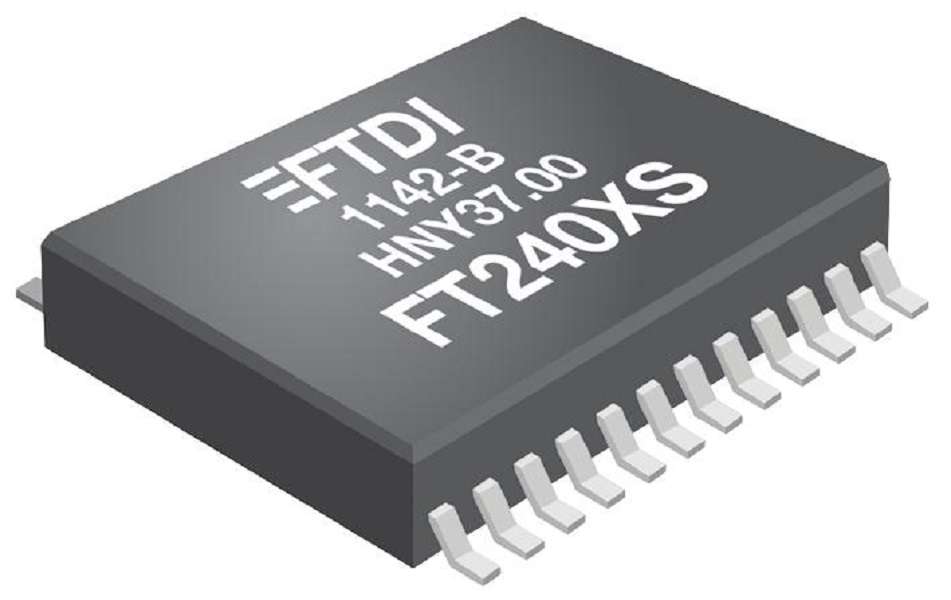

FTDI (2081332) USB Interface, USB 2.0, 2.97 V, 5.5 V, SSOP, 24 Pins

USB Interface, USB-FIFO, USB 2.0, 2.97 V, 5.5 V, SSOP, 24 PinsProduct OverviewThe FT240XS is an USB 2.0 Full-speed IC, offers a compact bridge to 8-bit wideFIFO interfaces. The device is a FIFO, capable of operating up to 1Mbps, withlow power consumption (8mA). The IC includes the complete FT-X series featureset and enables USB to be added into a system design quickly and easily over a8-bit wide FIFO interface.Entire USB protocol handled on chip, no USB specific firmware programmingrequiredFully integrated 2048-byte MTP memory for storing device descriptors and CBUSI/O configurationFully integrated clock generation with no external crystal requiredData transfer rates to 1Mbps512-byte receive buffer and 512-byte transmit buffer utilising buffer smoothingtechnologyFTDI's royalty-free virtual com port (VCP) and direct (D2XX) driversConfigurable CBUS I/O pinsTransmit and receive LED drive signalsSynchronous and asynchronous bit bang interface options with RD# and WR# strobesBattery charger detectionDevice supplied pre-programmed with unique USB serial numberSupports bus powered, self powered and high-power bus powered USB configurationsIntegrated +3.3V level converter for USB I/OTrue 3.3V CMOS drive output and TTL inputConfigurable I/O pin output drive strengthIntegrated power-on-reset circuitLow USB bandwidth consumptionUHCI/OHCI/EHCI host controller compatibleUSB 2.0 full-speed compatibleExtended operating temperature rangeProduct InformationUSB IC Type: USB-FIFOUSB Standard: USB 2.0Supply Voltage Min: 2.97VSupply Voltage Max: 5.5VInterface Case Style: SSOPNo. of Pins: 24PinsData Rate: 1MbpsNo. of Ports: -Operating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: -MSL: MSL 3 - 168 hours
