Ftdi Chip (UMFT311GP) Shield Board, FT311D Development Modules

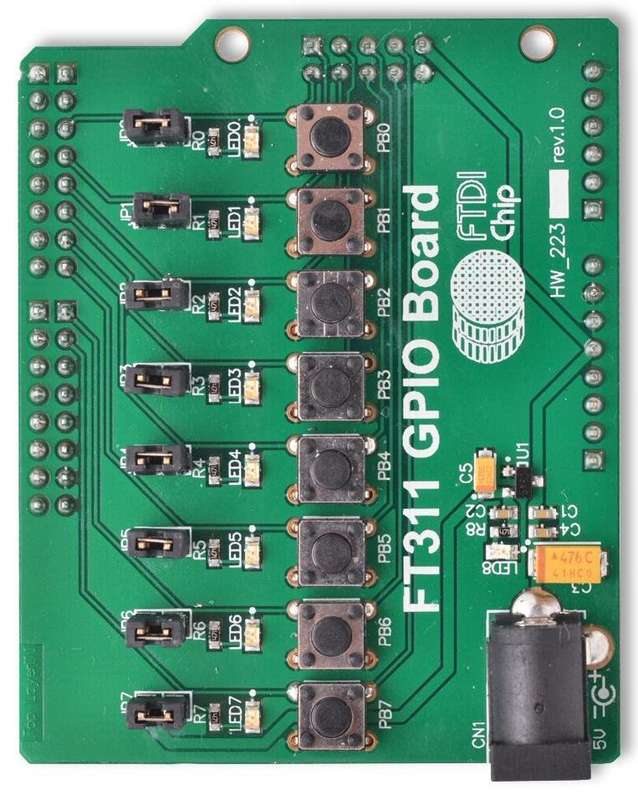

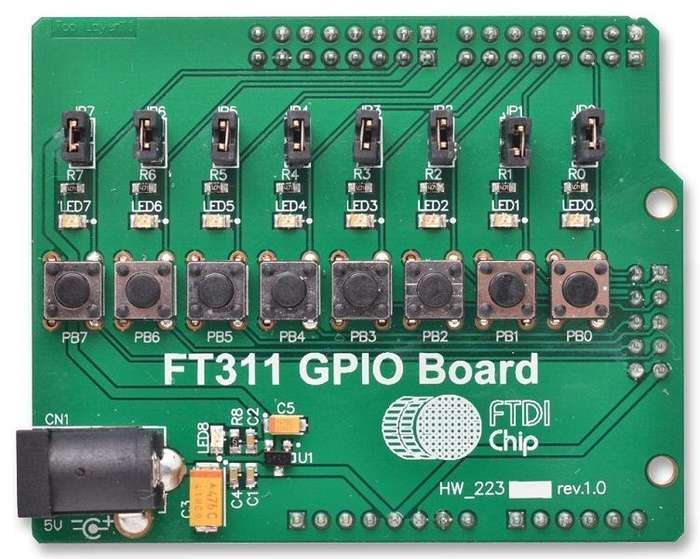

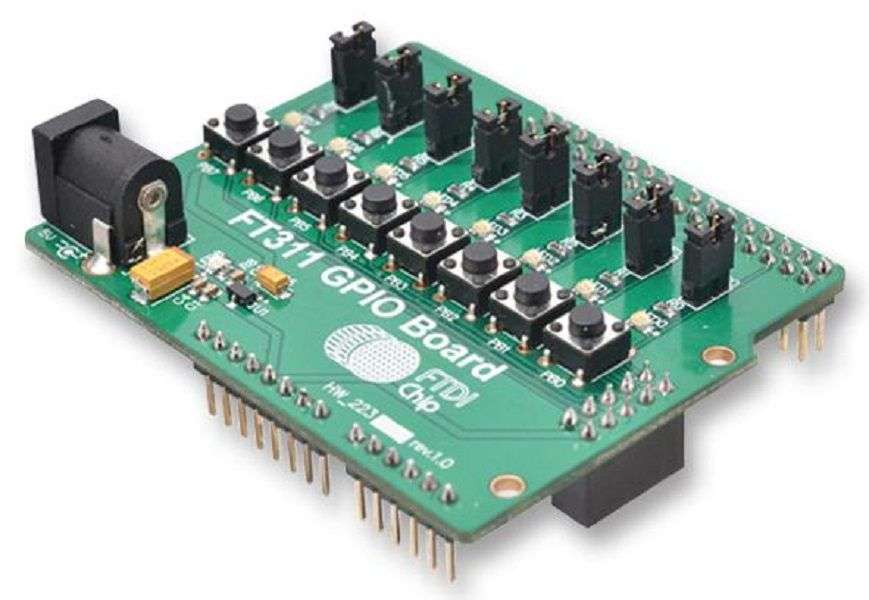

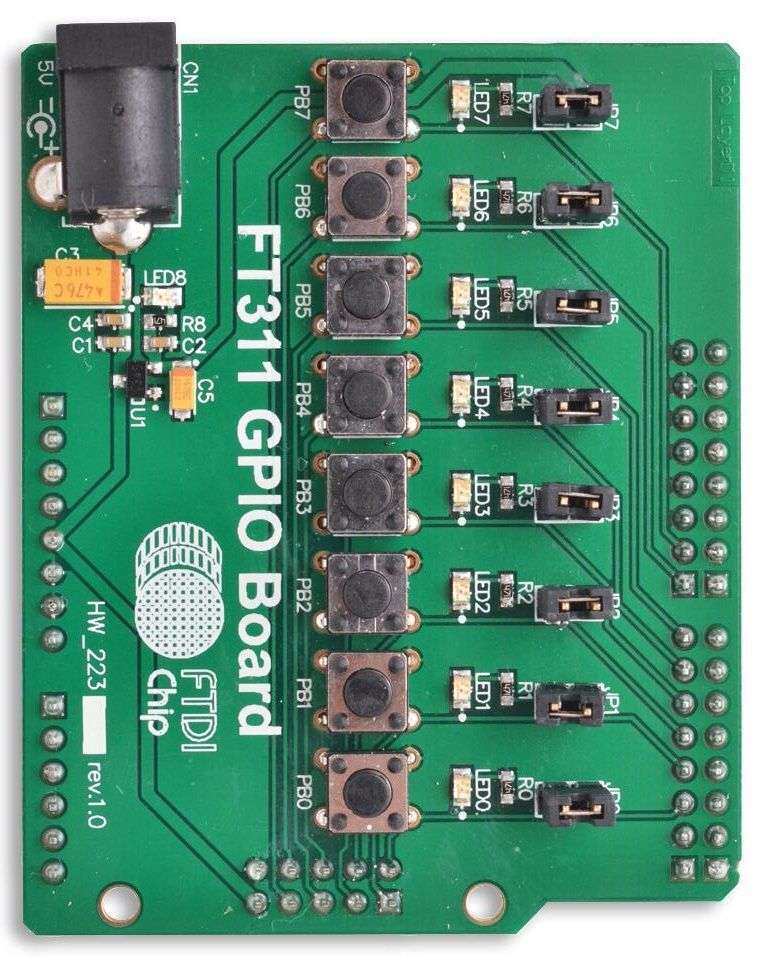

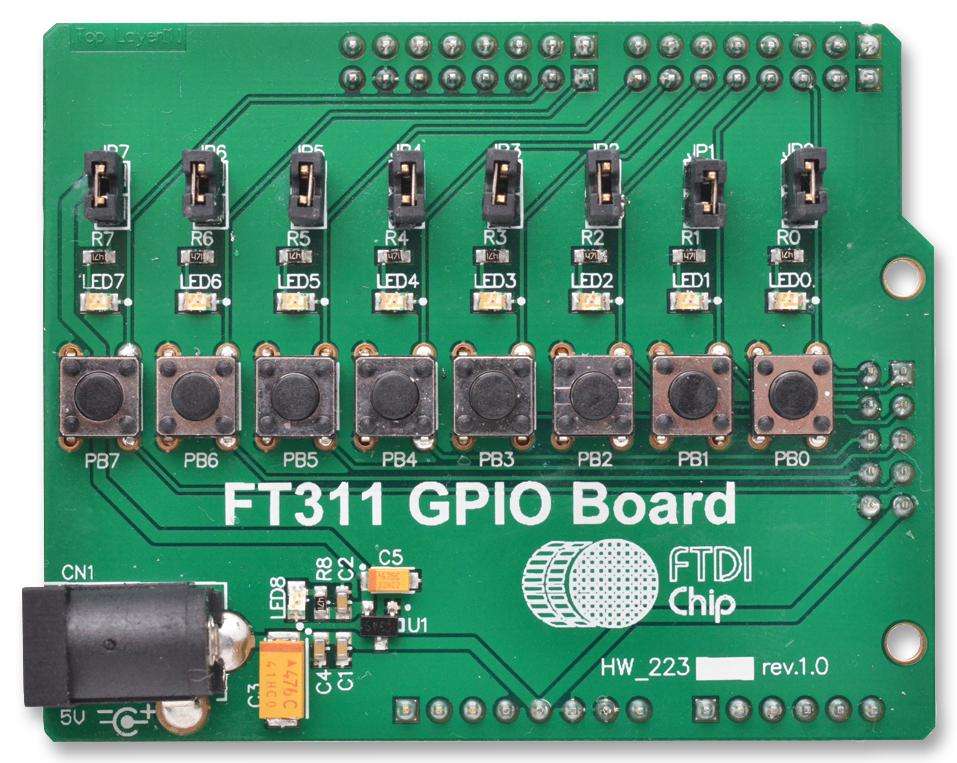

Product OverviewUMFT311GP is a FT311 GPIO board. This is a shield board used with FT311Ddevelopment module. This board has push button keypad which can be used as auser input and LED which can be used as output. Suitable applications are the 8LEDs are used as GPIO output indicators, the 8 push button switches are used asuser input for GPIO input.8 GPIO lines interface8 LEDs controlled through the GPIO interface8 push button switch to be used as user input which is connected to GPIOinterface5V single supply operationBoard supply current is 300mABoard Dimension is 66.60mm x 55.38mm x 22mm (L x W x H)Extended operating temperature range from -40 to 85 CSuitable for use with FT311D moduleSuitable for use with FT311D development boardSuitable for use with Vinco development moduleProduct InformationAccessory Type: Shield BoardFor Use With: FT311D Development ModulesProduct Range: -
