Ftdi (CHIPI-X10) Cable, USB - DB9 Male RS232, Chipi-X Series, 100mm

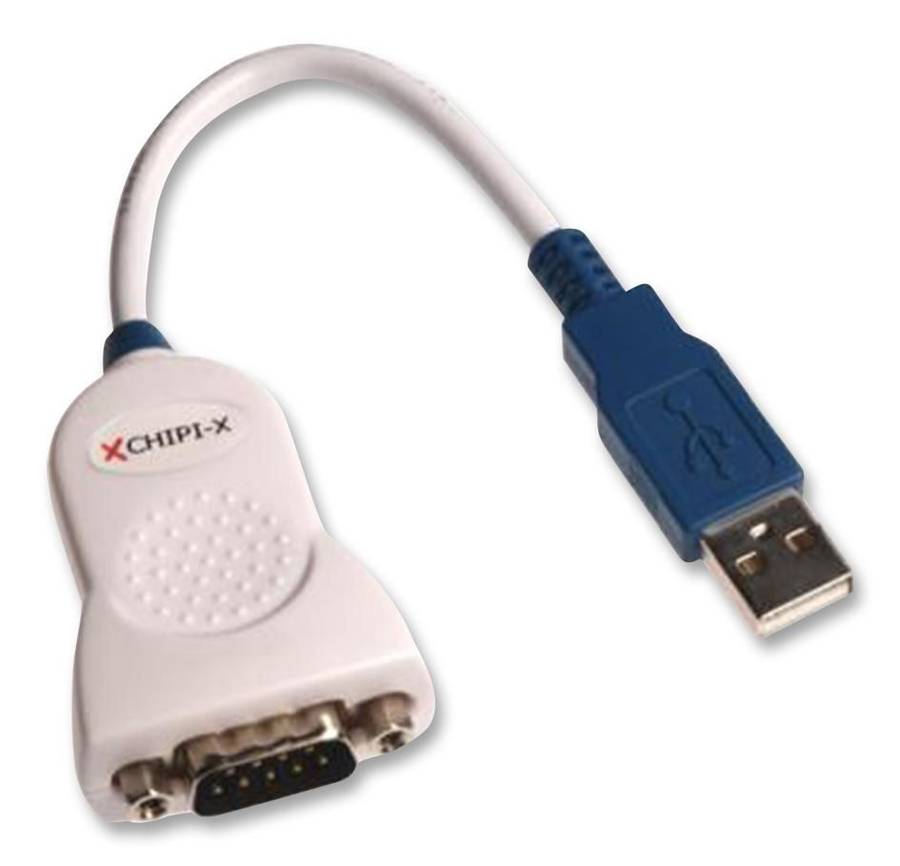

Product InformationConversion Type: USB to RS232 ConverterBaud Rate: 250KbaudConverter Connector Type: D Sub 9 Position PlugChip Type: FT231XSCable Length - Metric: 100mmCable Length - Imperial: 4"Product Range: Chipi-XProduct OverviewThe CHIPI-X10 is a USB to RS232 level full handshake UART cable with FT231X USBto full handshake UART IC and FT3243S RS232 transceiver IC. It utilises theminimum number of components required for a basic USB to RS232 converterdesigned using the FT231XS chip combined with an RS232 level converter and a fewcapacitors. Chipi-X10 is CE and FCC approved and is one of the simplest USB toRS232 solutions around. Using a standard DB9 connector and powered from the USBport, the Chipi-X10 converter can be used with VCP drivers to provide a COM porton a PC which is capable of communication rates with RS232 devices, from 300Baudup to 250KBaud. This Chipi - X10 is supplied with a sculpted matt white plasticenclosure fitted, which covers the electronics inside. A male DB9 (aka DE9)connector provides the connectivity for RS232 communications and a USB-A plugtethered by a 10cm cable to the PCB provides connectivity for USBcommunications.VCP and D2XX drivers eliminate the requirement for USB driver development inmost casesUART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd/even/mark/space/no parityFully assisted hardware or X on/X off software handshaking512B receive buffer and 512byte transmit buffer utilising buffer smoothingtechnologyAdjustable receive buffer timeoutLow operating and USB suspend currentLow USB bandwidth consumptionUSB 2.0 full speed compatibleLatch up freeIntegrated MTP-ROM for storing USB VID, PID, serial number and productdescription stringsApplicationsCommunications & Networking, Audio, Imaging, Video & Vision, Sensing &Instrumentation, Industrial, Consumer Electronics, Wireless, Portable Devices
