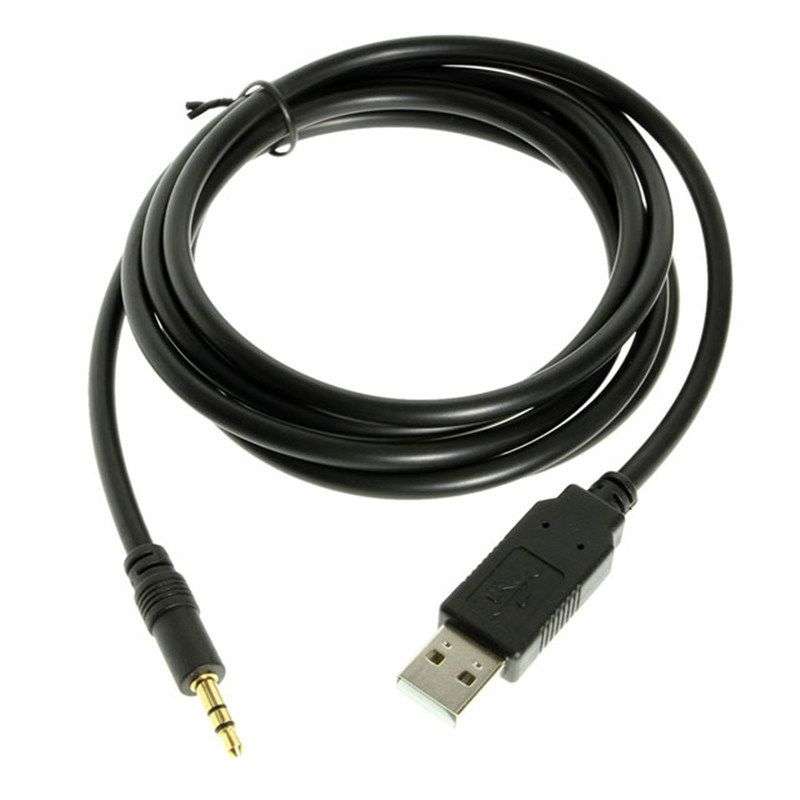

Ftdi (TTL-232R-3V3-AJ) Cable, USB to TTL, Serial Converter, 3V3, Audio Jack

Product InformationConversion Type: USB to 3.3V TTL ConverterBaud Rate: 3MbaudConverter Connector Type: 3.5mm Audio JackChip Type: FT232RCable Length - Metric: 1.8mCable Length - Imperial: 5.9ftProduct Range: FT232Product OverviewThe TTL-232R-3V3-AJ from FTDI is an USB to UART cable with +3.3V TTL level UARTsignals. It incorporates FTDI's FT232RQ USB to serial UART interface IC whichhandles all the USB signalling and protocols. The cable provides fast, simpleway to connect devices with TTL level serial interface to USB. It contains smallinternal electronic circuit board utilising FT232R which is encapsulated intoUSB connector at end of the cable. The cable is terminated with 3.5mm audio jack(AJ) connector at other and. The USB side of the cable is USB powered and USB2.0 full speed compatible.Cable length of 1.8m (6feet)UHCI/OHCI/EHCI host controller compatibleDiameter of 5mm24AWG, 2 core and spiral cableData transfer rates from 300baud to 3Mbaud at TTL levelsConnect directly to a microcontroller UART or I/O pinsLow USB bandwidth consumptionFCC and CE compliantSupport for FT232R FTDIChip-ID feature for improved securityOperating temperature range from -40°C to 85°C
