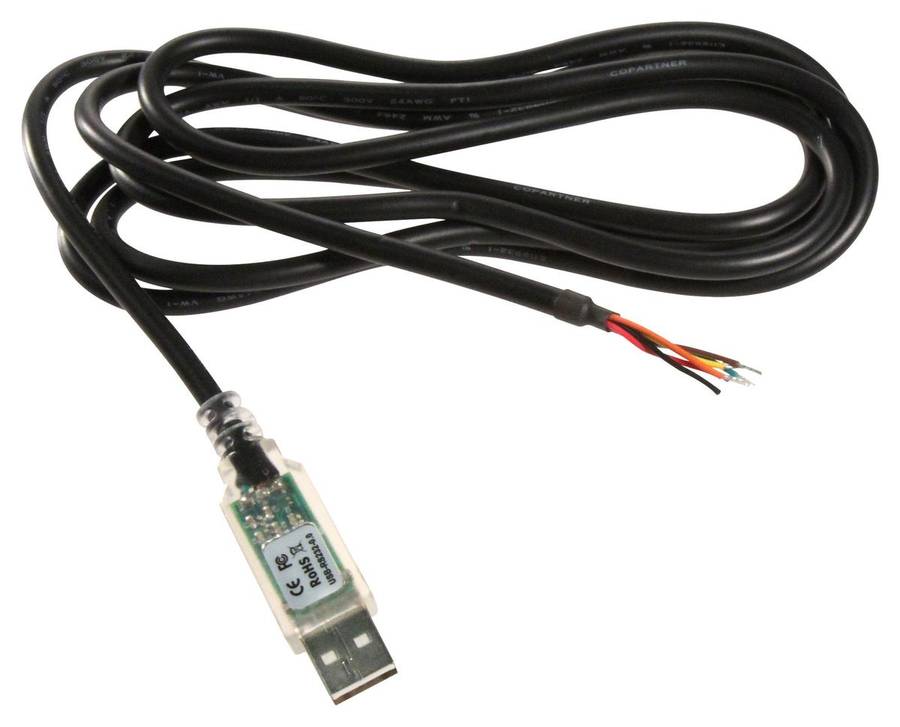

Ftdi (USB-RS232-WE-1800-BT_0.0) Cable USB A to RS232, Serial Convertor 1.8m

Product InformationConversion Type: USB to RS232 ConverterBaud Rate: 1MbaudConverter Connector Type: Free / Stripped EndChip Type: FT232RCable Length - Metric: 1.8mCable Length - Imperial: 5.9ftProduct Range: FT232RQProduct OverviewThe USB-RS232-WE-1800-BT-0.0 from FTDI is an USB to UART cable with RS232 levelUART signals. It incorporates FTDI's FT232RQ USB to serial UART interface ICwhich handles all USB signalling and protocols. The cable provides fast, simpleway to connect devices with RS232 level serial UART interface to USB. Itcontains a small internal electronic circuit board utilising the FT232R which isencapsulated into USB connector at one end of cable. The other end of cable isbare, tinned wire ended connections. The integrated electronics also includeRS232 level shifter, Tx and Rx LEDs which give a visual indication of traffic oncable. The USB side of cable is USB powered and USB 2.0 full speed compatible.Black cable and transparent USB connector24AWG, 6 core cableCable length of 1.8m (6feet)Diameter of 5mmEIA/TIA-232 and V.28/V.24 communication interface with low power requirementsPower supply output on red wire is 0VFCC and CE compliantMaximum UART baud rate of 1MbaudSupport for FT232R FTDIChip-ID feature for improved securityOperating temperature range from -40°C to 85°C
