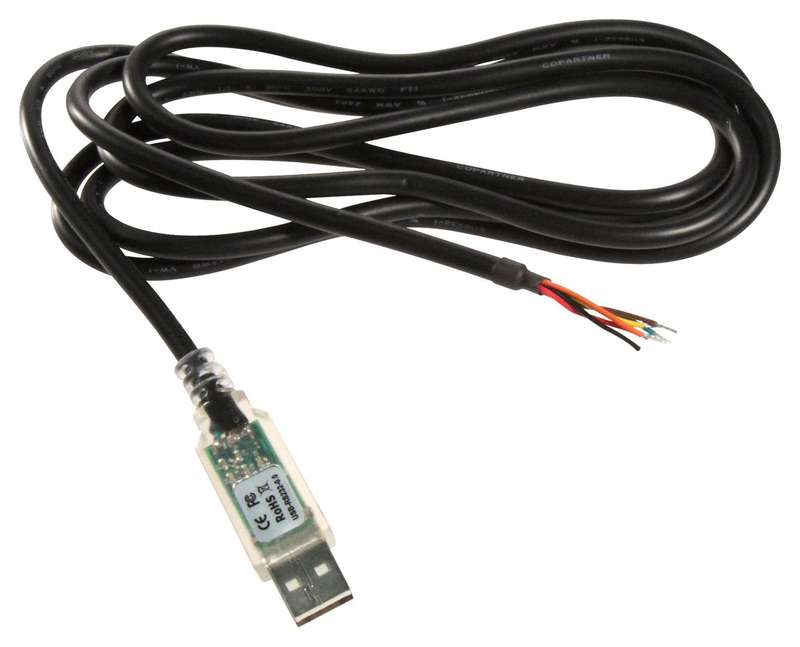

FTDI (USB-RS232-WE-1800-BT_5.0) USB Type A to Free End, 5 V, 1.8 m

Product InformationConversion Type: USB to RS232 ConverterBaud Rate: 1MbaudConverter Connector Type: USB Type A to Free EndChip Type: FT232RCable Length - Metric: 1.8mCable Length - Imperial: 5.9ftProduct Range: USB to RS232 InterfaceProduct OverviewThe USB-RS232-WE-1800-BT_5.0 is an USB to RS232 levels serial UART convertercable with 1.8m cable length and 5V power supply output. It incorporates FT232RQUSB to serial UART interface IC which handles all the USB signalling andprotocols. The cables provide a fast, simple way to connect devices with a RS232level serial UART interface to USB. It contains a small internal electroniccircuit board, utilising the FT232R, which is encapsulated into USB connectorend of cable. The integrated electronics also include the RS232 level shifterplus Tx and Rx LEDs which give a visual indication of traffic on the cable. Theother end of the cable is bare, tinned wire ended connections by default. TheUSB side of the cable is USB powered and USB 2.0 full speed compatible. Thecable supports the FTDIChip-ID, with a unique USB serial number programmed intothe FT232R. The USB to RS232 cables require USB drivers, which are used to makethe FT232R in the cable appear as a virtual COM port (VCP).Black cable and transparent USB connectorEntire USB protocol handled by the electronics in the cable USBEIA/TIA-232 and V.28/V.24 communication interface with low power requirementsUART interface support for 7 or 8 data bits, 1 or 2 stop bits andodd/even/mark/space/no parityInternal EEPROM with user writeable areaData transfer rates from 300baud to 1MbaudLow USB bandwidth consumptionUHCI/OHCI/EHCI host controller compatibleESD protection for RS232 I/O'sFully assisted hardware (RTS#/CTS#) or X-on/X-off software handshakingApplicationsCommunications & Networking, Sensing & Instrumentation, Industrial, Security,Automotive
