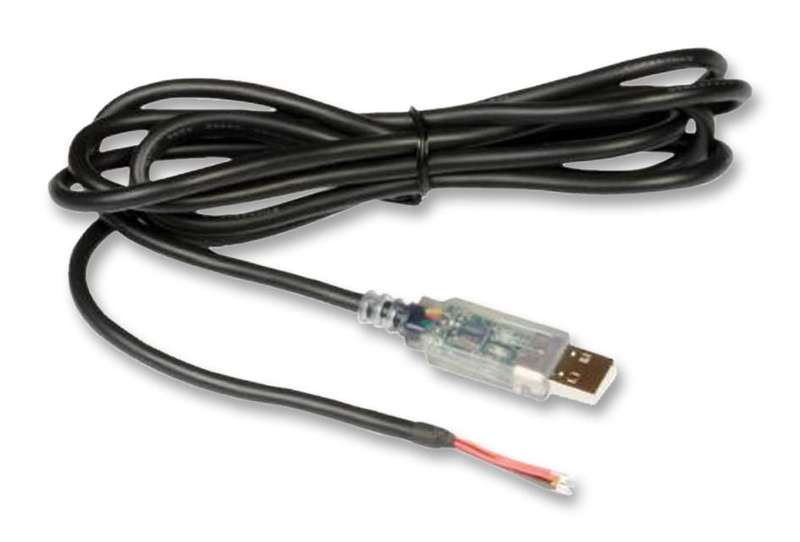

Ftdi (USB-RS232-WE-5000-BT_3.3) Cable, USB to RS232, FT232R, 5m

Product InformationConversion Type: USB to RS232 ConverterBaud Rate: 1MbaudConverter Connector Type: Free / Stripped EndChip Type: FT232RCable Length - Metric: 5mCable Length - Imperial: 16.4ftProduct OverviewThe USB-RS232-WE-5000-BT_3.3 is an USB to RS232 levels serial UART ConverterCable, incorporating FTDI's FT232RQ USB to serial UART interface IC device whichhandles all the USB signalling and protocols. The cables provide a fast, simpleway to connect devices with a RS232 level serial UART interface to USB. EachUSB-RS232 cable contains a small internal electronic circuit board, utilizingthe FT232R, which is encapsulated into the USB connector end of the cable. Theintegrated electronics also include the RS232 level shifter plus Tx and Rx LEDswhich give a visual indication of traffic on the cable. The other end of thecable is bare, tinned wire ended connections by default, but can be customizedusing different connectors to support various applications.USB-RS232 converter cable provides a USB to RS232 serial interface withcustomized end connectorsEntire USB protocol handled by the electronics in the cable USBEIA/TIA-232 and V.28/V.24 communication interface with low power requirementsInternal EEPROM with user writeable areaData transfer rates from 300baud to 1MbaudSupport for FT232R FTDIChip-ID for improved securityLow USB bandwidth consumptionUHCI / OHCI / EHCI host controller compatibleUSB 2.0 full speed compatible
