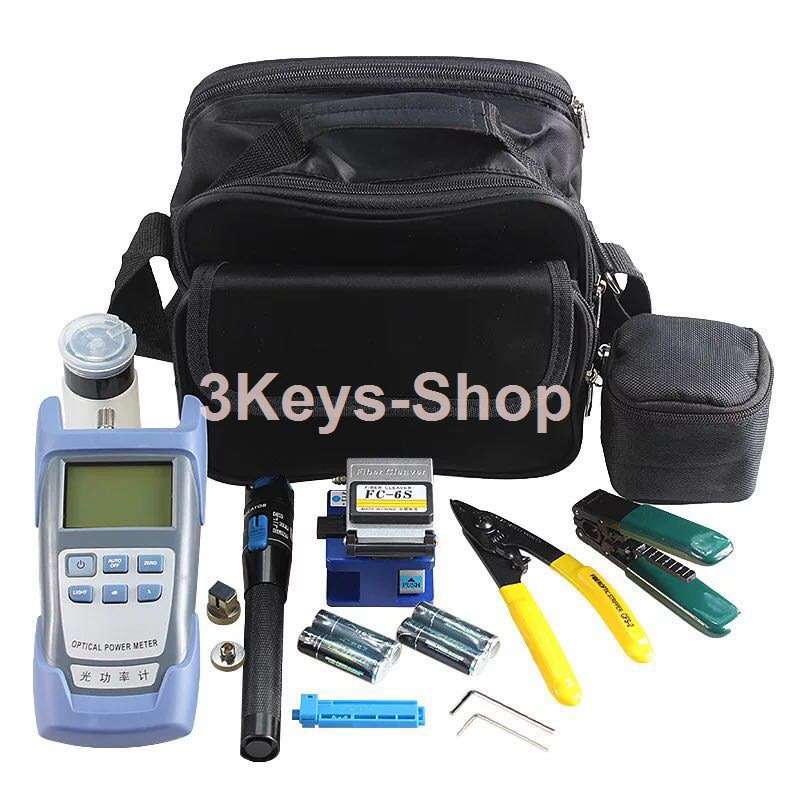

  Fiber Optic FTTH Tool Kit FTTH Assembly Optical Fiber Termination Tool Kit with FC-6S Cleaver Optical Power Meter Visual Fault Locator Finder Cable Cutter Stripper 5km

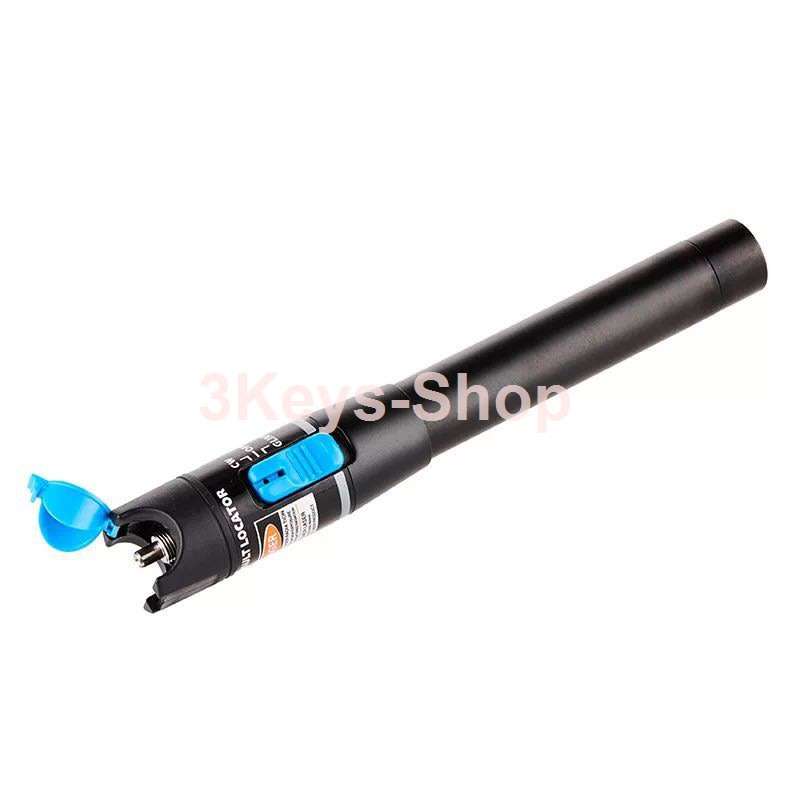

This is a multi-purpose toolkit,it can provides the tools necessary for the assembly of mechanical splices and it will bring you a higher working efficiency. 1mW Visual Fault Locator Fiber Optic Cable Tester Meter for CATV

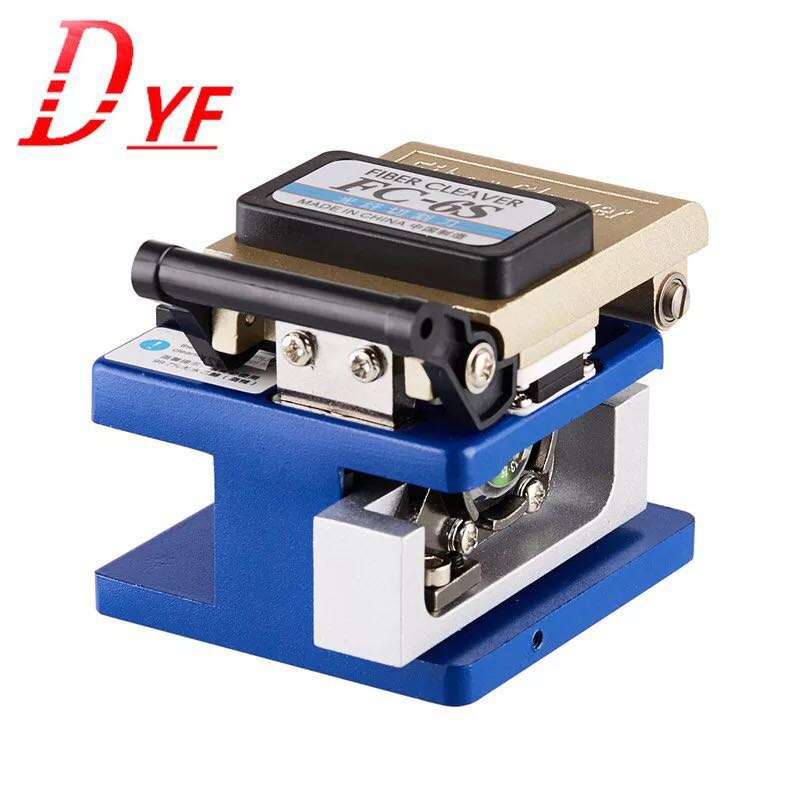

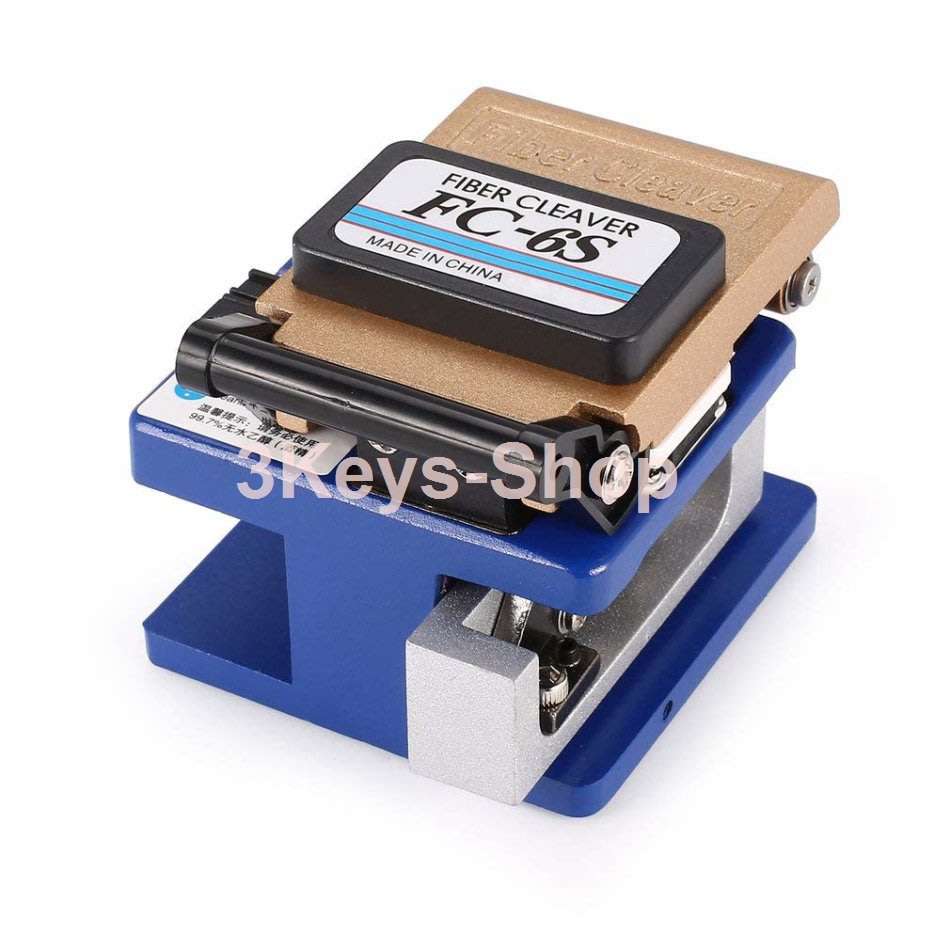

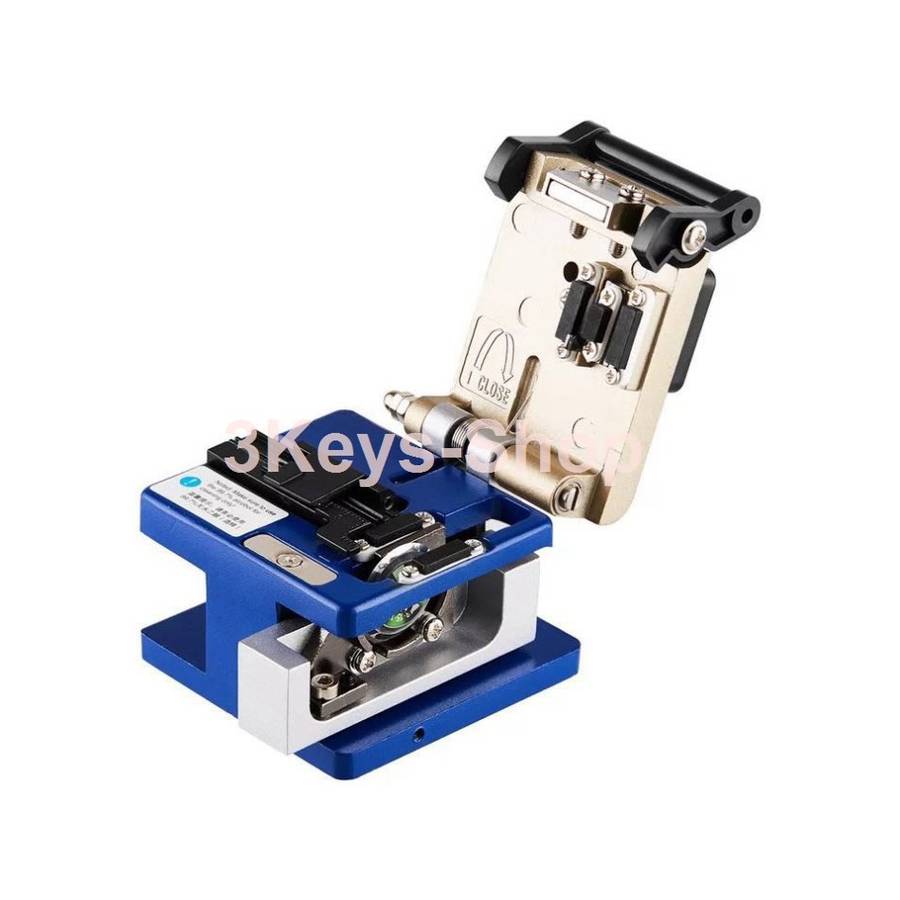

The FC-6S fiber optic cleaver is used for single fiber cleaving. This FC-6S optical fiber cleaver is available with a single fiber adapter for 250 to 900 micron coated single fibers. It is a simple operation for the user to remove or install the single fiber adapter and alternate between mass and single fiber cleaving.

New Fiber Optic Cable Handle Optical Power Meter -70~+8 dBm FC SC Tester

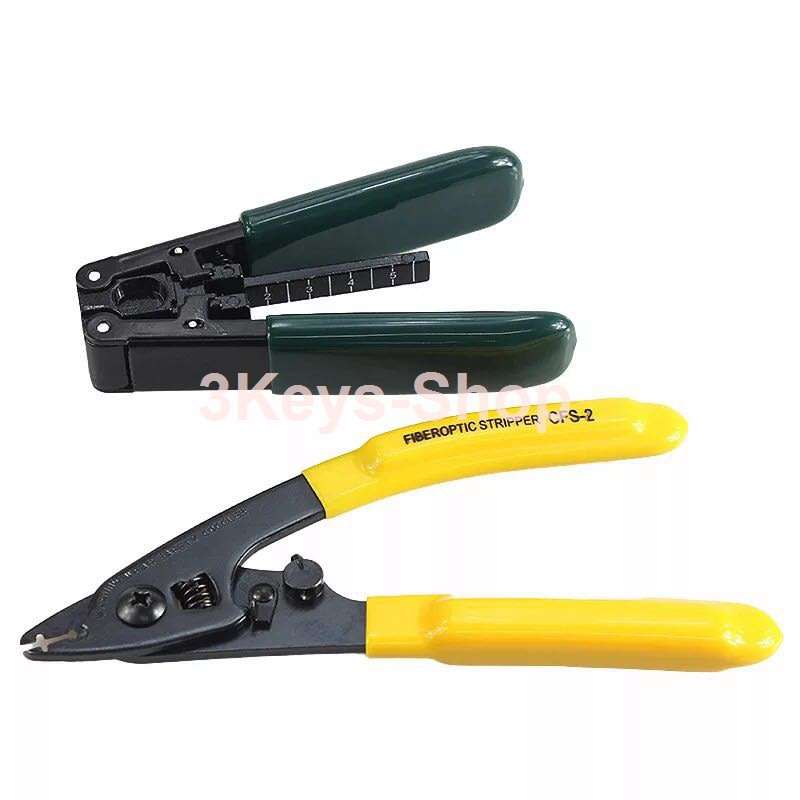

Fixed length guide rail groove 2 1: Can be used for indoor cable stripping coating layer and positioning length It can be used to locate the indoor cable into the optical fiber cutting knife

Product description

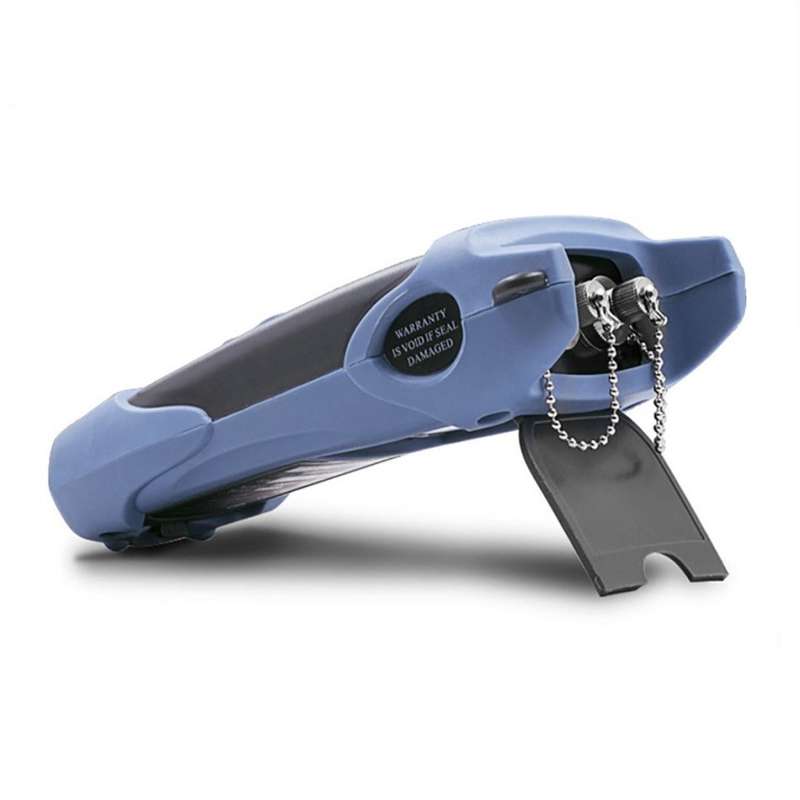

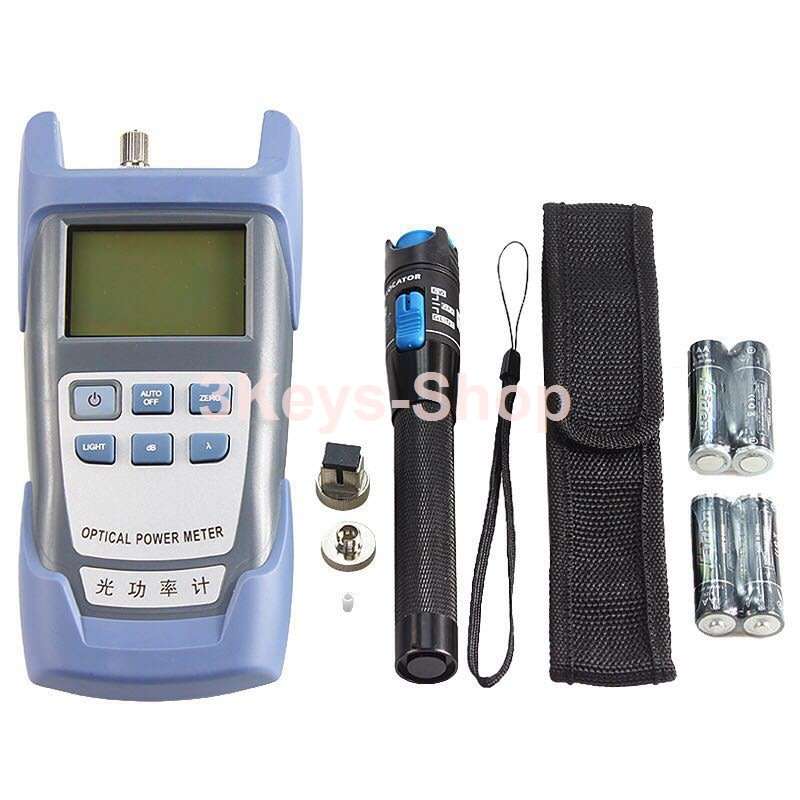

 Portable optical power meter is an accurate and durable handheld meter designed for the installation, operation and maintenance of optical fiber network. It is a compact device with backlight switch and auto power on-off ability. Besides, it provides ultra-wide measurement range, high accuracy, user self-calibration function and universal port. In addition, it displays linear indicators (mW) and non-linear indicators (dBm) in one screen at the same time.

Specification:

Wavelength(nm): 800~1700nm
Detector: InGaAs
Measurement Range (dBm): -70~+10
Uncertainty: ±0.2(5%)
Calibrated Wavelength(nm): 850,980,1300,1310,1490,1550
Resolution(dB): Linear indication: 0.1% Loharithmic indication: 0.01dBm
Optical Connector: FC/ Universal 2.5mm adaptor
Operating Temperature: -10 ~ +60C
Storage Temperature: -25 ~ +70C
Relative Humidity: 0 to 95% (non-condensing)
Dimension(mm): 190×100×48
Weight: 1kg

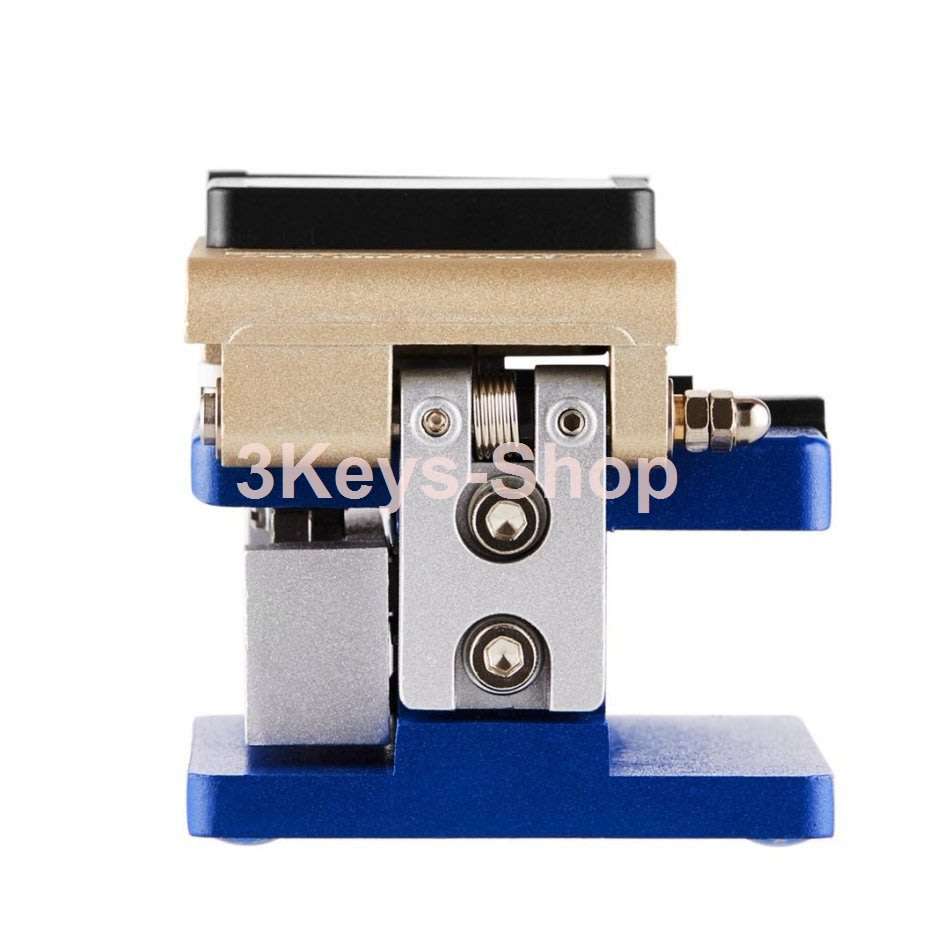

Fiber Cleaver FC-6S Features and  Functions :high quality fiber cutting knife (recommended for FTTH cold welding, hot melt connection is not recommended for the use of this paragraph). Simple operation; single core fiber for single mode or multimode cutting; 12 cutting end face; blade long life; adjust the peeling length is: 5~20mm; technical specifications: fiber size: 125um; skin diameter: 250~900um.
