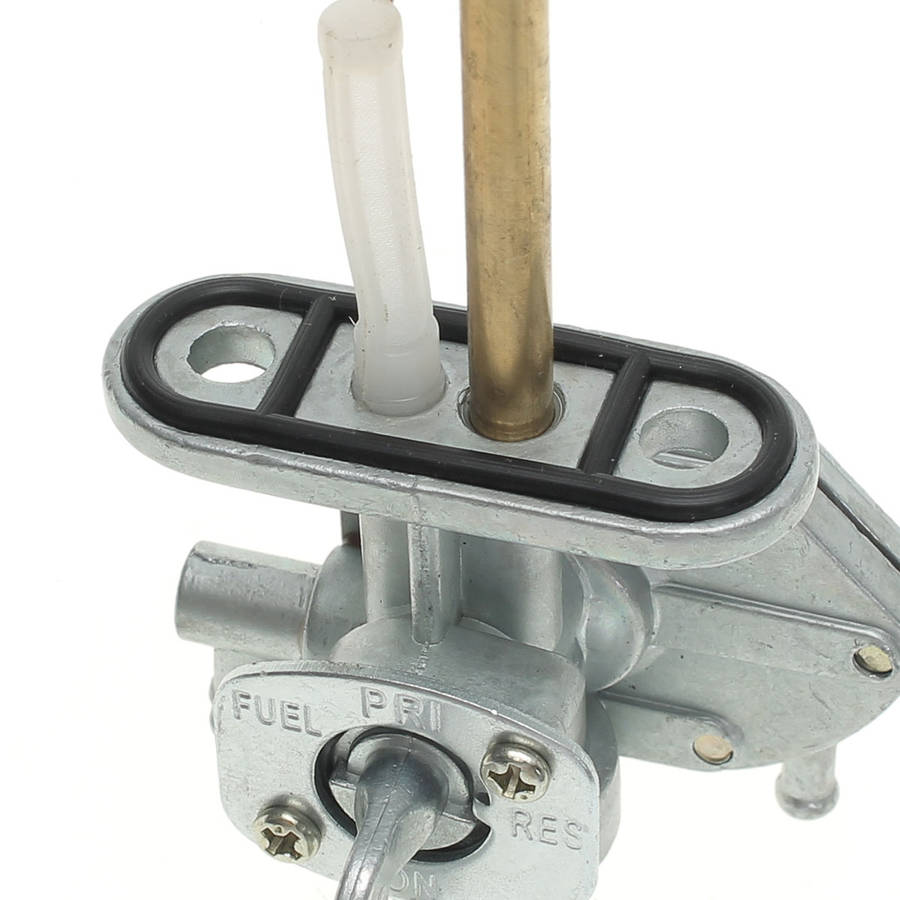

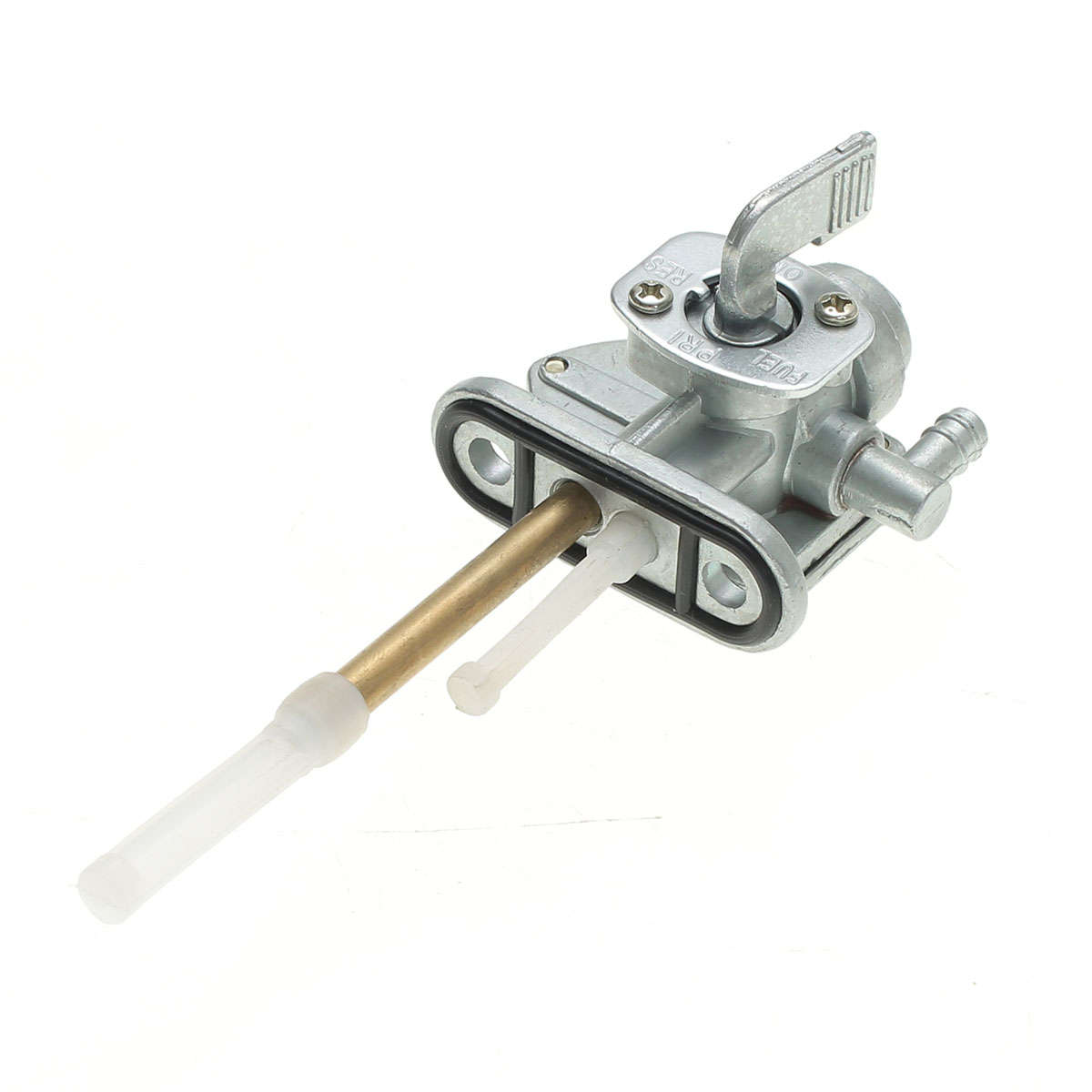

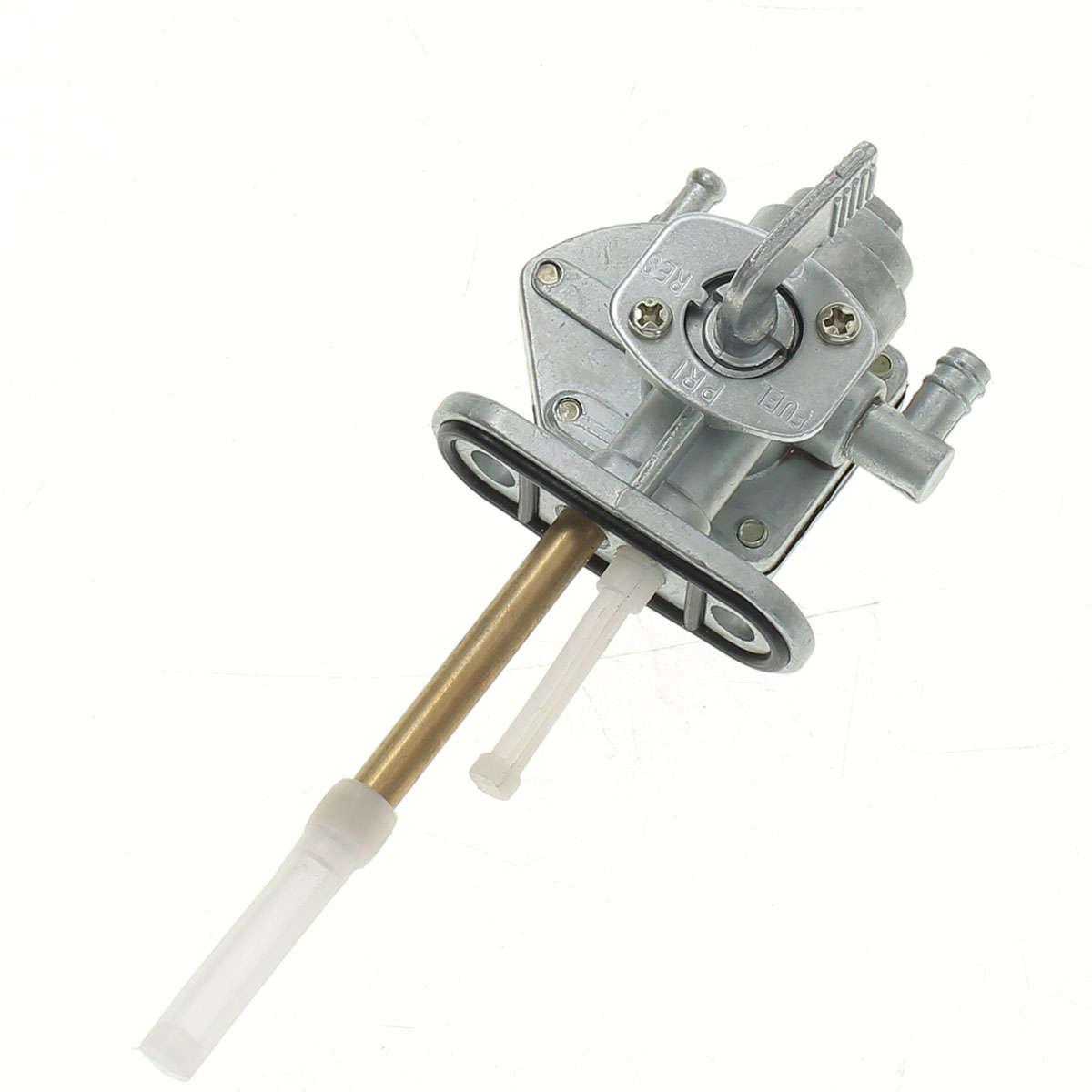

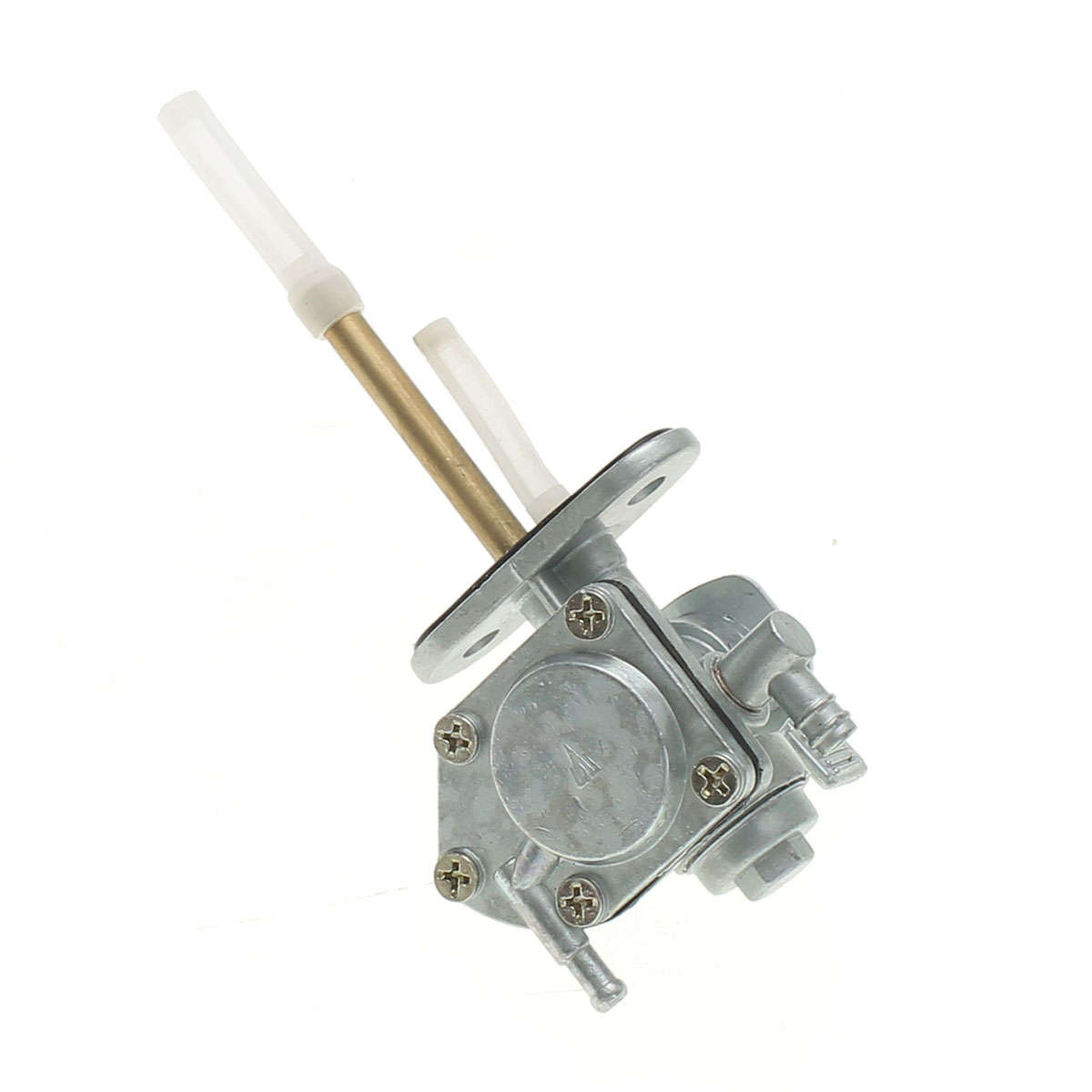

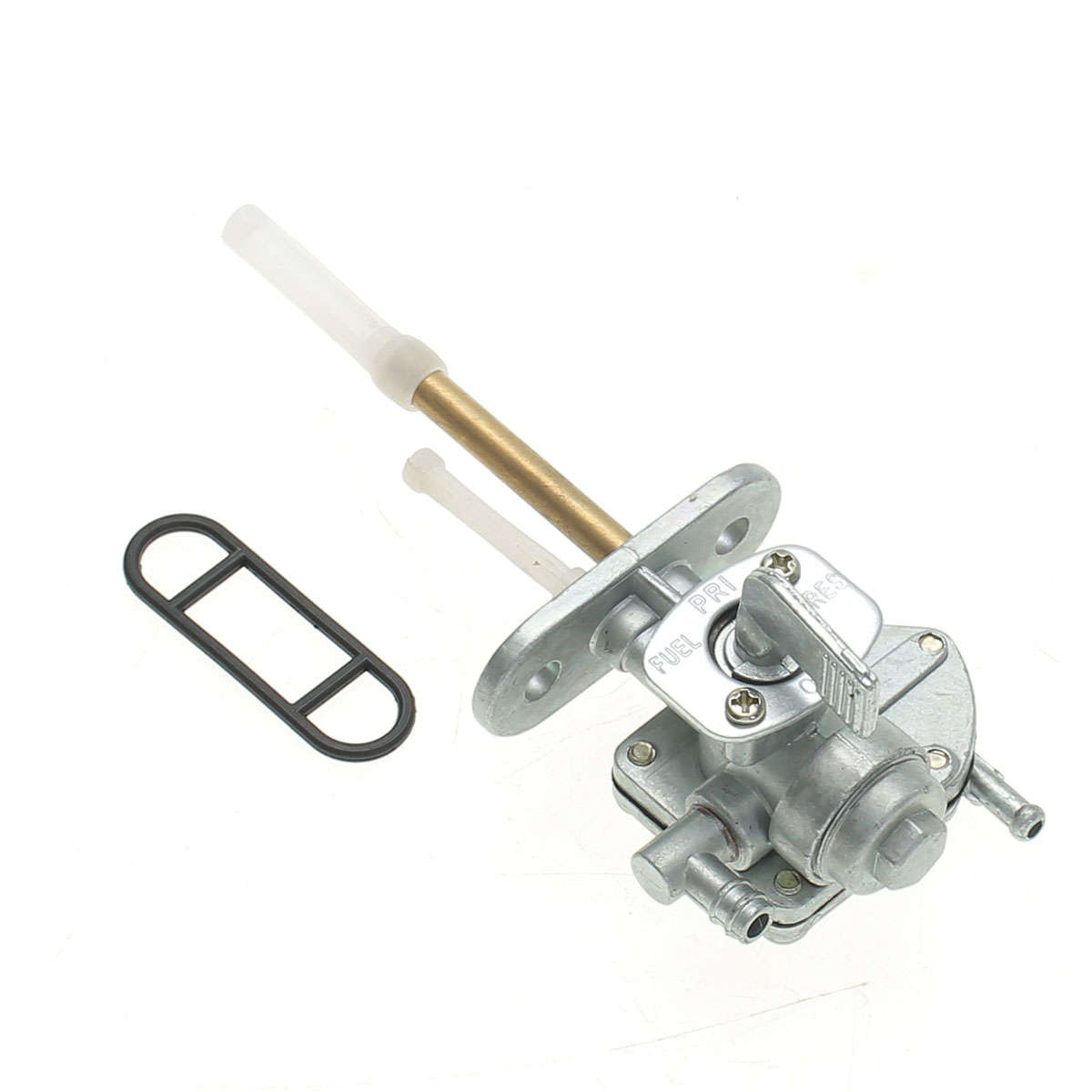

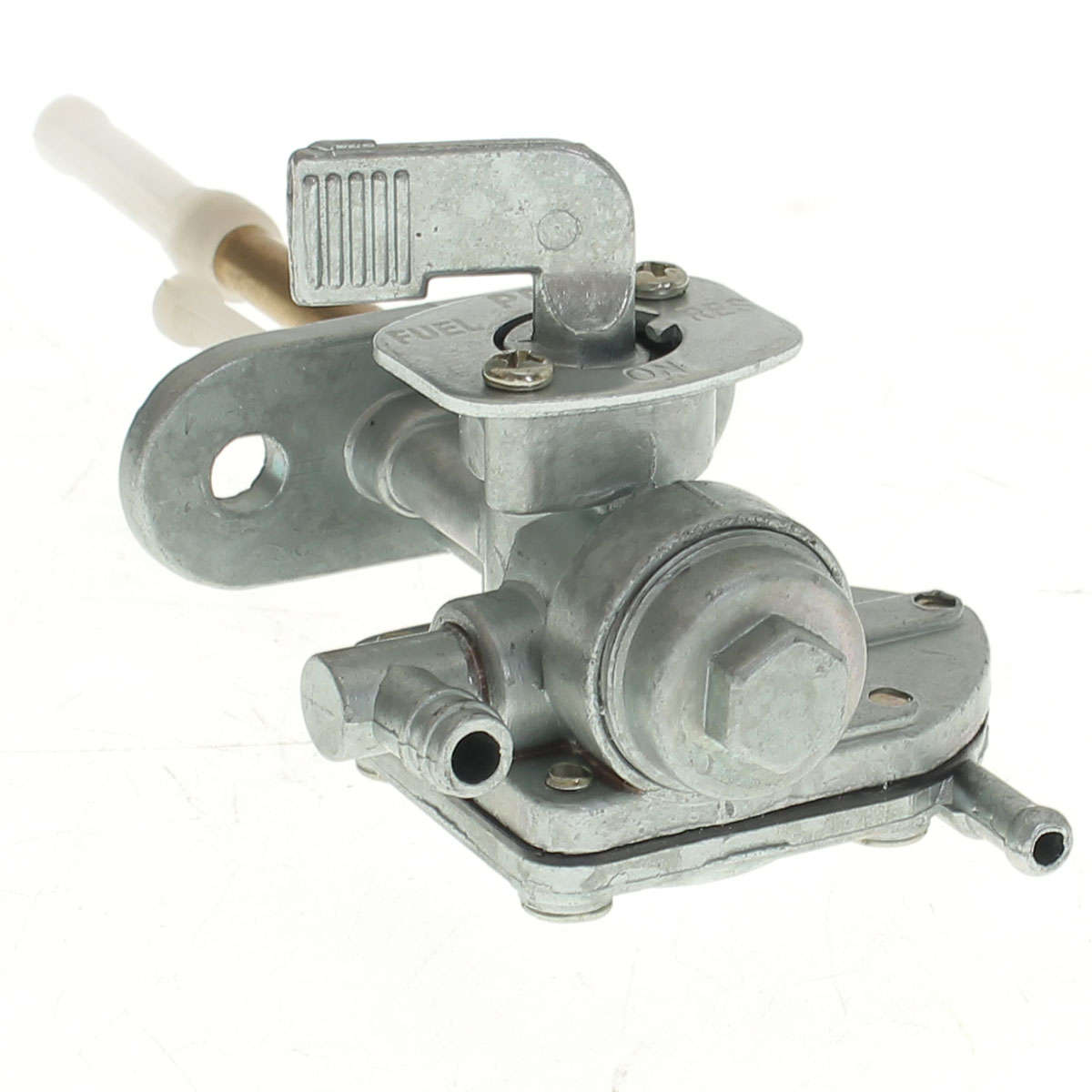

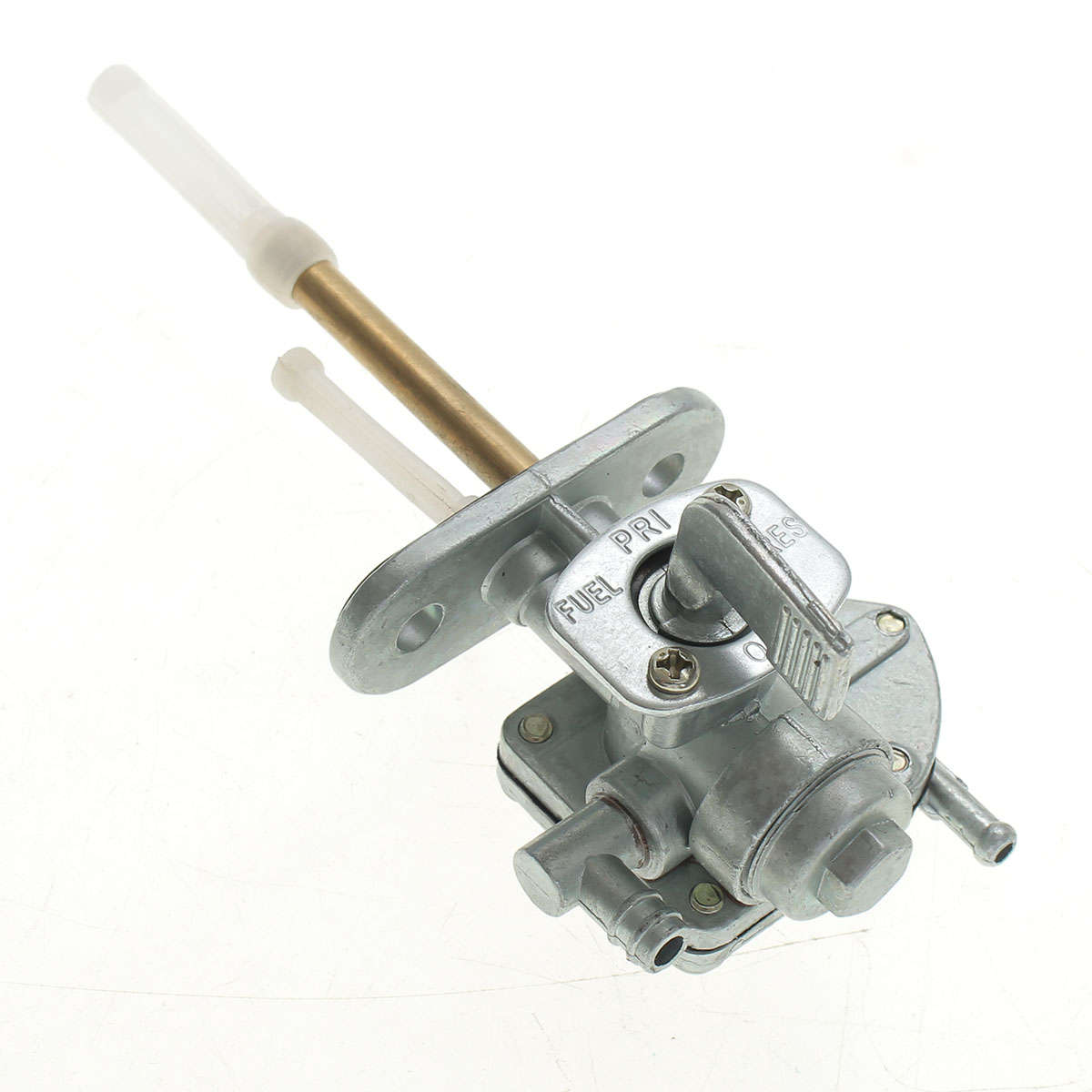

Fuel Gas Petcock Tap Valve Switch Pump For Suzuki DRZ400E DRZ400S DRZ400SM Dirt

Fuel Gas Petcock Tap Valve Switch Pump For Suzuki DRZ400E DRZ400S DRZ400SM Dirt


Specification:

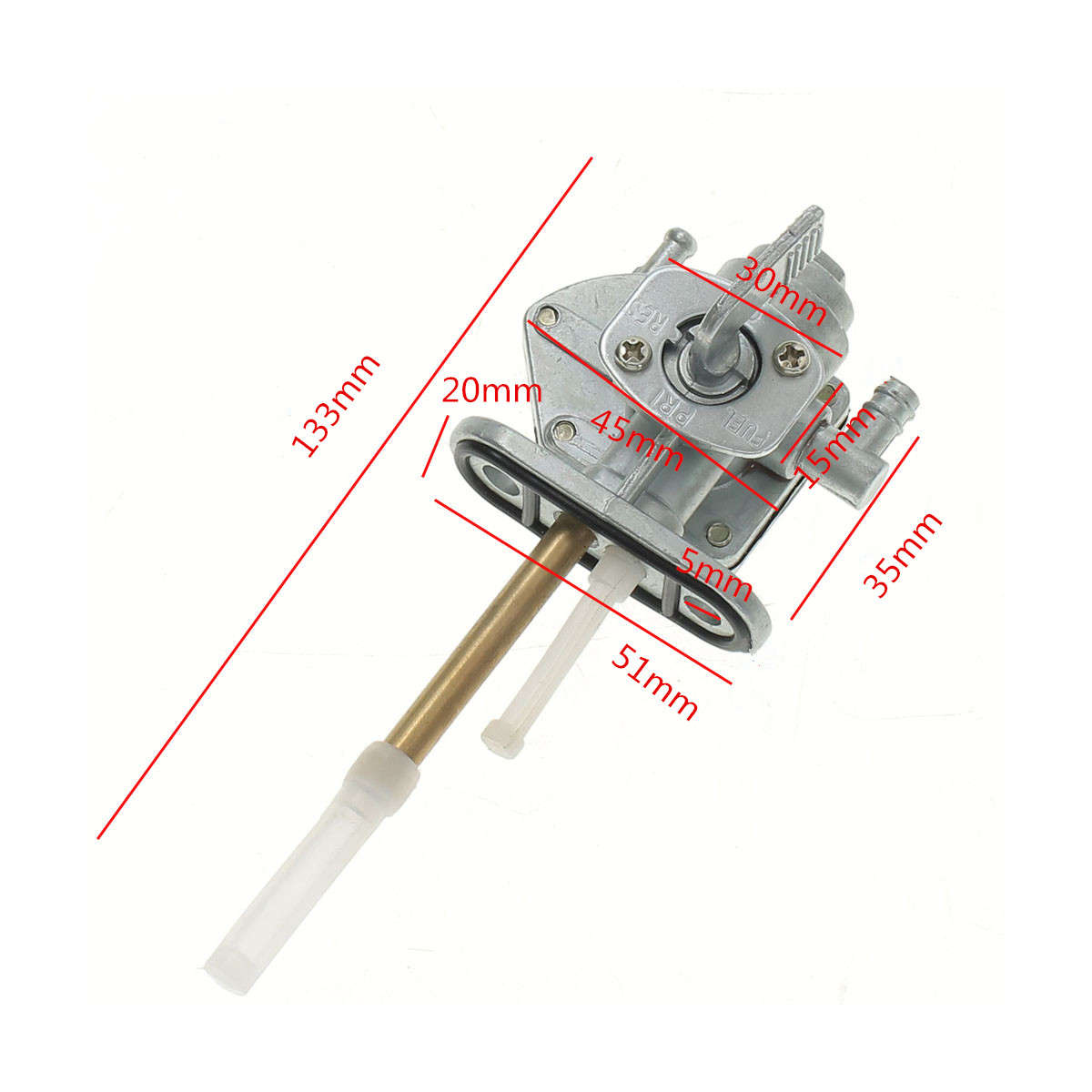

Dimension:
Inside diameter of mounting holes: 5mm
Overall length of mounting plate: 51mm
Overall width of mounting plate: 20mm
Material:metal
3 positions switch: ON | PRIME | RESERVE
ON: Allow you to operate with normal fill-ups
PRIME: Bypassing the vacuum operation and inject fuel into carburetor without requiring the engine turning over
RESERVE: Allow you to access the lower portion of the gas tank when gas level is low


Fitment:

Suzuki DRZ400E DRZ400S DRZ400SM Dirt Bike
Kawasaki KFX80 all years
Suzuki LT 80 all years
Chinese brands, like TaoTao, Buyang, Coolsport, Lifan Kazuma, SUNL
Components:
Petcock switch
Build-in vacuum diaphragm
Primary copper gas pipe with filter screen
Reserve gas pipe with filter screen
Flanged ring seal


Note:

1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.
2. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)
3.The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.
4.Instruction is not included.Professional Installation Is Highly Recommended!


Package Included:

1 X Fuel Petcock Valve
