Hilook 4Ch 1Tb Ssd Nvr With 4 Poe
4 x Tiandy 2mp Ip Bullet Camera 4mm
Hilook4Ch 1Tb Ssd Nvr With 4 Poe
SSD NVR
Powered by eSSD technology
Low power consumption
H.265+/H.265/H.264+/H.264 video compression
Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
Up to 4-ch network camera inputs
Up to 4-ch 1080p decoding capability
Video And Audio
IP Video Input
4-ch
Incoming Bandwidth
40 Mbps
Outgoing Bandwidth
60 Mbps
HDMI Output
1920`d71080/60Hz`a3`ac1600`d71200/60Hz`a3`ac1280`d71024/60Hz`a3`ac1280`d7720/60Hz
Decoding
Decoding Format
H.265,Smart265,H.264,Smart264
Recording Resolution
4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback
4-ch
Decoding Capability
4-ch@1080p (25 fps)
Stream Type
Video, Video & Audio
Audio Compression
G.711ulaw/G.711alaw/G.722/G.726
Network
Remote Connection
128-ch
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, NFS, iSCSI, ISUP,UPnP`99, HTTP, HTTPS
Network Interface
1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
Interface
4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power
36 W
Standard
IEEE 802.3 af/at
Auxiliary Interface
Capacity
1TB SSD (pre-installed)
USB Interface
Rear panel: 2 `d7 USB 2.0

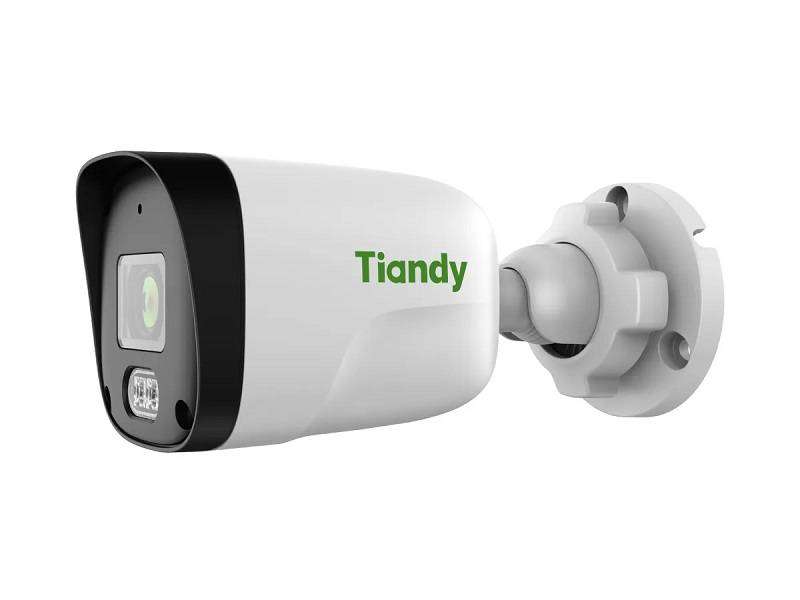

Tiandy2mp Ip Bullet Camera 4mm
2MP Fixed IR Bullet Camera TC-C321N Spec:I3/E/Y/2.8mm/V2.0
Camera
Image Sensor
1/3CMOS
Min. Illumination
Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR
Shutter Time
1s~1/100000s
Day&Night
IR-cut filter with auto Switch (ICR)
Smart IR
Yes
WDR
DWDR
S/N
>47.8dB
Angle Adjustment
0~360`b0(P); 0~80`b0(T); 0~360`b0(R)
Lens
Lens Type
Fixed focal lens
Focal Length
2.8mm
Lens Mount
M12
Aperture Range
F2.0
Aperture Type
Fixed
Field of View
94.4`b0(H); 53.2`b0(V); 108.2`b0(D)
DORI Distance
Detect:41.48m Observe:16.46m Recognize:8.3m Identify:4.1m
Illuminator
IR LEDs
2
IR Distance
Up to 30m
Wavelength
850nm
Compression Standard
Video Compression
S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate
32k~4Mbps
Audio Compression
G.711A/G.711U
Audio Sampling Rate
8kHz
Max. Resolution
2MP,1920`d71080@30fps
Main Stream
PAL:25fps(1920`d71080, 1280`d7720, 704`d7576, 640`d7480)NTSC:30fps(1920`d71080, 1280`d7720, 704`d7480, 640`d7480)
Sub Stream
PAL:25fps(704`d7576, 704`d7288, 640`d7360, 352`d7288)NTSC:30fps(704`d7480, 704`d7240, 640`d7360, 352`d7240)
BLC
Yes
HLC
Yes
AGC
Yes
3D DNR
Yes
White Balance
Auto/Semi-Auto/Manual/Sunshine/Nature Light/WarmlightLamp/Daylight Lamp/Filament Lamp/Lock White Balance
OSD
Overlay of additional characters in 1 regions, 1 line, witha maximum of 48 characters or 16 Chinese characters per region;16*16/32*32/48*48
Privacy Mask
4 black static areas
Defog
Yes
Feature
General Alarm
Motion Detection
Exceptions Alarm
IP Address Conflict
Network
Protocols
HTTP; TCP/IP; UDP; ICMP; DHCP; DNS; NTP; TLS v1.2; IPv4;Telnet; Unicast
System Compatibility
ONVIF(Profile S/T) ; SDK; CGI; Milestone; RTSP
Remote Connection
2
Client
Easy7 VMS
Web
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Interface
Communication Interface
1*RJ-45 (10/100 Base-T)
Built-in Mic
Yes
