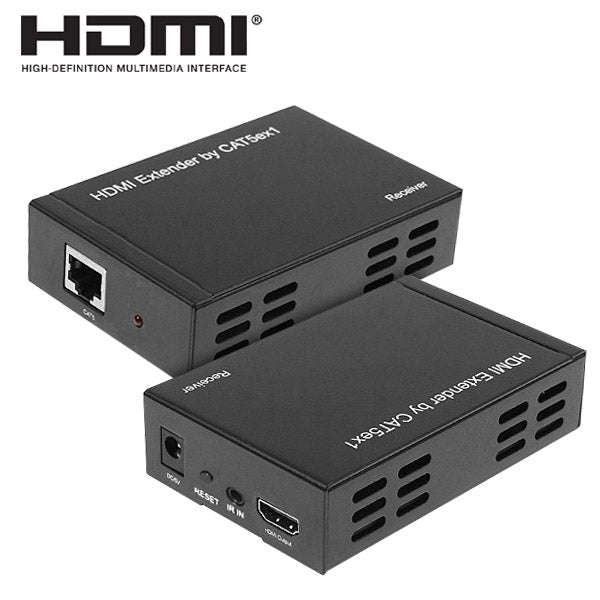

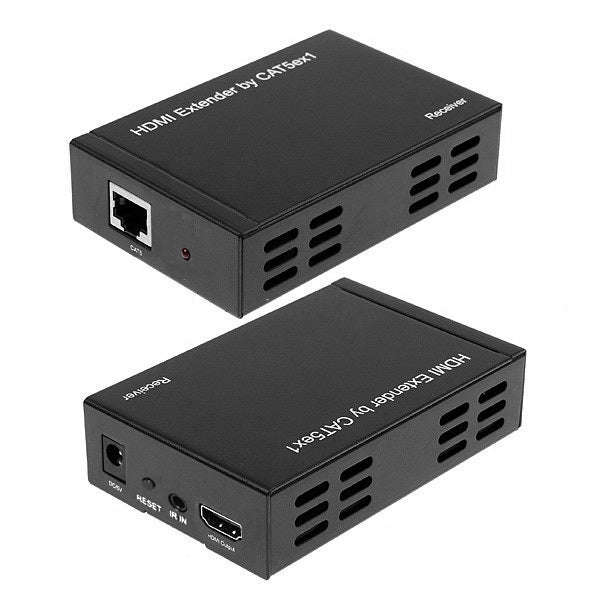

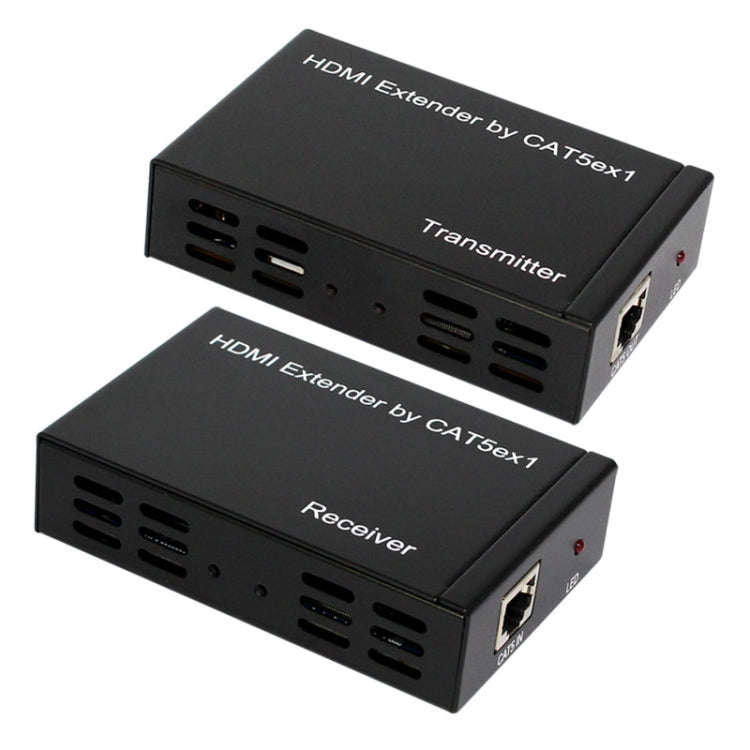

Full HD 1080P HDMI To Extender Transmitter + Receiver over One 100m CAT5E / CAT6 (TCP/IP)
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
S-PC-0965
Bob Shop ID
616254701
The HDMI Extender over ONE CAT 5E/6 is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT 5E/6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. The HDMI transmitter and receiver, over ONE CAT 5E/6 extender is your substantial HDMI extender tool. The HDMI Extender over ONE CAT 5E/6 also support IR re-transmitting, so you can control the Source which is 100 meters outside using the HDMI Extender.
Features:
1) DC 5V~12V wide power supply.
2) HDMI 1.3, HDCP 1.1 and DVI1.1 compliant.
3) Support Deep Color up to 12 bits/color.
4) Support IR re-transmitting.
5) Uses one CAT5E/6 cable for data/DDC transmission.
6) Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality.
7) Cable testing showed that with 1080p resolution the HDMI input source can be 20meters away.
8) When transmitting a signal in 1080p resolution the CAT6 operating distance is 100 meters.

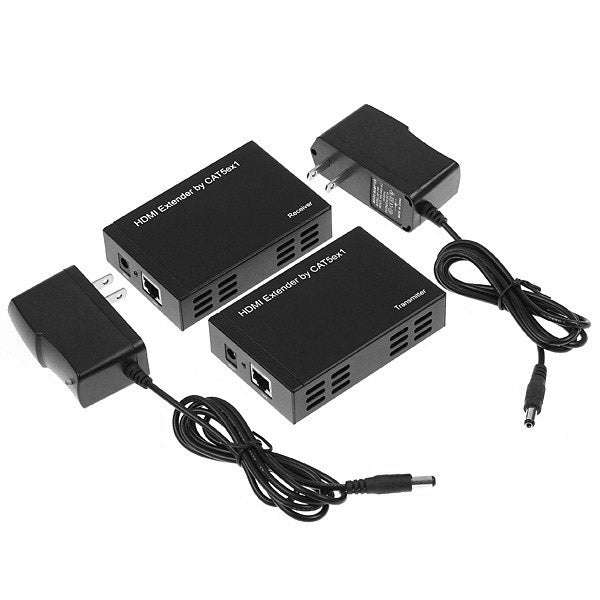

Package:
1) HDMI Extender (Transmitter) 1PC
2) HDMI Extender (Receiver) 1PC
3) IR Transmitter 1PC
4) IR Receiver 1PC
5) 5V DC Power Supply adapter 2PCS
6) Operation Manual 1PC
Specifications:
1) Frequency Bandwidth: 2.25Gbps (single link)

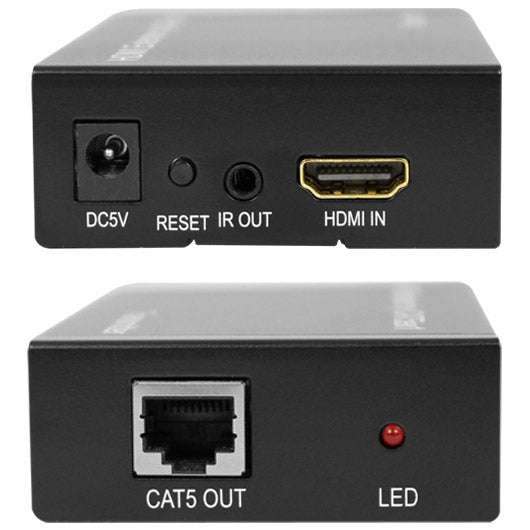

2) HDMI Transmitter Input/Output Ports: 1x HDMI Female port/1 x CAT6
3) HDMI Receiver Input/Output Ports: 1 x HDMI Female port/1 x CAT6
4) Power Supply: DC 5V~12V
5) ESD Protection Human Body Model: 8kV (air-gap discharge), 4kV (contact discharge)
6) Dimensions (mm): 65mm X 100mm X 25mm
7) Operating Temperature: 0C ~ 40C / 32F ~ 104F
8) Storage Temperature: -20C ~ 60C / -4F ~ 140F
9) Relative Humidity: 20~90% RH (non-condensing)
Features:
1) DC 5V~12V wide power supply.
2) HDMI 1.3, HDCP 1.1 and DVI1.1 compliant.
3) Support Deep Color up to 12 bits/color.
4) Support IR re-transmitting.
5) Uses one CAT5E/6 cable for data/DDC transmission.
6) Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality.
7) Cable testing showed that with 1080p resolution the HDMI input source can be 20meters away.
8) When transmitting a signal in 1080p resolution the CAT6 operating distance is 100 meters.
Package:
1) HDMI Extender (Transmitter) 1PC
2) HDMI Extender (Receiver) 1PC
3) IR Transmitter 1PC
4) IR Receiver 1PC
5) 5V DC Power Supply adapter 2PCS
6) Operation Manual 1PC
Specifications:
1) Frequency Bandwidth: 2.25Gbps (single link)
2) HDMI Transmitter Input/Output Ports: 1x HDMI Female port/1 x CAT6
3) HDMI Receiver Input/Output Ports: 1 x HDMI Female port/1 x CAT6
4) Power Supply: DC 5V~12V
5) ESD Protection Human Body Model: 8kV (air-gap discharge), 4kV (contact discharge)
6) Dimensions (mm): 65mm X 100mm X 25mm
7) Operating Temperature: 0C ~ 40C / 32F ~ 104F
8) Storage Temperature: -20C ~ 60C / -4F ~ 140F
9) Relative Humidity: 20~90% RH (non-condensing)
