Specifications:
Processor: RV1106G3 (1 × Cortex-A7 @ 1.2GHz)
Memory: 256MB DDR3 RAM
Storage: 8GB eMMC (expandable via Micro SD card)
Resolution: 1920 × 1080 @ 60fps
Video Codec: H.264
Video Latency: 80ms—200ms
Ethernet Port: 100Mbps
Support Features: UEFI/BIOS, USB keyboard/mouse emulation, USB storage emulation
Display Screen: 1.54-inch LCD, 240 × 240 resolution (touchscreen available on the full version)
Power Input: Type-C
Dimensions:
Full Version: 48.50 × 48.50 × 29.00 mm
Base Version: 44.00 × 42.00 × 23.60 mm
Features:
1. High Definition Multimedia Interface Input for Direct Integration:
Equipped with High Definition Multimedia Interface input, the Luckfox PicoKVM can be recognized as a computer monitor, enabling real-time screen capture for remote operations.
2. Low-Latency Performance:
With a minimum video latency of 80ms, the device ensures efficient signal transmission, making it ideal for real-time management of computers and servers.
3. Compact Design with Touchscreen Option:

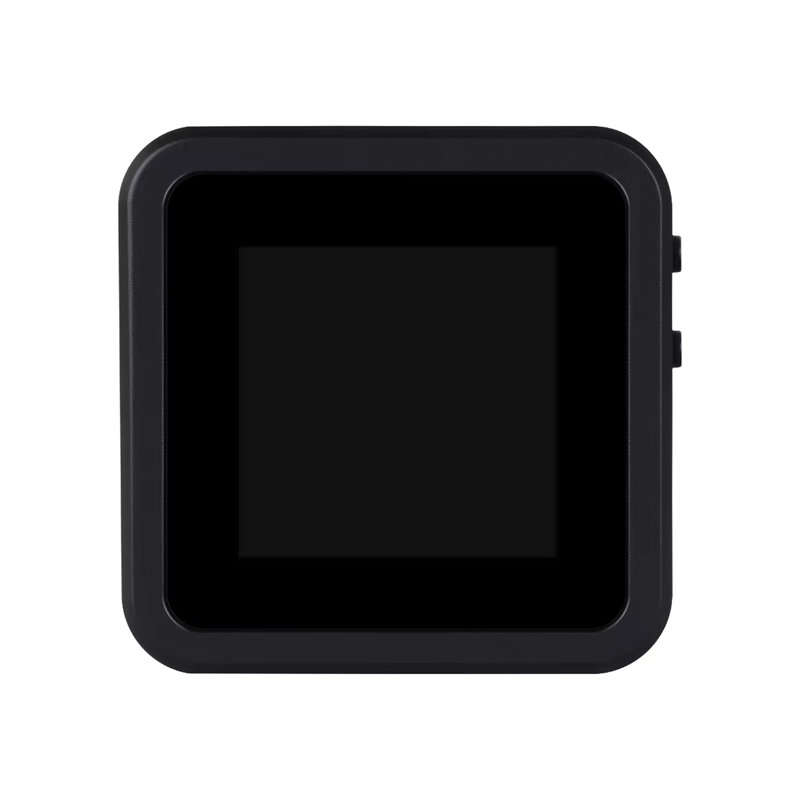

The full version includes a portable, 1.54-inch LCD touchscreen to display IP addresses and provide operational feedback, combining functionality with convenient control.
4. Wide Compatibility:
Supports UEFI/BIOS environments, emulation for USB keyboards, mice, and storage, ensuring smooth integration with a variety of user setups.
5. Flexible Storage Expansion:
Includes an integrated Micro SD card slot for extended storage capacity, adding flexibility for system development and maintenance tasks.
Package Included:
1 × Luckfox PicoKVM Device
