Specifications:
Item: Latest CNC Shield-Kit
Compatible with: A4988 or DRV8825 stepper driver
Operating voltage: DC12-36V
Max. Working current: 2.5A
RAMPS1.4 mechanical switch - end stop:
Red: VCC (ramps +)
Black: GND- (ramps -)
Green: signal (ramps)
DRV8825 stepper motor driver: upgraded from A4988
Maximum current: 2.5A
Suitable for driving stepper motors - up to 8.2V~45V, 2.5A

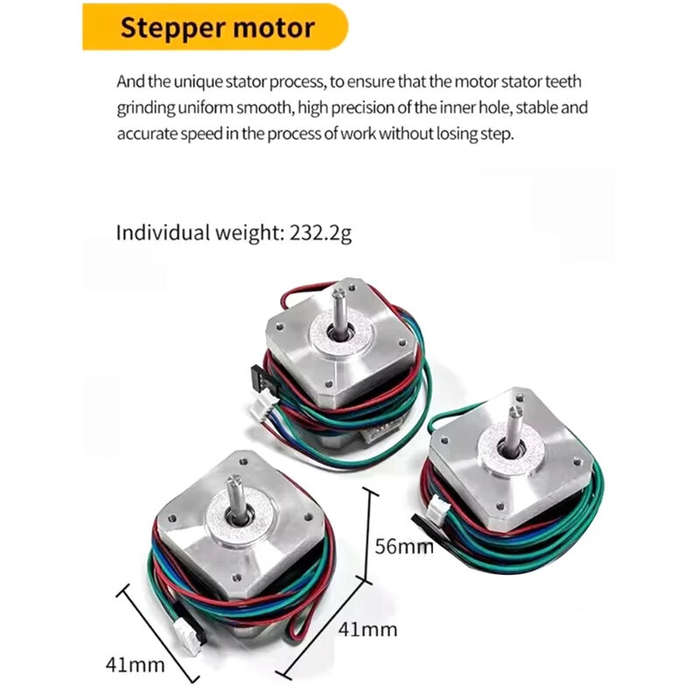

Nema 17 stepper motor: rated current/phase: 1.7A
Features:

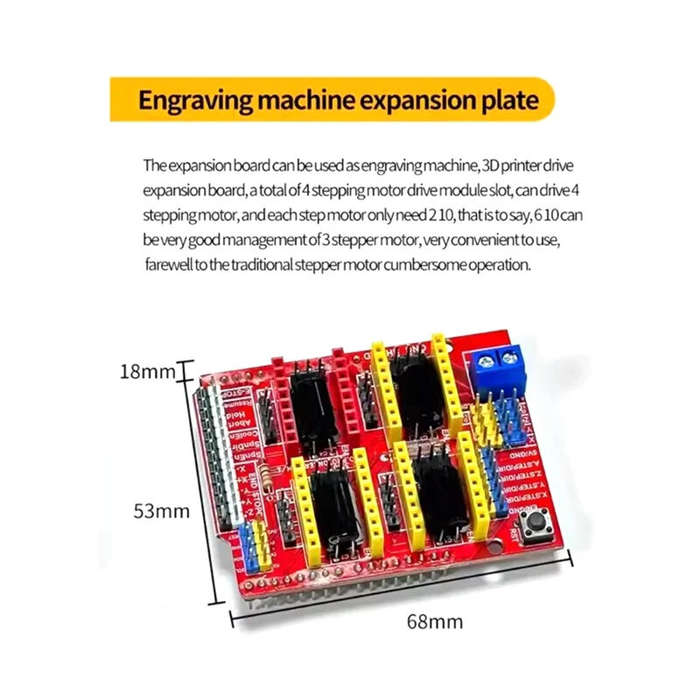

1. 3D Printer CNC Kit, GRBL CNC Shield Professional CNC Module Kit 4-layer PCB board with better heat dissipation

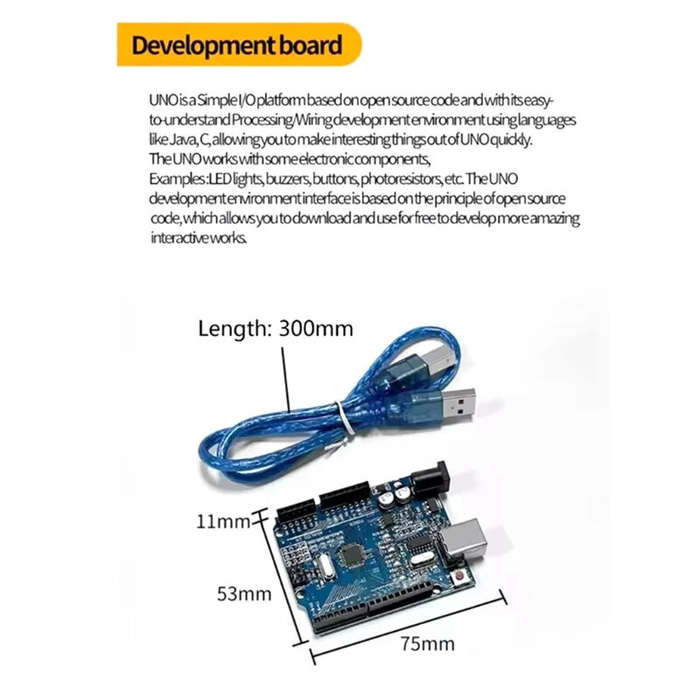

2. With UNOR3 board + RAMPS1.4 mechanical switch-end stop + DRV8825 stepper motor driver + Nema 17 stepper motor
3. Boost your diy projects with this high-quality CNC kit made of long-lasting ABS material, perfect for amateurs
