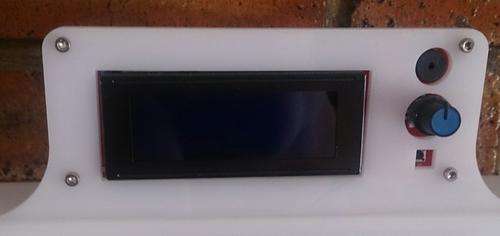

This 3D printer comes Fully Assembled, includes the Power Supply & Screen already installed.
Also comes with an extra long cable for PC connection and a Spare Cable !!!
Comes with a various spares and things that are useful for printing. (Scrapers, Hair Spray, Clamps, Cable Ties, Parts, Acetone for Fumigation Cleaning Etc....)
Comes with Multiple Extra Glass Sheets for the bed !!!
Extra Nozzels Included
The perfect kit to get you started with 3D Printing! High quality, cost effective 3D Printing! If you want to print you 5 year old daughter her favorite doll or your latest design at the office then this kit is for you.

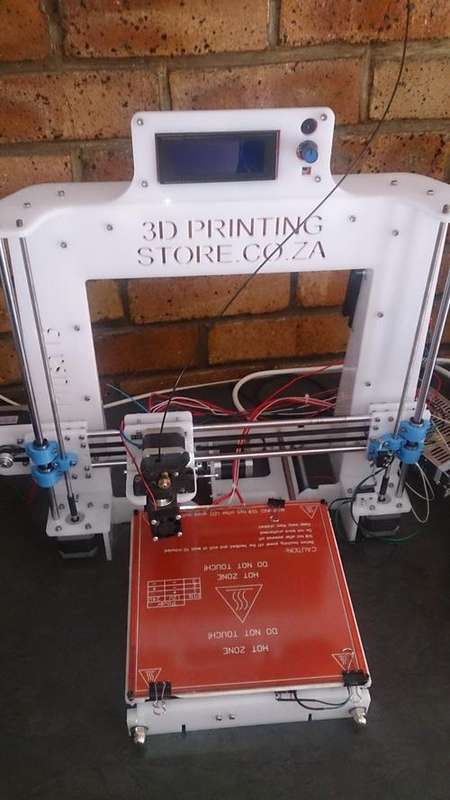

This kit is based on the popular Prusa i3 Rep Rap 3D printer design. Improvements were made to the design by our mechanical engineer to make assembly easier and increase accuracy. This kit includes everything you need to start printing except the plastic filament.
Requirements:
Basic technical knowledge and patience.
Basic tools to assemble the kit: Screw drivers, allen keys, spanners, sharp nose pliers, side cutter, soldering iron and heat gun (optional)
Powers supply capable of delivering a minimum of 12V, 18A DC current. You can add a switch mode power supply to your order or buy a PC powers supply from a computer store.

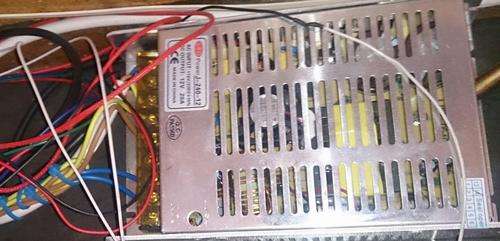

The 12V Power Supply Kit includes a 12V, 18A Switch Mode Power Supply to run the printer as well as the mouning hardware, cables and connectors to power your 3D Printer.
PC or Mac to control the printer.
CAD software, if you want to design your own components to print.
Specifications:
Build volume: 200 x 200 x 250mm (width x depth x height)
Printer size: 400 x 400 x 500mm (width x depth x height)
Printer mass: 4.25kg
Printing materials: ABS, PLA & Taulman Nylon plastics
Filament diameter: 1.75mm

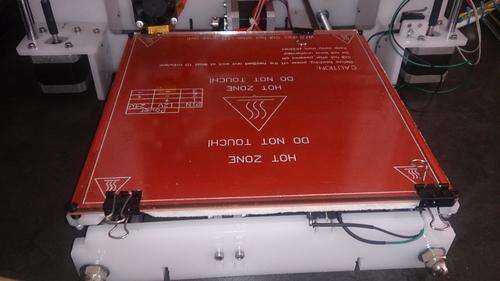

Heated bed: Yes
Printing surface: Glass bed
Frame construction: Laser cut Perspex

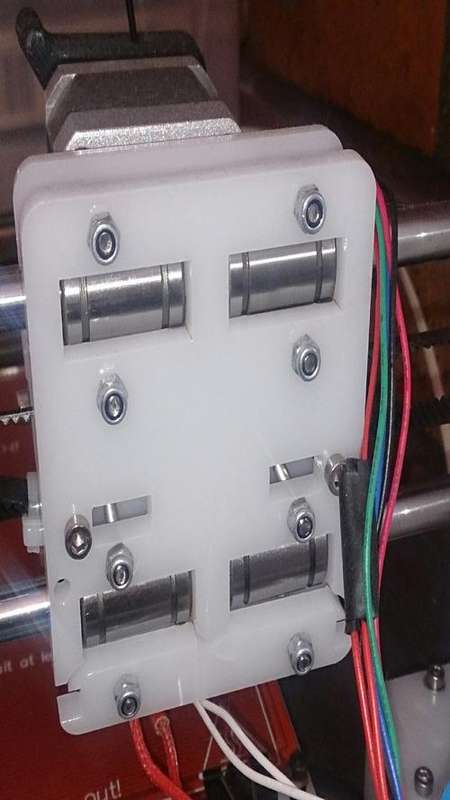

Linear guides: Chromed linear rods with linear bearings
X & Y axis positioning: GT2 belt driven
Z axis positioning: Precision stainless steel threaded rod with nut
Stepper motors: NEMA 17, 1.8 & 0.9 Deg/Step
Number of extruders: 1 (Can easily be upgraded to 2 extruders)

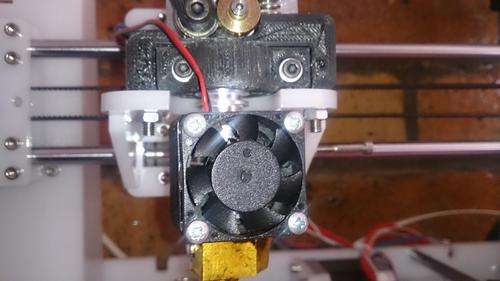

Extruder: Direct drive Minimalist Extruder
Hot end: E3D metal hot end with 0.4mm nozzle
Layer height: 0.1 - 0.3mm
Positioning accuracy: 10 micron
Final part accuracy: 0.1 - 1mm (geometry dependent)
Controller: Arduino MEGA 2560 with RAMPS 1.4 shield and A4988 stepper drivers
Input file type: STL
Controlling software: Repetier-Host
Slicing software: Slic3r or Cura (Settings provided)
Firmware: Marlin (Preloaded onto electronics)
Power requirement: 12V, 20A DC (Maximum)
Printing cost: R0.30 per CC of material & 200W of electricity
NOTE
The Extruder is Currently Full so it needs to be cleaned before use in an acetone bath. 1 of the back plates is broken, however it doesn't effect the printer in any way. A new Extruder and Back Plate is relatively cheap and easy to put on, however the printer works just fine as is !!!
