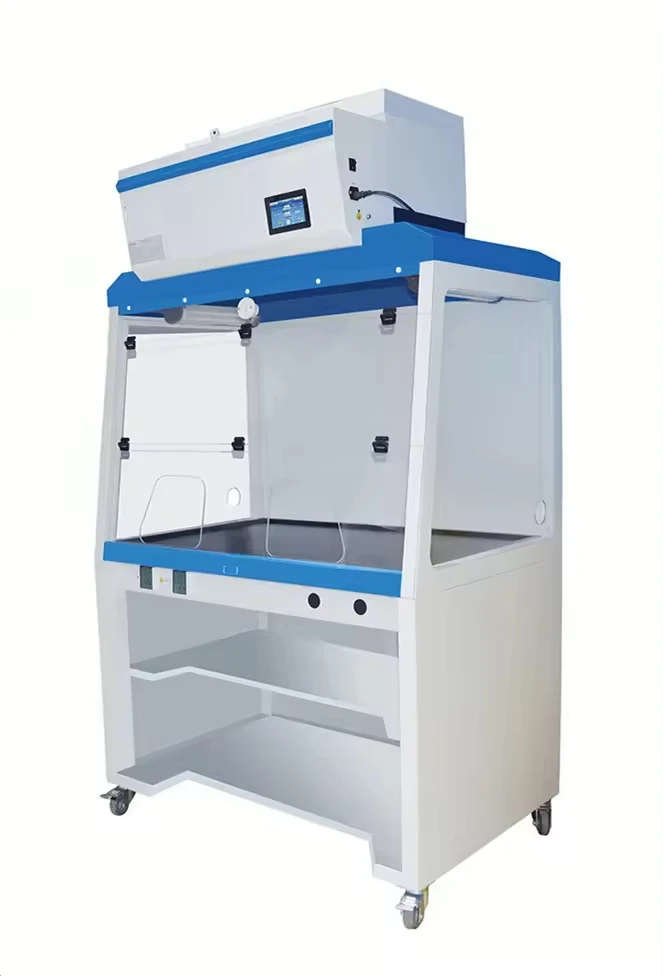

Fume Hood Ducted Cabinet FSF1200X
Lead Time: 4-6 Weeks
Fume Hood Ducted Cabinet FSF1200X
A fume hood is a type of local exhaust ventilation device that is designed to reduce exposure to hazardous or toxic fumes, vapours or dusts. It's mainly used in hospital labs, clinical trial labs, chemistry labs, university science labs, microbiology labs etc.
1. UV lamp for sterilization.
2. Motorized front glass window.
3. Adjustable air speed: 9 levels.
4. Alarm when filter working time 3500 hours.
5. With air velocity memory function in case of power failure.
6. Back side air compensation, to avoid turbulence in work area.
7. 10°slope front ergonomics design, fatigue-free working posture.
8. Microprocessor control system, LED display shows filter working time .
9. Transparent side glass windows maximize light and visibility inside the cabinet, providing a bright and open working environment.
| Model | FSF1200(X) | | | |
| External Size (W*D*H) | 1200*840*2150mm | | | |
| Internal Size (W*D*H) | 1080*730*745mm | | | |
| Work Surface Height | 750mm |
| Max Opening | 520mm |
| Blower | Built-in centrifugal blower; Speed adjustable with 9 levels |
| Air Velocity | 0.3-0.8m/s |
| Noise | 60dB |
| Fluorescent Lamp | 18W*1 | | | |
| UV Lamp | Emission of 253.7 nanometers fo most efficient decontamination |
| Front Window | Motorized; 5 mm toughened glass, anti-UV |
| Material | Exterior:Cold-rolled steel with anti-bacteria powder coating. |
| Work Table:Chemical resistant phenolic resin |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
| Consumption | 400W | | | |
| Standard Accessory | Water tap, Gas tap, Water sink, Base stand, UV lamp*2, Fluorescent lamp. FH1000(X) with one |
| waterproof socket consumption not more than 500W, the rest models with two waterproof sockets |
| consumption not more than 500W, 4 meters exhaust duct, Active carbon filter, Foot switch |
| Gross Weight | 253kg | | | |
Package Size
(W*D*H) | 1350*1120*1680mm |
Fume Hood Ducted Cabinet FSF1200X
