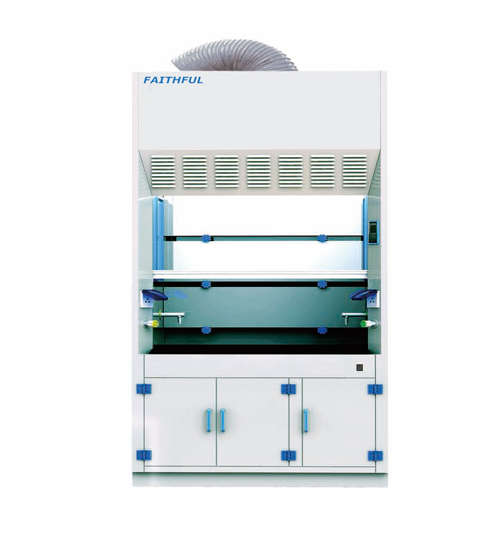

Fume Hood Ducted Cabinet FSF1800P
Lead Time: 4-6 Weeks
Fume Hood, Ducted Cabinet FSF1800P
A fume hood is a type of local exhaust ventilation device that is designed to limit exposure to hazardous or toxic fumes, vapours or dusts. It's mainly used in hospital labs, clinical trial labs, chemistry labs, university science labs, microbiology labs etc. This Fume Hood is resistant to strong acid, alkali and anti-corrosion.
1. It is safer to use anti-corrosive water tap.
2. Microprocessor control system, LCD display.
3. Made of porcelain white PP, resistant to strong acid, alkali and anti-corrosion.
4. Front window which is made of thick transparent toughened glass maximize light and visibility inside the fume hood, providing a bright and open working environment.
Fume Hood Ducted Cabinet FSF1800P
| Model | FSF1800P | | | |
| External Size (W*D*H) | 1840*800*2200mm | | | |
| Internal Size (W*D*H) | 1620*570*872mm | | | |
| Work Surface Height | 700mm |
| Max Opening | 815mm |
| Air Velocity | 0.4-0.6m/s |
| Noise | 60dB |
| Fluorescent Lamp | 30W*2 | | | |
| Blower | Built-in axial flow blower; Speed adjustable. |
| Front Window | Manual, 5mm toughened glass, height adjustable |
| Power Supply | AC220V±10%, 50/60Hz 110V±10%, 60Hz |
| Consumption | 360W | | | |
| Material | Main Body | Made of Porcelain white PP, thickness 8mm,
resistant to strong acid, alkali and anti-corrosion |
| Work Table | Chemical resistant phenolic resin |
| Standard Accessory | Fluorescent lamp, Water tap, Gas tap, Water Sink, Base cabinet |
| Waterproof socket2 |
| 4 meters PVC duct, Diameter: 250mm |
| Optional Accessory | PP work table, epoxy resin board or ceramic board. |
| Outer centrifugal blower, resistant to strong acid, alkali. |
| Gross Weight | 259kg | | | |
Package Size
(W*D*H) | Main Body | 1910*885*1575mm | | | |
| Base Cabinet | 1910*885*1575mm |
Fume Hood Ducted Cabinet FSF1800P
