FUNDUINO UNO R3 ATMEGA328P WITH ATMEGA16U2 DEVELOPMENT BOARD
(ARDUINO COMPATIBLE)
Product information
This Funduino UNO Rev 3 compatible development board is constructed to Arduino’s exacting standards from the original open source schematics and board layout as published on their website. The Arduino IDE is freely available from www.arduino.cc. The website has extensive material and example sketches to use on their boards. Interfacing to a PC is as simple as plugging in the board via the included USB cable and installing the IDE software. Development is simple, easy to understand and suitable for beginners to explore the exciting world of microcontrollers.
Specifications
Uses an ATmega328P
Rev 3 boards now have an added SDA and SCL pin near AREF pin and two other new pins placed near the RESET pin.
The IOREF pin enables shields to adapt to the voltage provided from the board
Has a stronger RESET circuit
ATMEGA 16U2 replaces the 8U2 found on the Rev 2 model
Operating Voltage: 5V
Input Voltage (recommended): 7~12V
Input Voltage (limits): 6~20V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 6
DC Current per I/O Pin: 40mA
DC Current for 3.3V Pin: 50 mA
Flash Memory 32KB (ATmega328) of which 0.5KB is used by the bootloader
SRAM: 2KB (ATmega328)
EEPROM: 1KB (ATmega328)
Clock Speed: 16MHz
Circuit improvements are based entirely on the Arduino official design
http://arduino.cc/en/Main/ArduinoBoardUno
Package includes

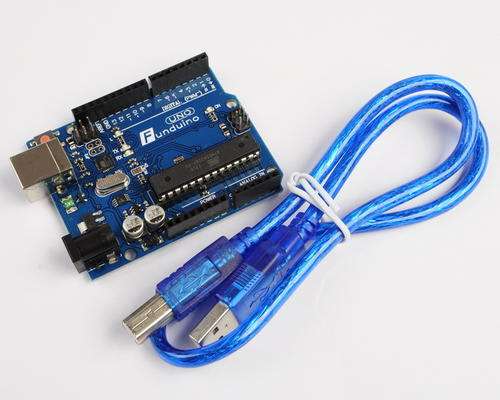

1 x Funduino UNO R3 Compatible Board
1 x USB cable
