Specifications:
Body Material: Black thermoplastic
Wire Leads: 22 AWG; colour: red
Terminals: Brass
Lead Pull Test: Withstands 4.5kg pull
Temperature Range: -40°C to +80°C
Electrical Ratings:
5 x 15mm rated 5A at 32V
5 x 20mm rated 10A at 32V
Dimensions:
Wire Lead Length: 220mm ± 1mm
Body Length: 60mm
Body Diameter: 10mm
Accepts 6 x 30mm fuses.
Two piece screw together assembly.

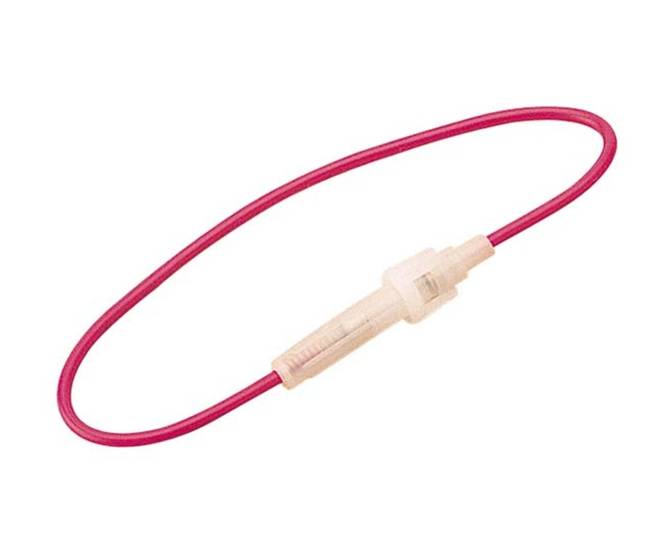

An economical and versatile fuse holder for normal environments.
Wire leads included.
