Futronic FS80 - Fingerprint Scanner | FS80

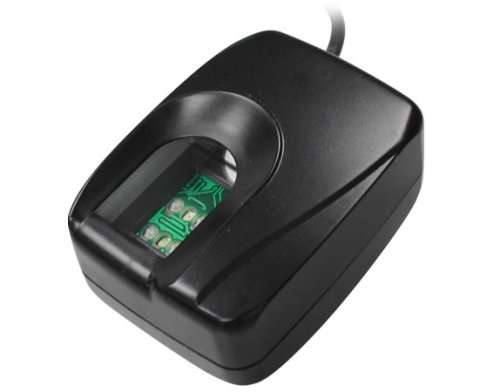

Futronic’s FS80 USB2.0 Fingerprint Scanner

Futronic’s FS80 USB2.0 Fingerprint Scanner uses advanced CMOS sensor technology and precise optical system to deliver high quality fingerprint image. It can capture an almost un-distorted raw fingerprint image into PC in 100ms and is good for any fingerprint recognition application.The finger scanning window is a crown glass with a thickness of 14mm. It is much more reliable and robust compared to any semiconductor type fingerprint sensor.

The finger is illuminated by 4 infra-red LEDs during scanning and the light intensity is automatically adjusted according to scanning fingerprint’s characteristics (wet, dry, blurred, etc) to optimize the quality of the captured fingerprint image.

Special electronic circuit is built into FS80 to do Live Finger Detection (LFD). With appropriate software in PC, user can select this LFD feature so that only live finger’s fingerprint will be scanned into PC. Fake fingers made from silicone rubber, play-doh, etc, will be rejected. And the LFD feature is included in all Futronic’s standard software.

Specifications

Product Description        Futronic FS80 - fingerprint reader - USB 2.0

Device Type                        Fingerprint reader

Interface Type                   USB 2.0

Fingerprint Reader          16 x 24 mm - 500 dpi

Dimensions (WxDxH)     4.5 cm x 6.3 cm x 2.6 cm
