Approved Fingerprint scanner for transacting on CIPC for third party agents!! We can courier or you can collect from our premises!!
Futronic FS88 is an optical USB 2.0 fingerprint scanner. The scanner was certified by FBI to be compliant with PIV-071006 Image Quality Specification for Singer Finger Reader. Also FS88 is listed in the US General Services Administration (GSA) FIPS 201 Evaluation Program Approved Product List.
Technically FS88 scanner is an enhanced version of Futronic FS80 with CMOS image sensor technology and precise optical system. Infra-red LEDs are used to illuminate a finger during scanning. The scanner is able to adapt to fingerprint image quality (wet, dry or blurred fingers) by adjusting illumination intensity. Sensors window is able to resist scratches and other stress.
The FS88 scanner includes an electronic circuit for live finger detection and special software for it.

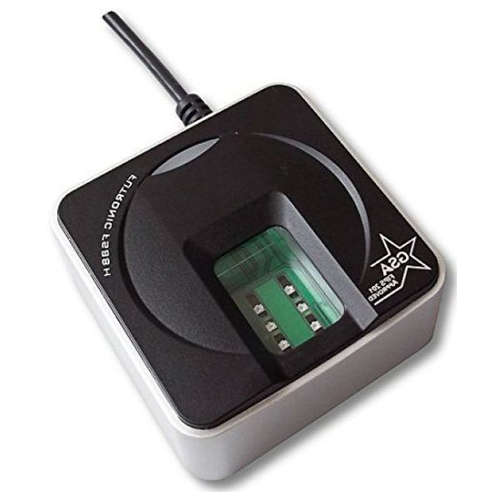

Futronic FS88H is an updated model of the original FS88.
Specifications
Special electronic circuit is built into FS88H to do Live Finger Detection (LFD). With appropriate software in PC, user can select this LFD feature so that only live finger's fingerprint will be scanned into PC. Fake fingers made from silicone rubber, play-doh, etc, will be rejected. And the LFD feature is included in all Futronic standard software.
A unique serial number is factory-programmed into the USB Device Descriptor of each FS88H. So every FS88H is traceable and this is very important for government identity management projects.
Futronic provides Application Programming Interface (API) for FS88H to capture fingerprint image on the following platforms:
- Windows XP/2003, 32 bit and 64 bit.
- Windows Vista/2008/2012, 32 bit and 64 bit.
- Windows 7/8, 32 bit and 64 bit.
- Linux with kernel 2.4 or higher (for both x86 and ARM9)
- Windows CE 5.0 and 6.0 (for both x86 and ARM9)
- MAC OS(version 10.5, 10.6 and 10.7, Intel CPU)
- Android 3.1 and higher with USB Host port
Please contact Futronic for more details.
Specification
- Fingerprint scanning window size is 16.26 x 24.38mm
- Image resolution is 320x480 pixels, 500 DPI
- Image format is 8 bit 256 grayscale
- Raw fingerprint image file size is 150K byte
- With Live Finger Detection (LFD) feature
- USB 2.0 compatible interface, plug and play device
- Unique serial number programmed to USB Device Descriptor
- With 16K Byte memory for application-specific data storage
- With a 2M standard USB cable
- Small size, 66 x 66 x 29 mm
- Light weight, 150 gram
- Operation temperature: -10 to +55 Degree Celsius
- Relative Humidity: 0-90% non-condensing
Compliant to following standards
- FIPS 201/PIV 071006 Image Quality Specification
- Mobile ID FAP20
- Microsoft WHQL
- FCC and CE
- RoHS
Other Certifications
- Ingress Protection Rating: IP54(scanning window only)
Electrical characteristics
- Light source: Infrared LED
- Supply voltage: DC 4.5-5.5V via USB port
- Power consumption:
- active <900mW(during scanning)
- standby <200mW(when scanner is connected PC but no scanning)
- sleep mode <4mW(activated by standard USB bus event only)
- ESD contact - 8KV and air discharge - 16KV, no permanent damage
FS89H(FS88H module)
FS89H is OEM module of FS88H for customers who want to integrate FS88H into their own products, such as handheld POS machine, portable voter registration station, etc.
FS89H is same as FS88H but without plastic shell and USB cable so that it can be embedded into any target system. It does not support Live Finger Detection(LFD).
- Size, 59(L) x 60(W) x 20(H)mm
- Weight, 80 gram
