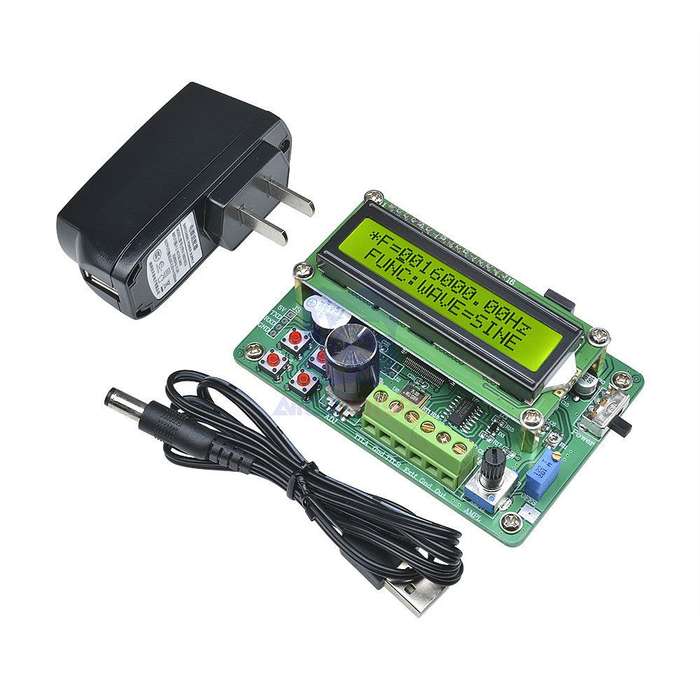

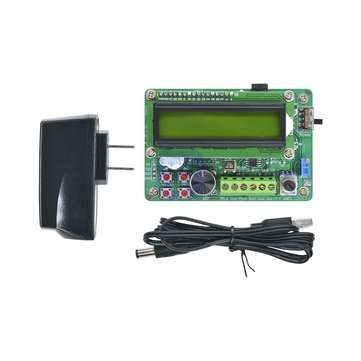

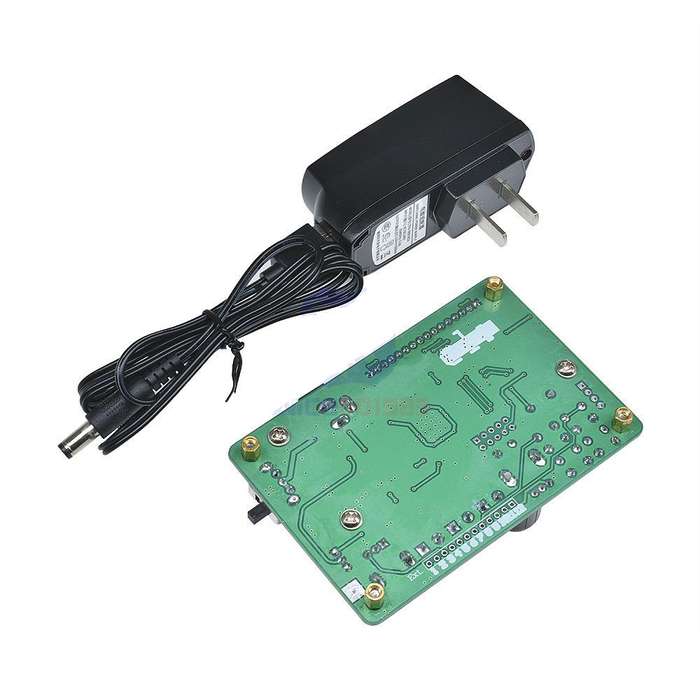

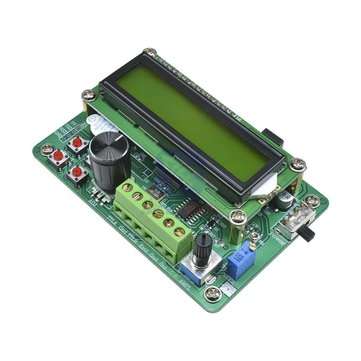

FY1005S 5MHz LCD Digital Display LCD1602 DDS Function Signal Generator Source Module Sine/Triangle/

New

20 available

R980.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3921

92.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

651228973

Signal Output Function: Output waveforms:Sine wave, Square wave and Triangle wave. Output amplitude:a10Vp-p(signal output, no load). Output impedance:50&pm;10%(signal output). DC offset:&pm;2.5V(no load). Display:LCD1602 Frequency range:0.01Hz ~ 5MHz(FY1005). Resolution:0.01Hz. Frequency Stability:&pm;110-6. Frequency accuracy:&pm;510-6. Sine wave distortion:a0.8% (reference frequency is 1kHz). Trinagle linearity:a98% (0.01Hz~10kHz). Rise and fall time of square wave:a100ns. Square Wave Duty range:1%~99%. TTL Output Function: Frequency range:0.01Hz ~ 5MHz(FY1005). Amplitude:>3Vp-p. Fan Out:>20 TTL loads. COUNTER Function: Counter Range:0-4294967295. Frequency Meter Range:1Hz~60MHz. Input Voltage Range:0.5Vp-p~20Vp-p. Storage and transferred: 10 set of parameters with storage and recall functions. Size:9.5cm x 6.5cm x 3cm - 3.74inch x 2.56inch x 1.18inch. Package Included: 1 x 5MHz DDS Function Signal Generator Module
