FY201 PWM Signal Generator+Modbus 1Hz-150KHz PWM Pulse Frequency Duty Cycle Adjustable Sine Wave Gen

20 available / new

R692.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3505

93.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643379886

Description:

a Adopt DDS digital synthesis technology to produce accurate, stable and low-distortion output signal; a Adopt desktop design with ABS plastic shell, 6-20V (DC) wide voltage power supply; a Adopt 1.44 inches (128*128) color display; a PWM waveform output frequency, voltage, and duty cycle are adjustable; a Pulse waveform output pulse width, number, and cycle output are adjustable; a Waveform generator has: sine wave, triangle wave, sawtooth wave; a It can output 2-10V, 4-20mA DC waveform; a PWM waveform output frequency range: 0-150KHz (resolution: 1Hz), voltage output range: 1-24V (resolution: 0.01V), duty cycle; a The maximum output frequency of pulse waveform is 150KHz; aPowerful Modbus communication function, you can use a PC to control the instrument. The communication protocol is open, making the second development very simple; a High reliability: large-scale integrated circuit, surface mount technology, high reliability and long service life
Package includes:

1 *PWM Signal Generator+Modbus

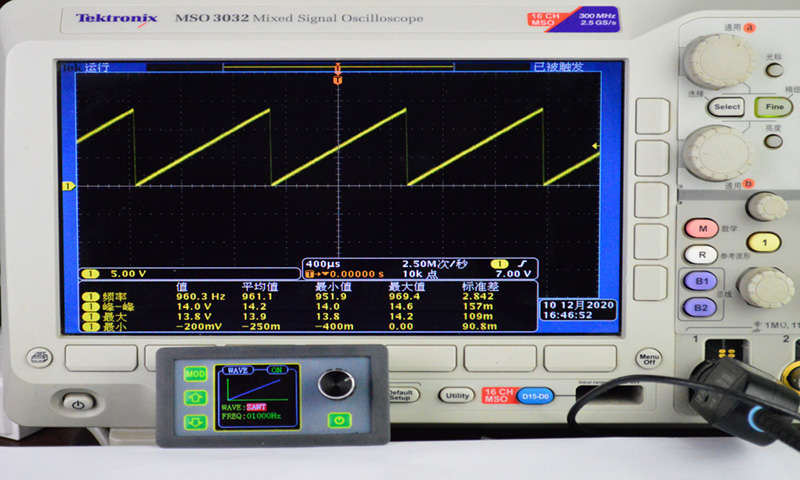

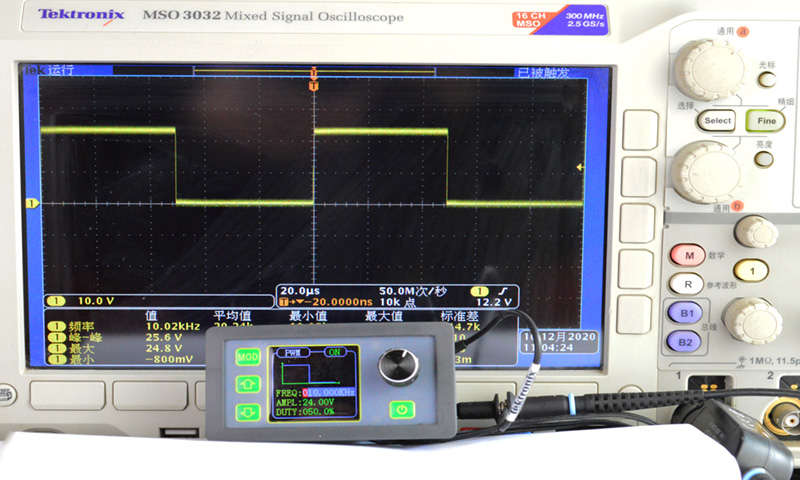

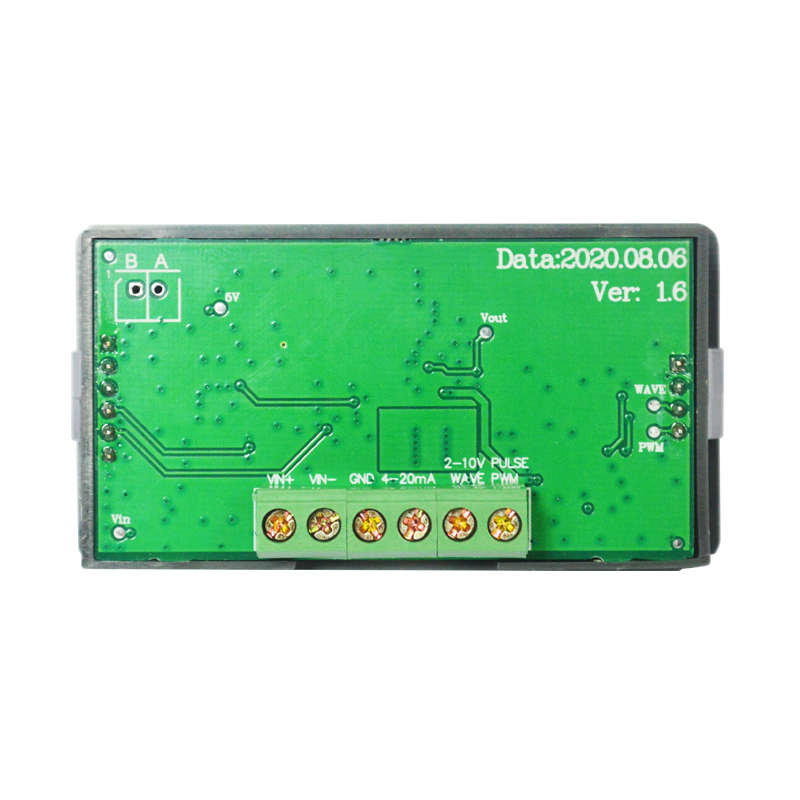

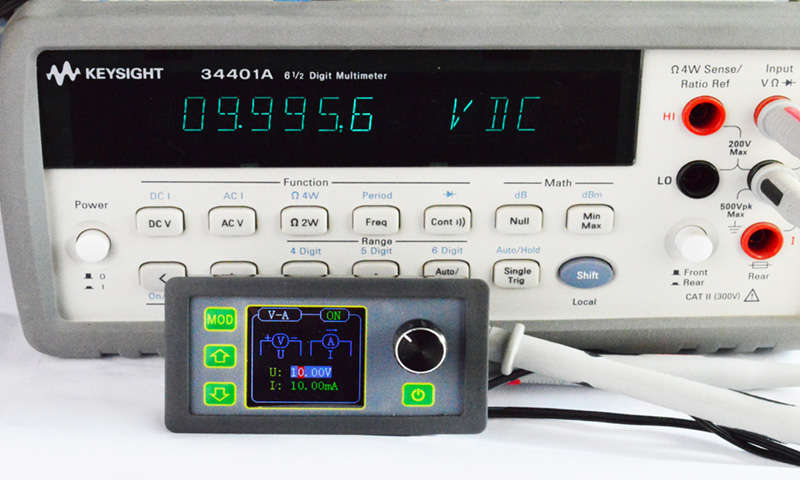

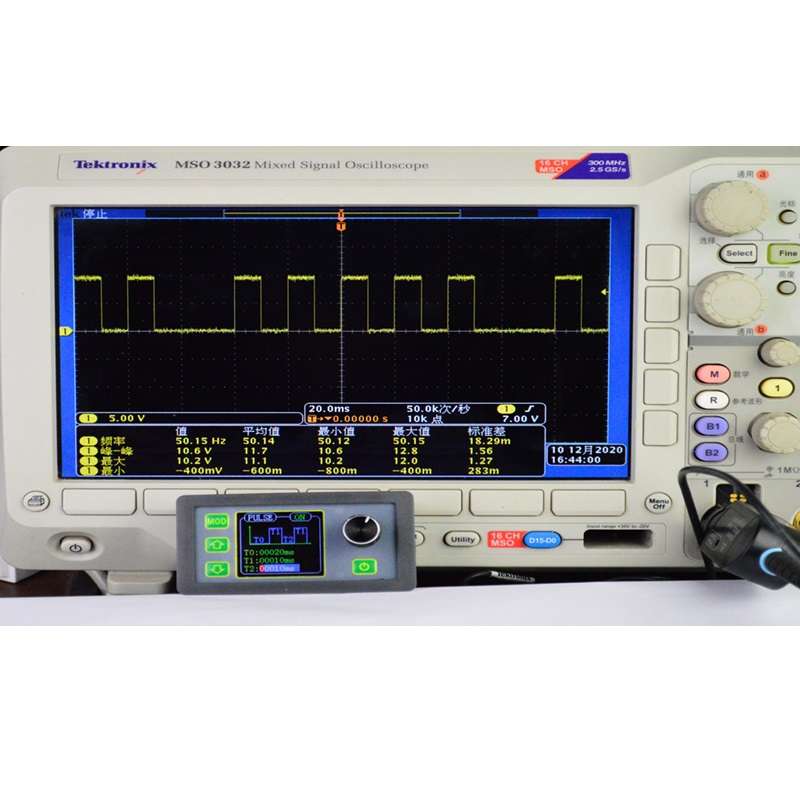

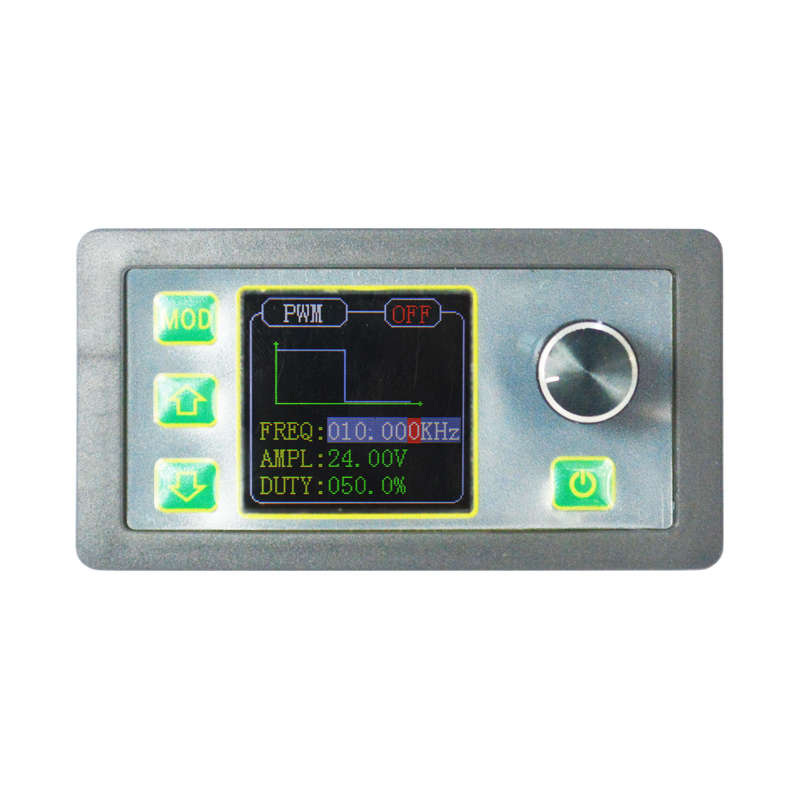

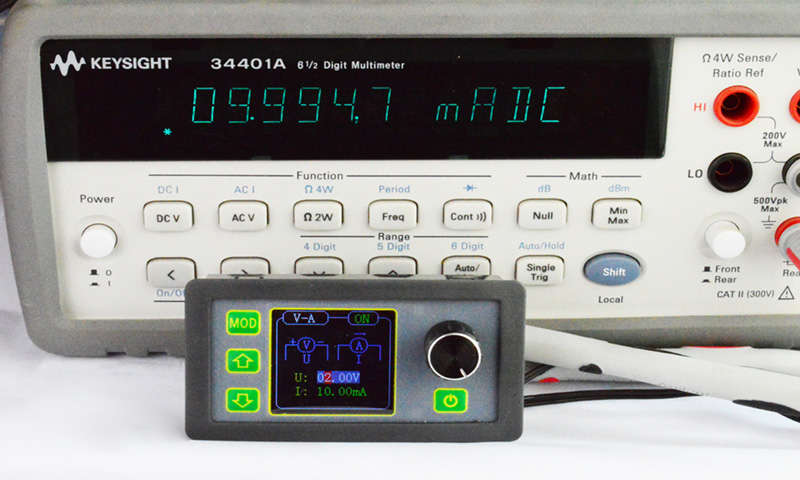

Details picture:
