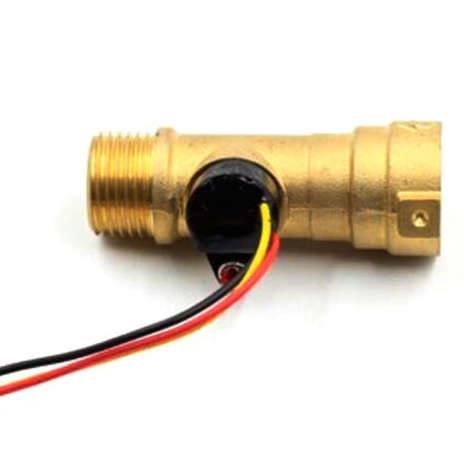

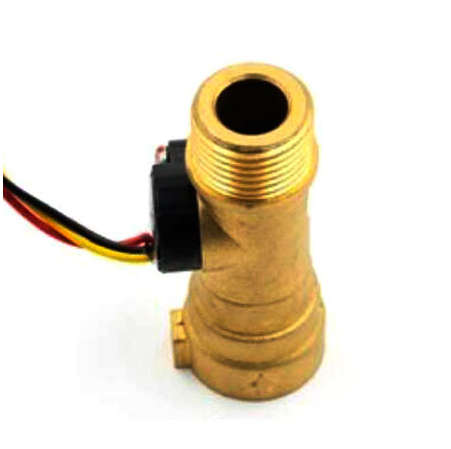

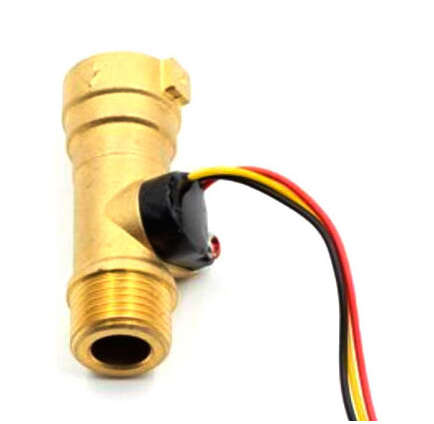

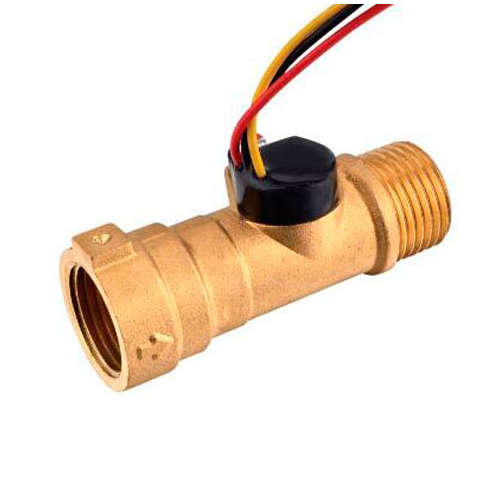

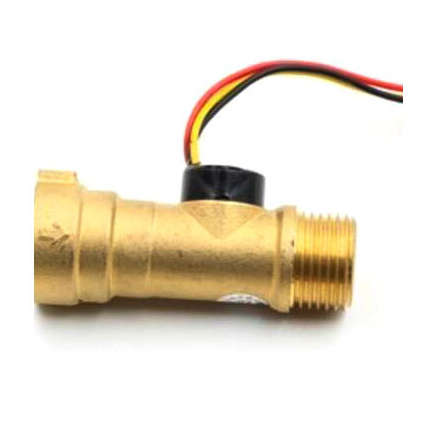

G1/2 Brass Water Flow Sensor

G1/2 Brass Water Flow Sensor

Features:

• There is an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution..
• The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.
• Easy to install and convenient to use.
• Three wire connection: Red for positive, black for negative, yellow for pulse signal


Specifications:

• Rated operating voltage: 5V - 24V DC
• The maximum operating current: 15mA (5V DC)
• Working voltage range: DC 5 ~ 18 V
• Load capacity: less than 10mA
• The use of ambient temperature range: 0 ~ 100 degree Celsius(no icing state)
• The use of humidity range: 35% ~ 90%RH (frost free state)
• Allowing pressure: water pressure below 1.75Mpa, parts without cracks, relaxation, expansion and deformation etc..
• Storage temperature: -20 ~ +80 C (no icing state)
• Preservation of humidity: 25% ~ 95%RH
• Measuring distance:60(m3/h)
• External and Internal Thread Diameter: G1/2"
• Flow Rate: F =18Q+ 5Q = L / min - (1-30l/m)
