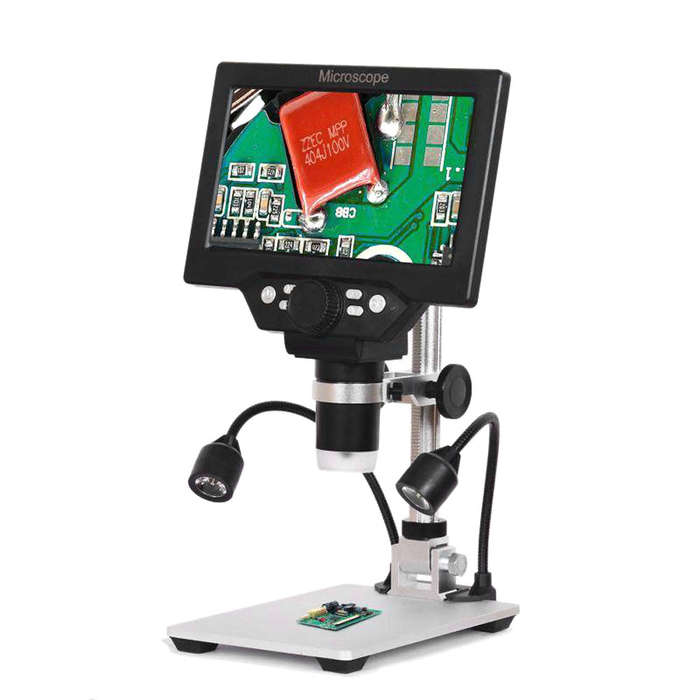

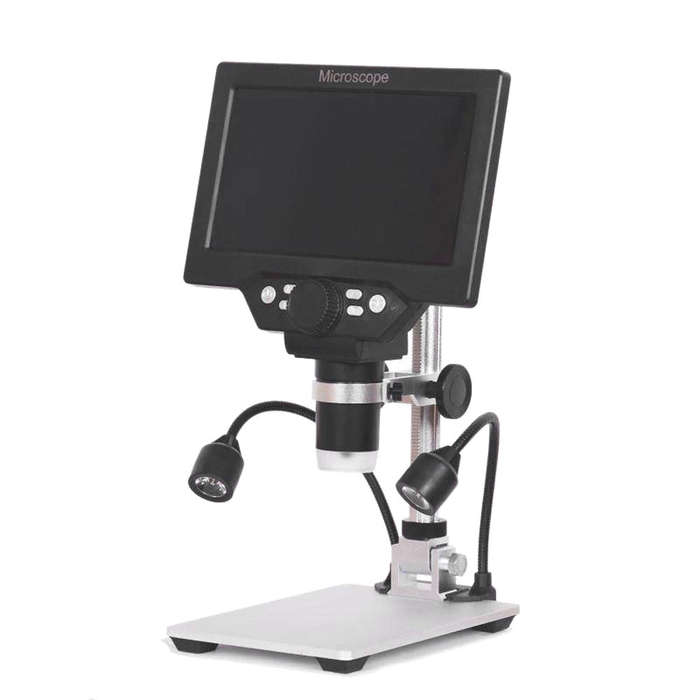

A 7-inch LCD screen G1200 microscope, the bracket can be rotated at any angle forward and backward to suit your needs, while the lens supports 1-1200X continuous zoom. It can definitely be a fine helper for your daily work.
Features:
This is a digital microscope with continuous zoom, and it has a wide ranges of viewing options compared to other microscopes, ranging from 1 to 1200 times magnification, and finding a suitable multiple for you.
Angle adjustable can solve the problem of high reflection by the LED lights.
The microscope has a longer ranges than the others because it has certain amount of room to operate. It is very convenient to use tweezers, electric soldering iron and others under your microscope.
ￂﾠ12 megapixel, display Screen: 7-inch LCD display, 1-1200 * continuous amplification system.
Sixteen language systems: English, Spanish, Russian, Korean, Japanese, Thai, Hebrew, Portugal, German, French, Italy, Turkey, Czech, Poland, Traditional Chinese, Simplified Chinese.
This upgrade type with 2 fill lights, allows you to get a clearer images when you observe, giving you a better use experience.
Specifications:
Type: power supplies type, built-in lithium battery type (optional)
Plug: EUplug, UK plug, USA plug, AUplug (optional)
Pixel: 12 megapixel
Display Screen: 7-inch LCD display
Magnification: 1-1200 * continuous amplification system.
Distance Between Object: 10MM to +￢ﾈﾞ (different distances correspond to different multiples)
Sixteen Language Systems: English, Spanish, Russian, Korean, Japanese, Thai, Hebrew, Portugal, German, French, Italy, Turkey, Czech, Poland, Traditional Chinese, Simplified Chinese.
Battery (built-in): 1 * 3.7V 3000mAh Lithium Battery
Package Size: 205 * 160 * 80mm / 8.1 * 6.3 * 3.1in
Package Weight: 1044g / 2.3lb
Advantage:
1: Vertical microscopes have an important drawback because they are used in wide applications such as solder on PCBs, model designation of some tiny chips, and metals, and it is easy to lose sight of the details of the objects due to reflection. Our product specifically addresses this issue. It is an angle-adjustable digital microscope that solves the problem of high reflection. It's a suitable experience in the electronics maintenance industry, and it's important to note that. This machine has a longer ranges than the others because it has certain amount of room to operate. It is very convenient to use tweezers, electric soldering iron and others under your microscope.
2: Most other microscopes are two-gears magnification, either too large or too small. There will be visual regret. This is a digital microscope with continuous zoom and zoom, and it has a wide ranges of viewing options compared to other microscopes, ranging from 1 to 1200 times magnification, and finding a suitable multiple for you to.

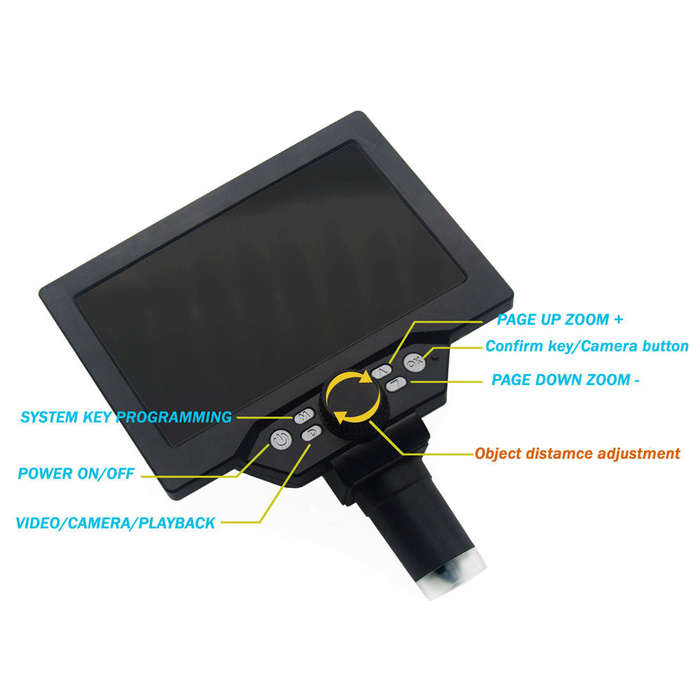

Button Setting:
Power: press 2 seconds to turn on/off
M Button: Function setting
Screen Saver: Off * 30 sec/1 mins/2 mins (optional)
Automatic Shutdown: Off * 3 minutes/5 minutes/10 minutes
Hz Light Source: 50 Hz/60 Hz
Language options: 16 Languages
Date Adjustment: year, month, dayﾽﾜhour, minute, second
Format: YES/NO
Default: YES/NO
In Video Mode:
Resolution: 1080, 720P, VGA
Circulating Camera: Off/3 minutes/5 minutes/10 minutes. When the memory card is full, the foremost video data will be deleted and the video will be saved.
High Dynamic Ranges: On/Off (When power on, the video recording function will be turned on automatically if any object moves under the lens without manual operation.)
Exposure Compensation: 7 grades for option
Date Label: Display/Close-Date and Time can be selected on the screen
In Photo Mode:
Photograph Delay: Single. 2 seconds. 5 seconds. 10 seconds.
Photo Pixels: 1.3 M * 2 M * 5 M * 8 M * 10 M * 12 M
Continuous Shootings: 3 consecutive shots
Photo Quality: Quality/Standard
Sharpness: Strong/Standard/Soft
ISO: Automatic * 100 * 200 * 400
Exposure Compensation: 7 grades for option
Date label: On/Off
Watch: Up/Down Delete Protection
D Button: Mode Keys:
Switch: Camera mode, camera mode, playback mode:
Up, Down, OK (Photo/Video, Open)
1: Powered by direct current interface (Micro USB).
2: Flash card socket, support 1-128GB. Class10 + speed
3: Light brightness regulator.
4: REST button, system restore. (If the machine is inoperable, press the button in this hole with a needle-like sharping object to restart the machine)
5: Highlight 8 LED lights with a continuous service time of up to 100,000 hours.

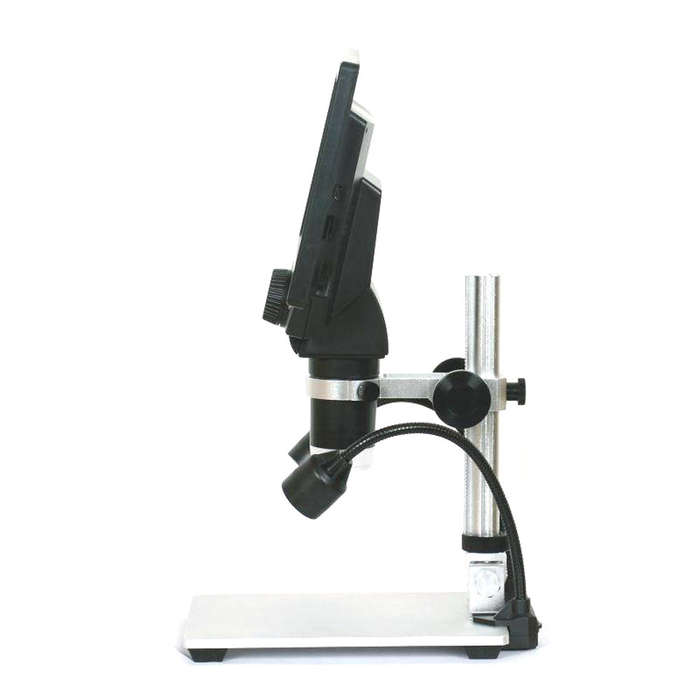

Special Intelligent Angle-adjustable Aluminum Alloy Support:
The nearest distance between the machine lens and the object is about 10mm, when the magnification is the maximum. On the contrary, the farther away the lens is from the object, the smaller the magnification is.
Short distance high magnification, tall distance small magnification.
Notes:
Please allow 1-30mm error due to manual measurement.
Due to the difference between different monitors, the picture may not reflect the actual color of the item.
Package List:
1 * G1200 Microscope
