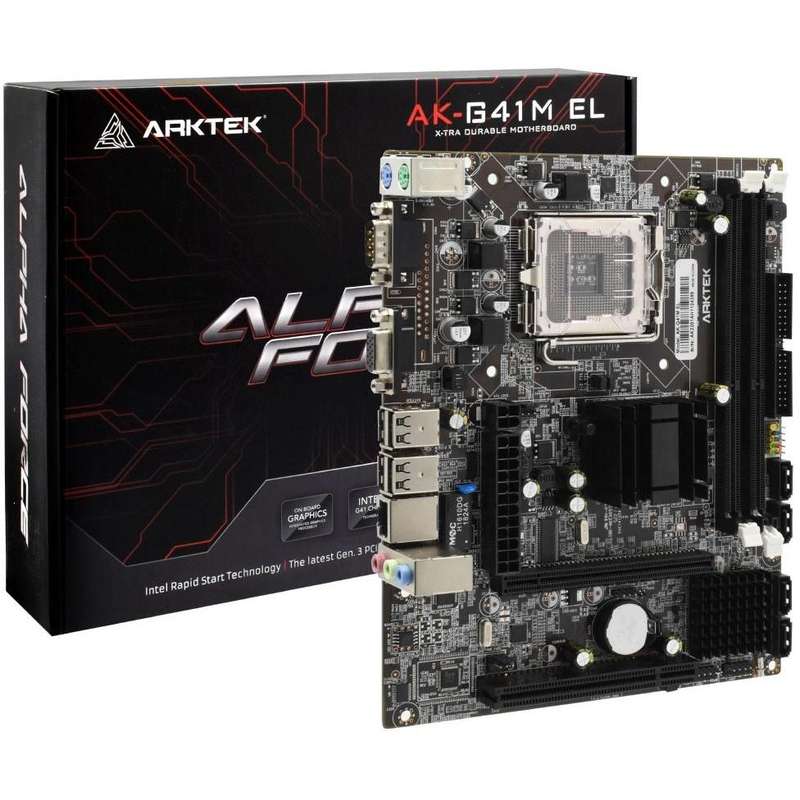

G41 MOTHERBOARD LGA775 MATX

ARKTEK G41 MOTHERBOARD LGA775 MATX - AK-G41M EL

Intel G41

Model: AK-G41M EL

Socket: LGA775

Chipset: Intel G41

Memory Support_ Dual Channel DDR3

Overview

Processor: Support Intel Socket 775 for Core 2 Duo/Core/Duo/Pentium 4/Pentium D/Celeron D Processors

Chipset: North Bridge_ Intel G41 Chipset, South Bridge_ Intel ICH7 Chipset

On-Board Graphics_ Integrated Graphics Processor

Memory: DDR3 1333/1066 MHz Max. 4GB

DIMM: 2 x Memory Slots

LAN: Realtek 8105E 10/100M LAN On Board

Audio: Realtek ALC 662 6-Channel High Definition Audio

SATA: 4 x SATA Port

ON-Board Pinheaders / Connectors: 2 x USB 2.0 Pinheader Supports additional 4 USB 2.0 Ports

1 x Front Panel Audio Pinheader

Back Panel I/O Ports

1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 1 x VGA Port

1 x COM Port 4 x USB 2.0 Port 1 x LAN Jack 3 x Audio Jack

Expansion Slots

1 x PCI Express x16 Slot

1 x PCI Slot

Form Factor: Micro-ATX (21.3 x 16,9 cm)

Mounting: 6 Mounting Holes
