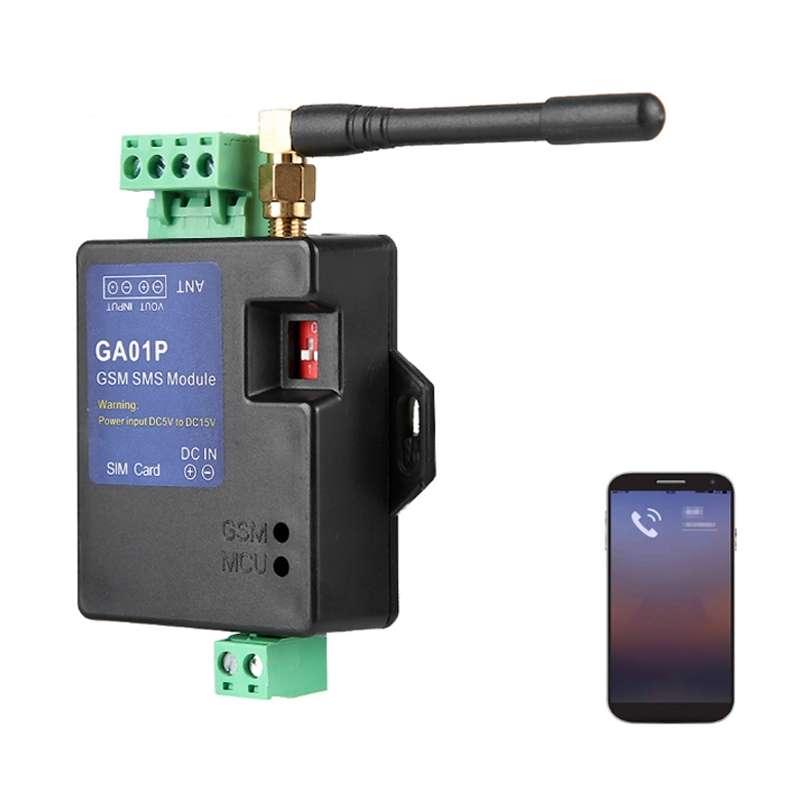

GA01P 2G Mini Intelligent Power Off / Power Outage SMS Phone Alarm

1. Power supply: DC5-15V (V)
2. Communication method: GSM
3. Relay drive: 1 voltage output
4. Probe input mode: dry junction
5. Type: Anti-theft alarm panel
6. Scope of application: industry, shops, homes, warehouses, communities, buildings, garages, etc.
7. The input of GA01P is a switch signal. When the input port is short-circuited with the ground wire (GND), GA01P will send an alarm text message to the preset alarm mobile phone, or call the set alarm number. The content of the alarm text message can be set by yourself
8. It is easy to use and can be well embedded in other equipment as a remote alarm system
9. The alarm content of the 1-channel alarm input and the alarm content of returning to normal can be defined by yourself
10. Built-in rechargeable lithium battery (140mAh), usually in charging state, when the main power supply fails, it will provide power and send an alarm message to the preset number

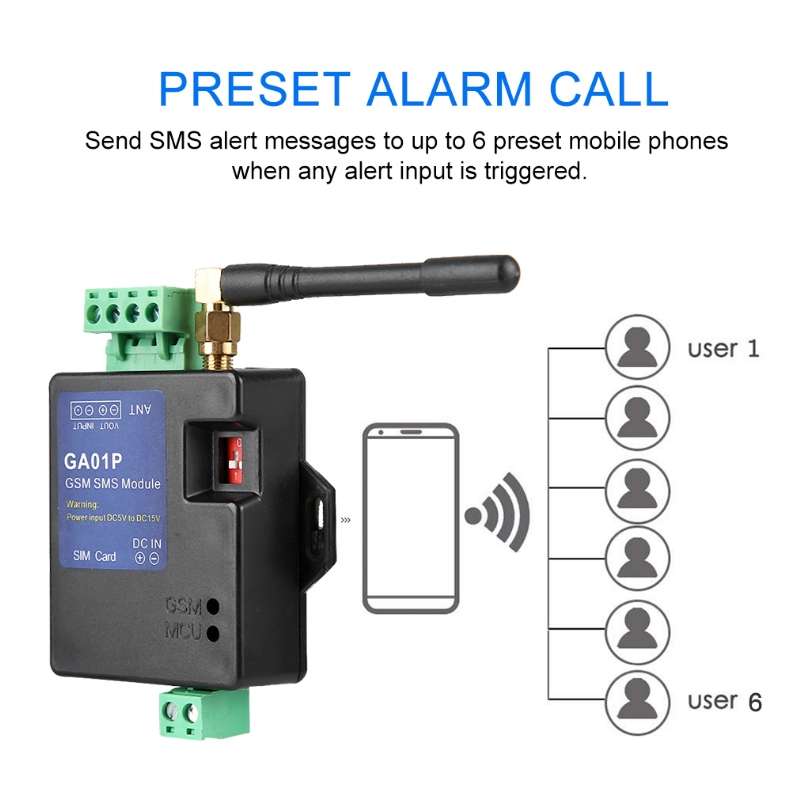

11. Remote text messages and phone calls
12. Support one alarm input
13. Support the connection of the alarm to realize the sound, or the sound and light alarm
14. Support wide voltage input, DC 5V to DC 15V

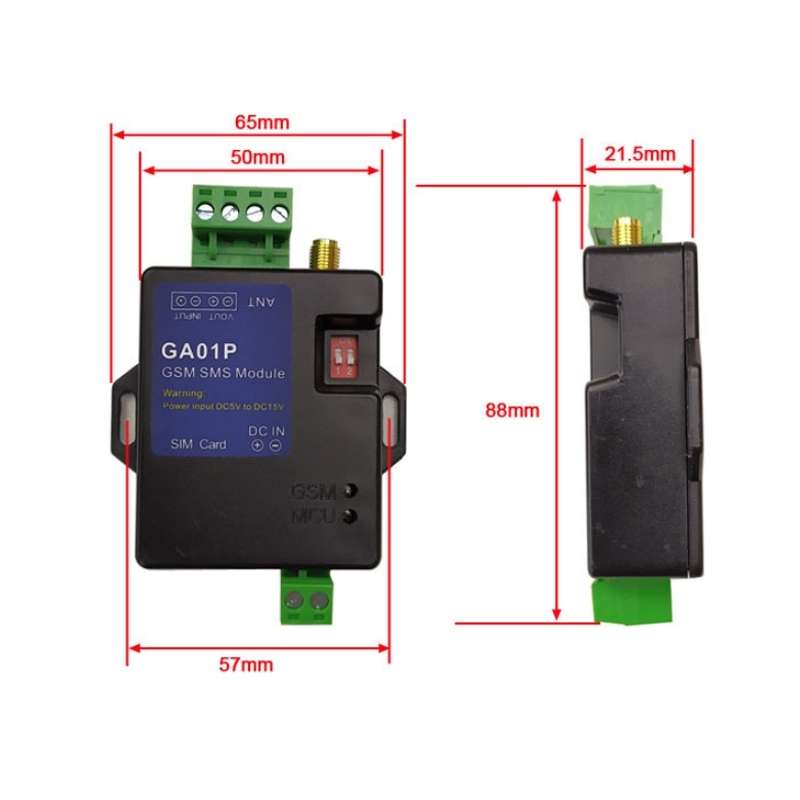

15. Dimensions: 65x88x21.5 mm
17. Weight: about 100 grams

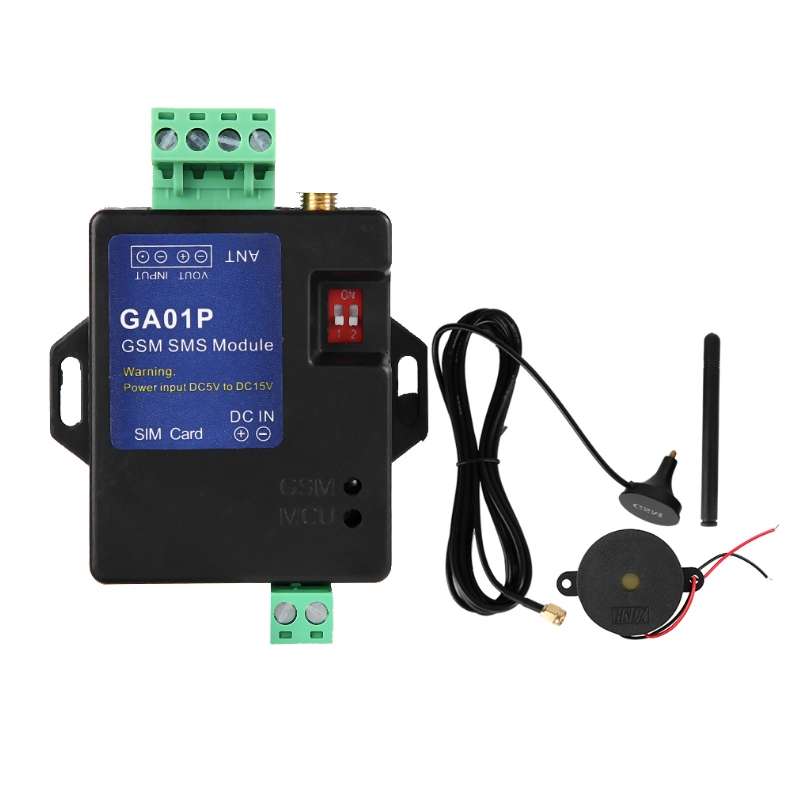

Packing list:
- GA01P SMS phone alarm x 1
- Antenna x 1
- Sound alarm x 1
