Gas Popup Panel / Popup Desk with 3pin Electrical Plug and HDMI, Displayport, Audio, RJ45 Network...

Gas Popup Panel / Popup Desk with 3pin Electrical Plug and HDMI, Displayport, Audio, RJ45 Networking & USB C (Hidden Conference HDMI Socket)

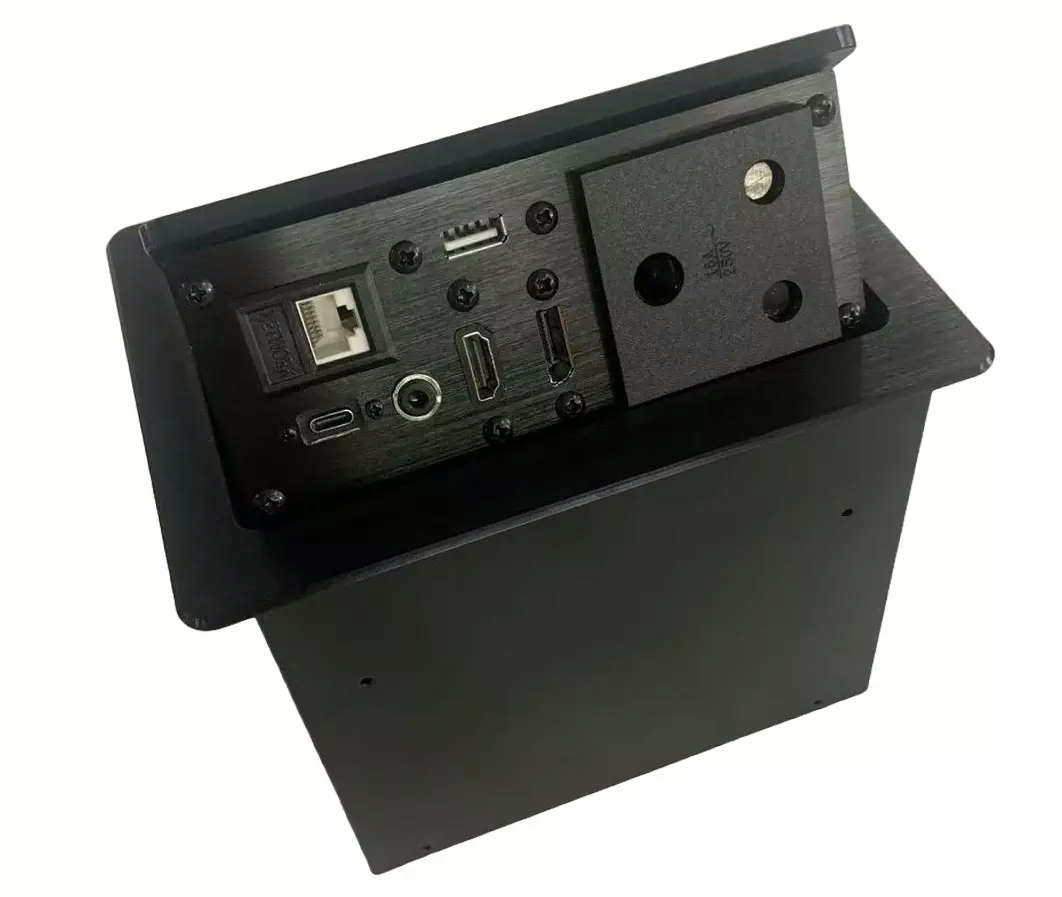

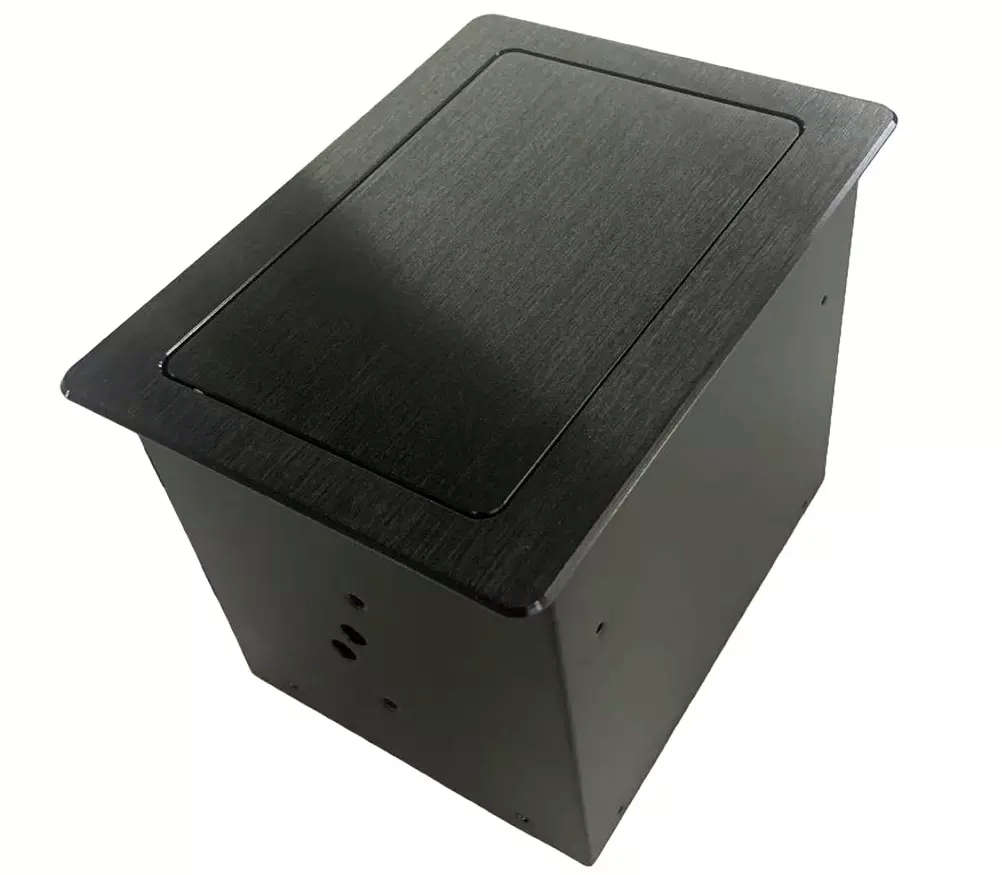

Gas Pop-ups also referred to as Popup Boxes / Popup Desks or Hidden Desktop Sockets are used to hide away cables in boardrooms, testing stations where multiple connections of Video & Audio is used and a clean installation is required of cabling. When installed the popup will be level with the table or wall and releases on push action to popup and have ready-to-connect adapters for most available video & audio sources as listed below. The connectors on the gas popup panel features coupler based connections (Female to Female Sockets) to easily connect laptops, tablets, Gaming Consoles, Blu-ray Players and any other sources with the outputs as specified below.

Specifications

• Colour : Black (as per product picture)
• 1 x 3pin ZA power socket (10 Amp, 2000W Max Power Usage)
• 1 x Data Cat6 RJ45 - Network connection at popup top & bottom of frame
• 1 x HDMI module - HDMI Video connection at popup top & bottom of frame | 4K 144hz Capable
• 1 x Displayport module - Displayport Video connection at popup top & bottom of frame | 4K 144hz Capable
• 1 x Audio 3.5mm jack module - 3.5mm Aux Stereo Left/Right Jack at popup top & bottom of frame
• 1 x USB A Data Module - Standard USB 2.0 Data Connection at popup top & bottom of frame
• 1 x USB C Data Module - USB Type C Data Connection at popup top & bottom of frame

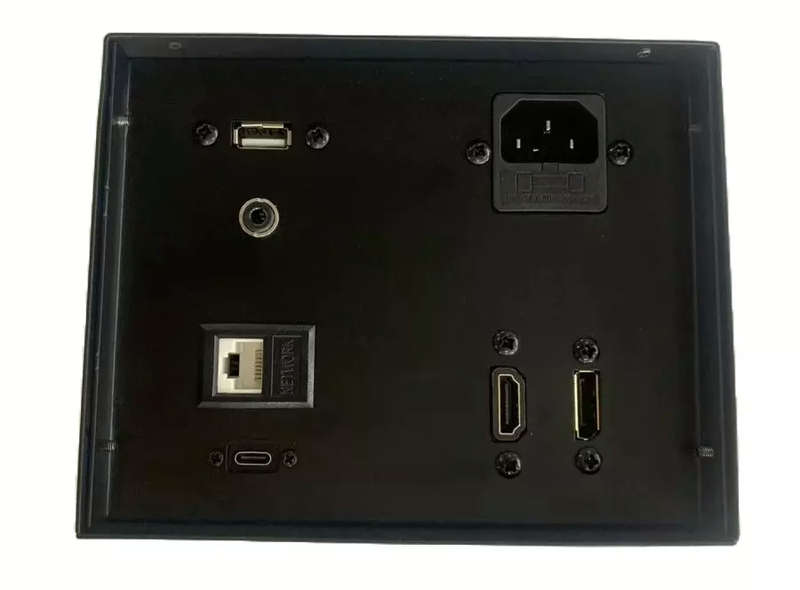

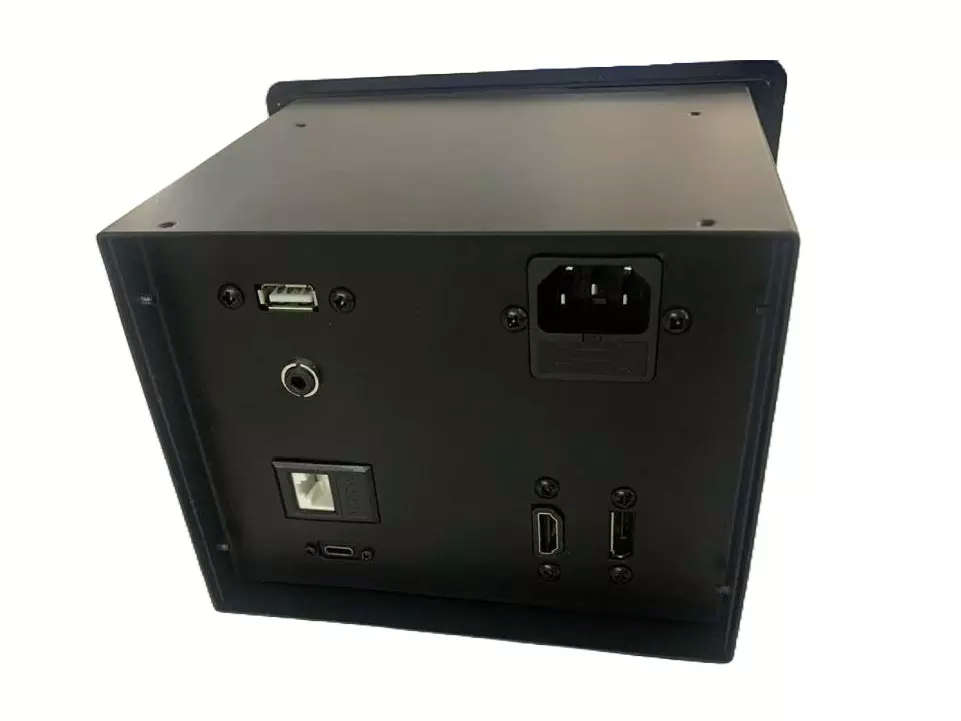

• 1 x IEC C14 power plug at bottom for 220V Power
• Power Connections : 3 pin South African 220v Power plug, rated current 10 Amp.
• Weight : 900g
• Panel Size : 176 x 131mm (Outer Plate resting on Table) - 152mm x 122mm ("Inner" into Table/Wall - This needs to be your cut size into table), Depth 130mm (minimum distance into wall / table)

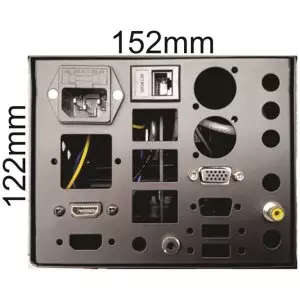

Inner Diameter

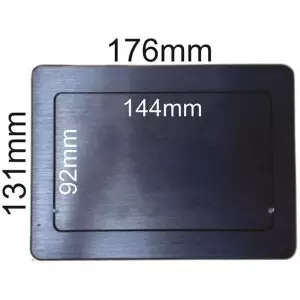

Outer Diameter
