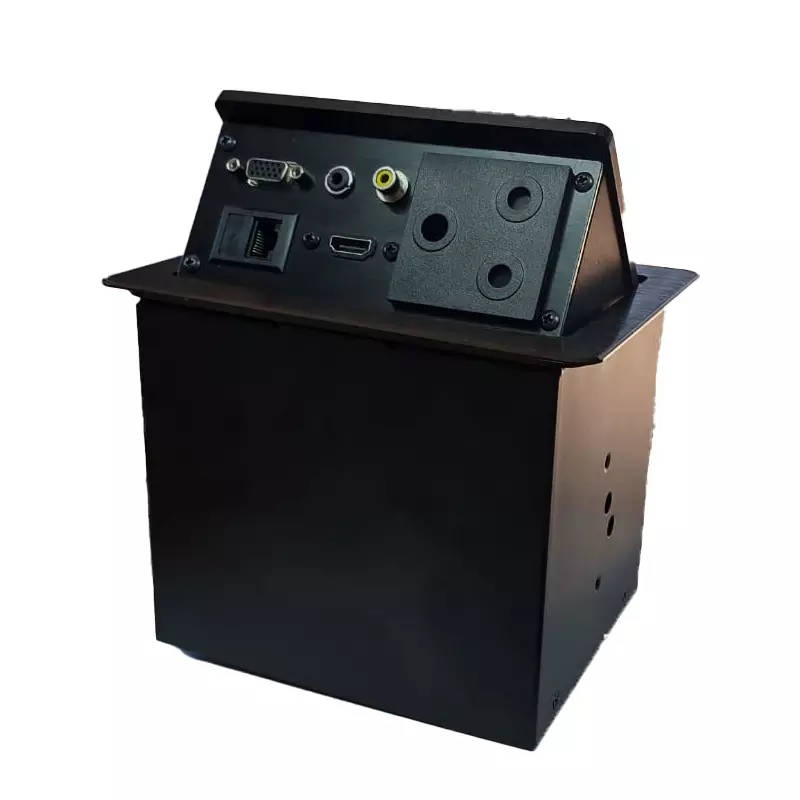

Gas Popup Panel / Popup Desk with 3pin Electrical Plug and HDMI, VGA, Audio, Composite & RJ45 Net...

Gas Popup Panel / Popup Desk with 3pin Electrical Plug and HDMI, VGA, Audio, Composite & RJ45 Networking (Hidden Conference HDMI Socket)

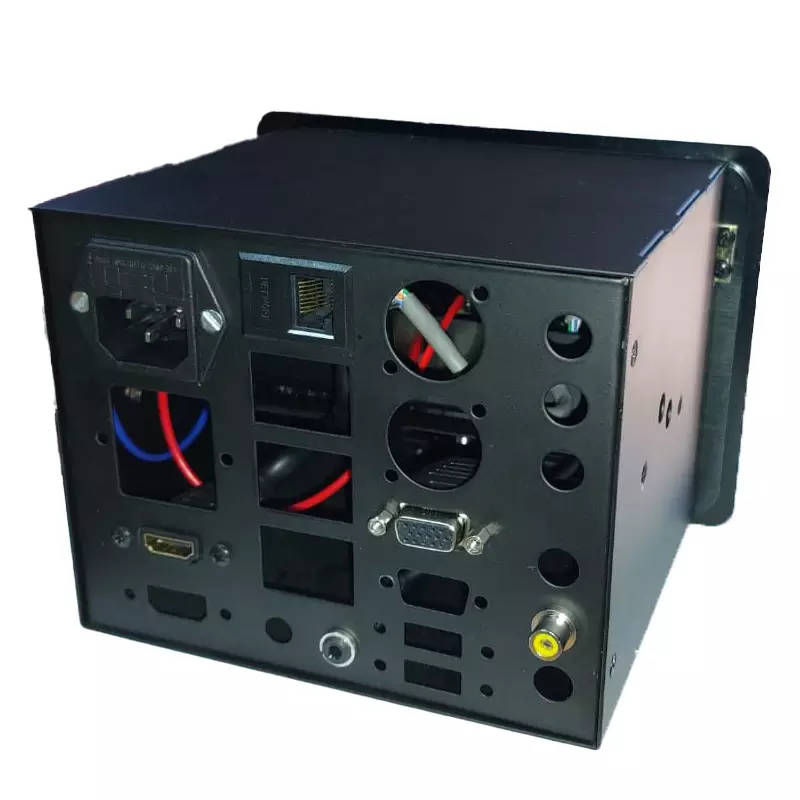

Gas Pop-ups also referred to as Popup Boxes / Popup Desks or Hidden Desktop Sockets are used to hide away cables in boardrooms, testing stations where multiple connections of Video & Audio is used and a clean installation is required of cabling. When installed the popup will be level with the table or wall and releases on push action to popup and have ready-to-connect adapters for most available video & audio sources as listed below. The connectors on the gas popup panel features coupler based connections (Female to Female Sockets) to easily connect laptops, tablets, DVD Players, Blu-ray Players, Gaming consoles and any other sources with the outputs as specified below.

Specifications

• Colour : Black (as per product picture)
• Fuse Installed : 250V max voltage between Live and Neutral to protect equipment on electrical plug. If electrical plug not working correctly please check that your fuse has not been blown
• Video Connections : HDMI Type A (Standard HDMI Socket), VGA Female connector, Composite Video (Yellow RCA Connector).
• Networking Connections : 1 x RJ45 Female Sockets
• Power Connections : 3 pin South African 220v Power plug, rated current 10 Amp.
• Weight : 900g

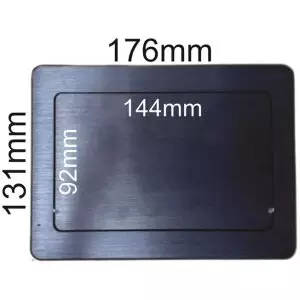

• Panel Size : 176 x 131mm (Outer Plate resting on Table) - 152mm x 122mm ("Inner" into Table/Wall - This needs to be your cut size into table), Depth 130mm (minimum distance into wall / table)
• Electrical Outlet 10 Amps / 220v (2000 Watt maximum power load)

Inner Diameter

Outer Diameter
