Name: GAV - Quick Coupler/Inserts Aro 6mm 2 Packaged - GAV - Quick Coupler/Inserts Aro 6mm 2 Packaged
SKU: 13857
Price: 149.00 ZAR
Availability: InStock

GAV - Quick Coupler/Inserts Aro 6mm 2 Packaged - GAV - Quick Coupler/Inserts Aro 6mm 2 Packaged

New

99 available

Indicative market price: R179.00

R149.00

17% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Toolhome419

83.94 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

13857

Bob Shop ID

689032584

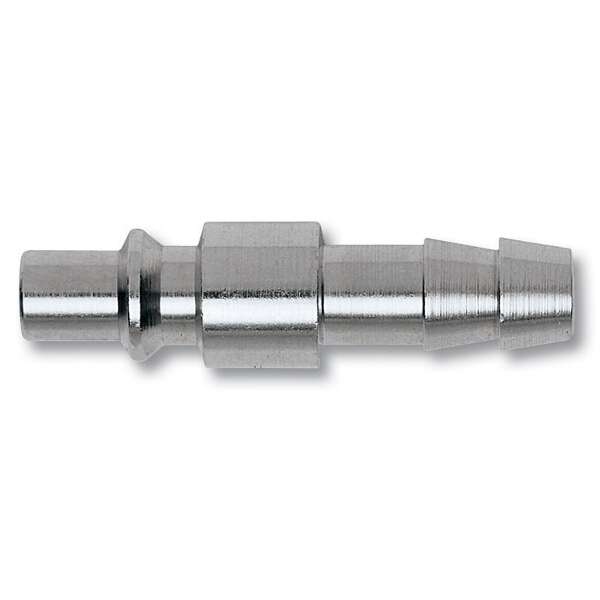

ARO Type Quick Coupler Insert for 6mm ID hose

GAV23C6MMP

[Packaged for display]

Male coupler

for 6mm ID hose
Barbed for good grip

Made in Italy

for 6mm ID hose

Extra Info

Coupler and Nipple standards explained

Universal couplers were developed to be used interchangeably between three of the most commonly used types of fittings (Industrial/Milton®, Tru-Flate®®, and ARO®). The ARO style connector is found in industrial maintenance facilities. Tru-Flate® is used in most automotive shops. The Industrial style is ubiquitous, especially in the home workshop.

Below are some abbreviations and terms used in the industry.

CH: Campbell Hausfeld.

This is a universal design and will fit most standards.

I Series:

Industrial. This plug design has been adopted by most coupler manufacturers. For this reason it is considered the industrial standard. No matter what the coupler looks like, if it mates with this plug, it is an "Industrial/Milton Interchange" design.

German Series:

This plug profile design is similar with US Industrial design, though, a little longer flat-bottomed "V"-shaped groove and its flow area is up to 2-1/2 times larger than US industrial interchange nipples.

A Series: ARO

ARO. This design is characteristic of the Aro-210 series, and requires a coupler of proper matching design. Although similar in appearance to the "Industrial/Milton Interchange" design, it can be easily distinguished because its pilot is longer and its ball groove is nearly round.

USA:

Universal / Milton (Industrial) / Tru-Flate® (Automotive) / ARO

European Type:

Universal type fits for the most popular interchanges including ORION, MILTON and ARO

Nitto Type:

Japanese standard. Also referred to as N Series and is interchangeable with Nitto Hi-Cupla type couplings

U Series: Universal Air Quick Connect Coupler

US Industrial (MIL-C-4109F), Automotive (Tru-Flate®), ARO 210, Lincoln Long-Stem style, Also Euro standard nipples. Universal couplers are designed to accept the most common styles with greater flow capacity than standard couplers. It makes an extremely flexible coupling that permits multiple series nipples to mate with one coupler.

T Series:

The Tru-Flate® Design is recognized by the extremely short pilot; however, it has the widest metal section between the groove and the pilot. The sealing surface on the end of the plug is wider than other interchanges, resulting in better sealing and longer seal life. The Tru-Flate® Design Coupler utilizes the tubular valve which supports the seal and allows more airflow at lower pressure drops than most competitive couplers. The protective collar guards against accidental disconnect.

L Series:

The "Lincoln Long-Stem" plug design is the most easily recognized and identified. The long 3/4" pilot is so distinctive it can't be confused with other designs. It will only mate with couplers of matching design and size.

S Series:

Schrader Twist-Lock design. Recognised and identified by a deep groove designed for toggle pawls. Designed to protect against accidental uncoupling.
